Description
Description

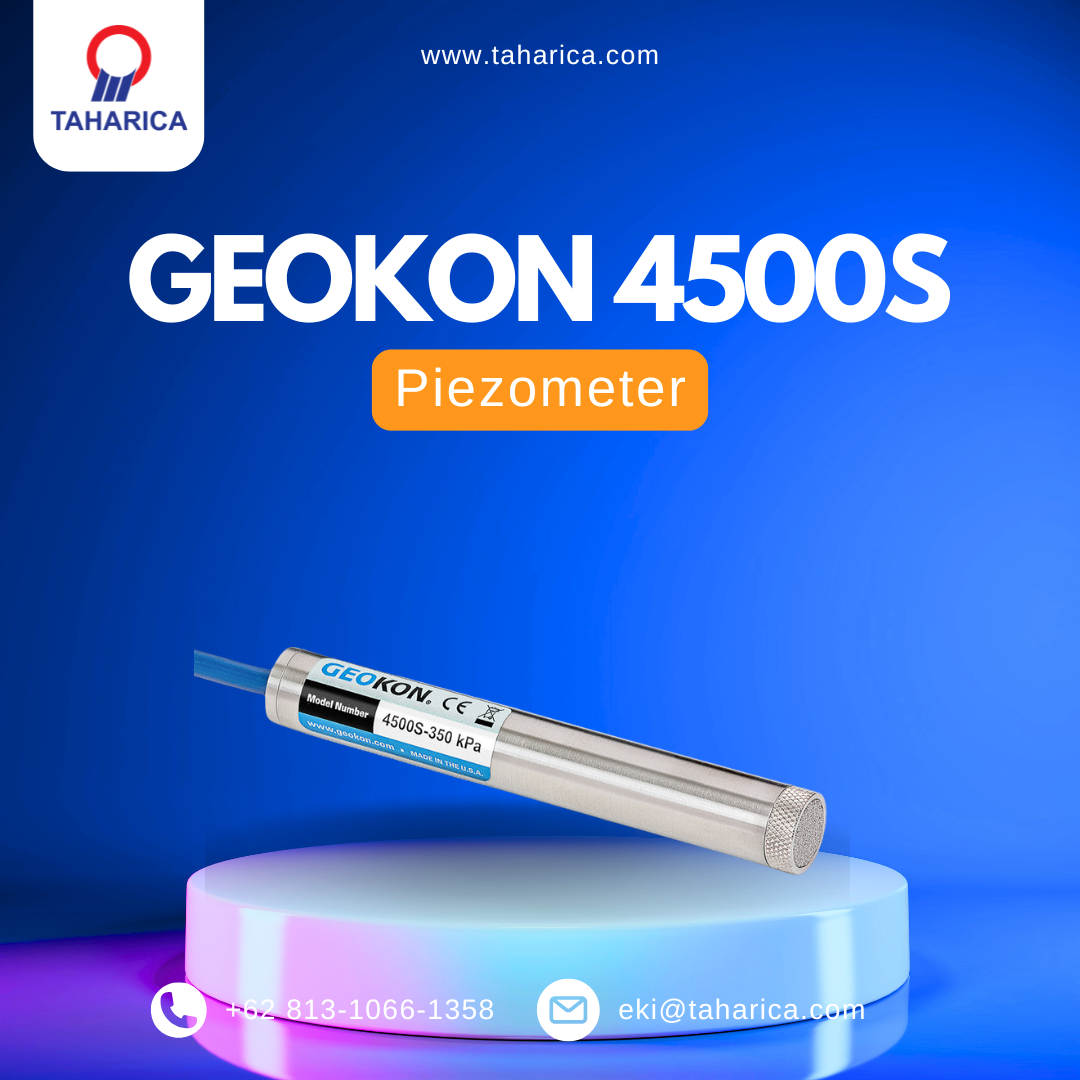

The Model 4500 Standard Piezometer is designed to measure fluid pressures such as ground water elevations and pore pressures when buried directly in embankments, fills, etc. Also for installation inside boreholes, observation wells and standard (>19 mm diameter) piezometer riser pipe. The Model 4500SH is designed with a heavy duty housing for pressures that exceed 3 MPa. The Model 4500AL is designed for low-pressure ranges. The vented version (ALV) provides automatic compensation for barometric pressure changes.
Specifications
Standard RangesÂ
4500SÂ | 350, 700 kPa; 1, 2, 3 MPa
4500SVÂ | 350, 700 kPa
4500SHÂ | 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20 MPa
4500AL(V)Â | 70, 170 kPa
4500SVÂ | 350, 700 kPa
4500SHÂ | 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20 MPa
4500AL(V)Â | 70, 170 kPa
Over Range
1.5 × rated pressure
Resolution
0.025% F.S. (minimum)
Accuracy
±0.1% F.S.
Linearity
<0.5% F.S. (±0.1% F.S. optional)
Temperature Range²
−20°C to +80°C
Length × Diameter
4500S | 133 × 19.1 mm
4500SV | 146 × 19.1 mm
4500SH | 194 × 25.4 mm
4500AL(V) | 133 × 25.4 mm
4500SV | 146 × 19.1 mm
4500SH | 194 × 25.4 mm
4500AL(V) | 133 × 25.4 mm
