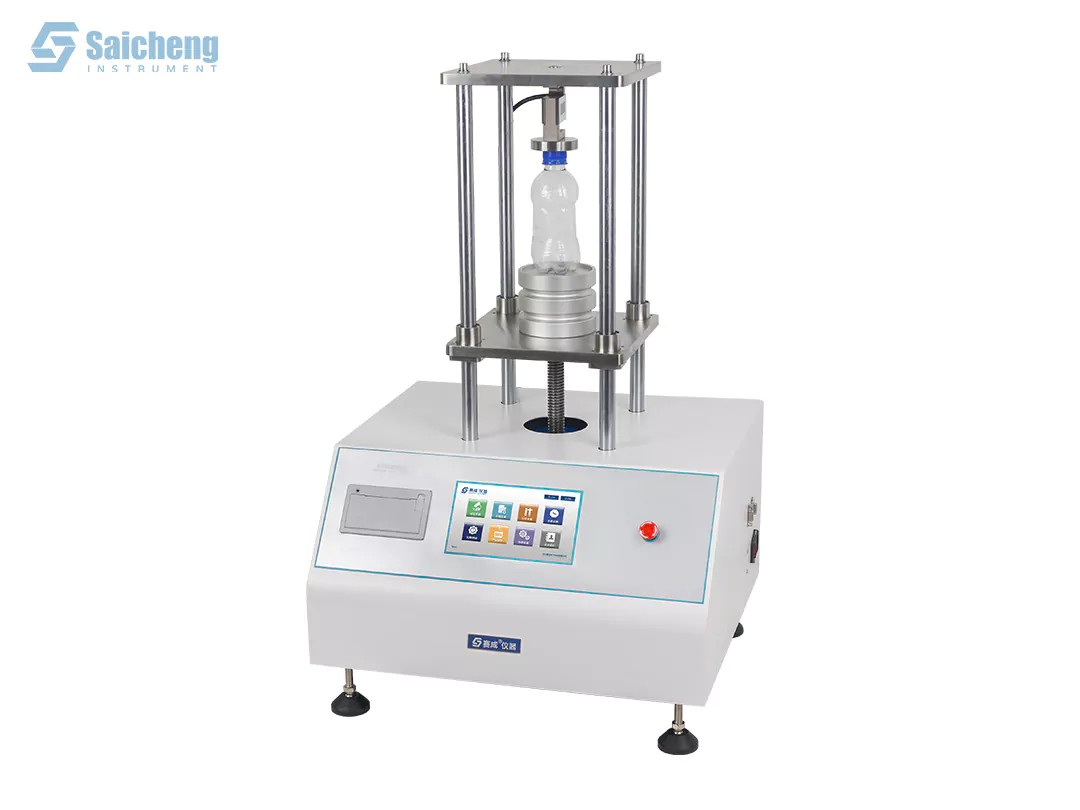

PET Bottle Vertical / Top Load Tester VP-1000
Saicheng

PET Bottle Vertical / Top Load Tester VP-1000

Overview

Alat uji beban vertikal/atas botol PET untuk menguji ketahanan beban atas dan ketahanan beban samping badan wadah PET, mensimulasikan beban penutupan dan penumpukan.

Fitur Utama

  • Kapasitas 1 kN (standar); 3, 5, dan 10 kN dapat dikustomisasi, akurasi 0,5% FS
  • Kecepatan uji 1–500 mm/menit tanpa tahap (stepless)
  • Ruang uji diameter 0–150 mm dan tinggi 140–300 mm (dapat dikustomisasi)
  • Mode uji kustom hingga 4 pengaturan tekanan dan waktu tahan
  • Proteksi over-travel dan overload, reset posisi otomatis, memori saat daya mati
  • Rangka stainless steel dan aluminium; layar sentuh 7 inci; USB dan perangkat lunak analisis data
Tanya via WhatsApp
Merk
Saicheng
Kategori
Strength & Durability Tester

Detail Produk

Specification Value
Specification
Test Range 1 kN (standard); 3 kN, 5 kN, 10 kN (customization is available)
Accuracy 0.5% FS
Resolution 0.1 N
Test Speed 1 ~ 500 mm/min (adjustable)
Sample Size (test space) Diameter 0 ~ 150 mm; height 140 ~ 300 mm (customization is available)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 500 mm (W) x 440 mm (D) x 750 mm (H)
Net Weight 40 kg
Test Standards ASTM D2659, GB/T 17200-2008, GB/T 10440-2008, QB/T 1868-2004, QB/T 2357-1998, QB/T 2665-2004, BB/T 0044-2007
Configuration
Standard Instrument, micro printer, pressure-bearing fixture
Optional Customized fixtures
