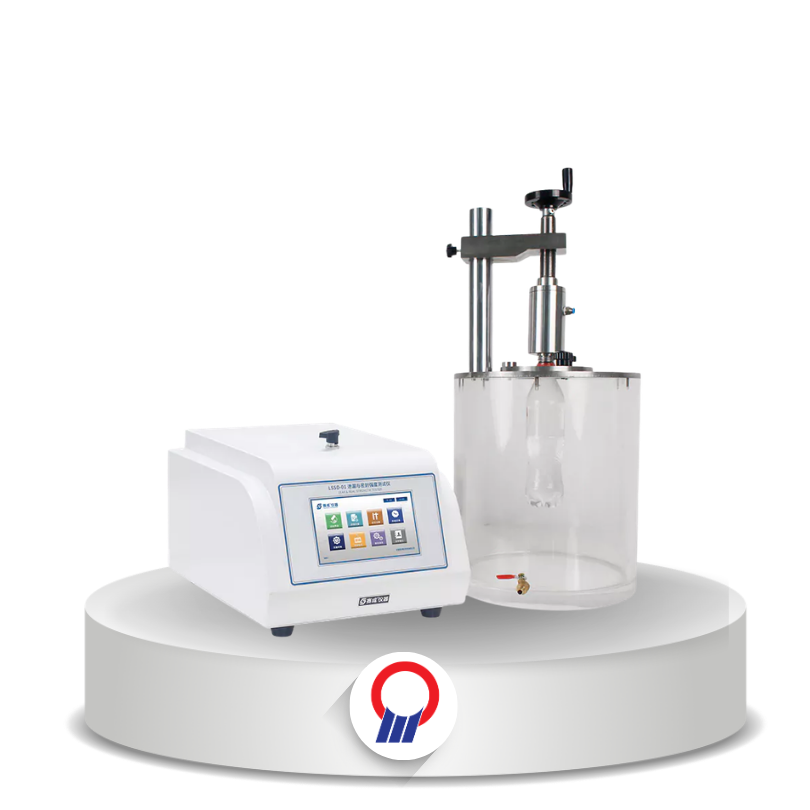

PET Bottle Burst Tester NY-02H
Saicheng

PET Bottle Burst Tester NY-02H

Overview

Alat uji ketahanan ledakan (burst) dan creep botol PET, penting bagi lembaga penelitian, laboratorium, dan produsen botol.

Fitur Utama

  • Dua mode uji: burst test dan creep test
  • Rentang tekanan 0–1,6 MPa dengan akurasi pengukuran ±0,5%
  • Pompa booster SMC bawaan sampai 1,6 MPa
  • Metode penusukan tutup botol PET dengan tekanan positif
  • Kamar uji dengan pintu putar
  • Layar sentuh warna 7 inci, printer mikro, dan USB
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification
Pressure Range 0 ~ 1.6 MPa
Measurement Accuracy ±0.5%
Size of Specimen Height ≥250 mm, diameter ≥90 mm, bottle mouth size 26 mm (customization available)
Gas Pressure 0.8 MPa (outside of supply)
Port Size Φ6 mm PU tube
Instrument Dimension 400 mm (W) x 400 mm (D) x 270 mm (H)
Test Chamber Dimension 360 mm (Φ) x 800 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 10 kg
Test Chamber Weight 40 kg
Test Standards ISO 11607-2, ASTM F1140, ASTM F2054, GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1868, QB/T 1871
Configuration
Standard Instrument, micro printer, test chamber
Optional Professional software, 485 communication cable, fixture for sealing cap
