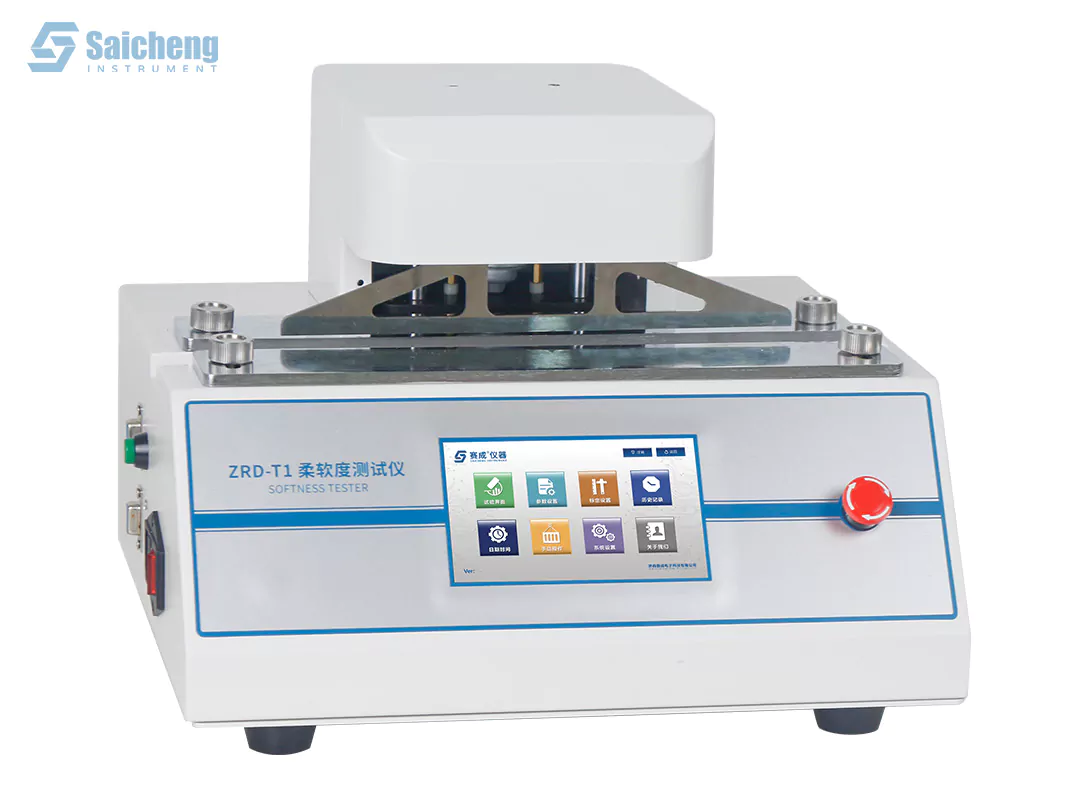

Paper Softness Tester ZRD-T1
Saicheng

Paper Softness Tester ZRD-T1

Overview

Alat uji kelembutan kertas untuk mengukur kelembutan, kekakuan, dan kekokohan kertas tisu, kertas toilet, kain bukan tenunan, film poliolefin, tekstil, dan bahan lembaran lainnya.

Fitur Utama

  • Rentang uji 10–1.000 mN dengan resolusi 0,1 mN
  • Lebar celah platform 5; 6,35; 10; dan 20 mm (±0,05 mm)
  • Langkah kepala ukur 12 ±0,5 mm dan kedalaman indentasi probe 8 ±0,5 mm
  • Sensor gaya presisi tinggi dengan proteksi overload
  • Layar sentuh warna 7 inci, printer mikro, dan USB
  • Mengacu ASTM D2923, ASTM D6828, TAPPI T498, dan GB/T 8942
Tanya via WhatsApp
Merk
Saicheng
Kategori
Surface & Handling Tester

Detail Produk

Specification Value
Specification
Test Range 10 ~ 1,000 mN
Resolution 0.1 mN
Measuring Head Stroke 12 ±0.5 mm
Probe Indentation Depth 8 ±0.5 mm
Platform Slit Width 5 mm, 6.35 mm, 10 mm, 20 mm (±0.05 mm)
Instrument Dimension 310 mm (W) x 350 mm (D) x 262 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 15 kg
Test Standards ASTM D2923, ASTM D6828, TAPPI T498, GB/T 8942; ISO 12625-9 (optional add-on)
Configuration
Standard Instrument, micro printer, test fixture
