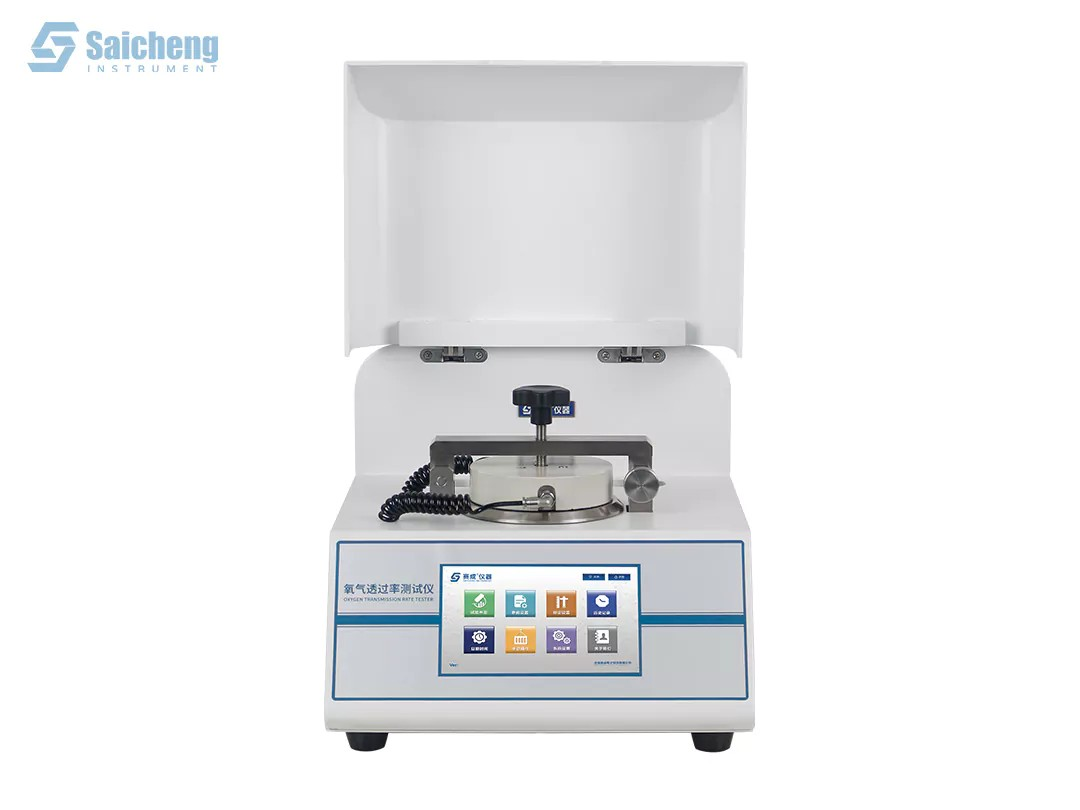

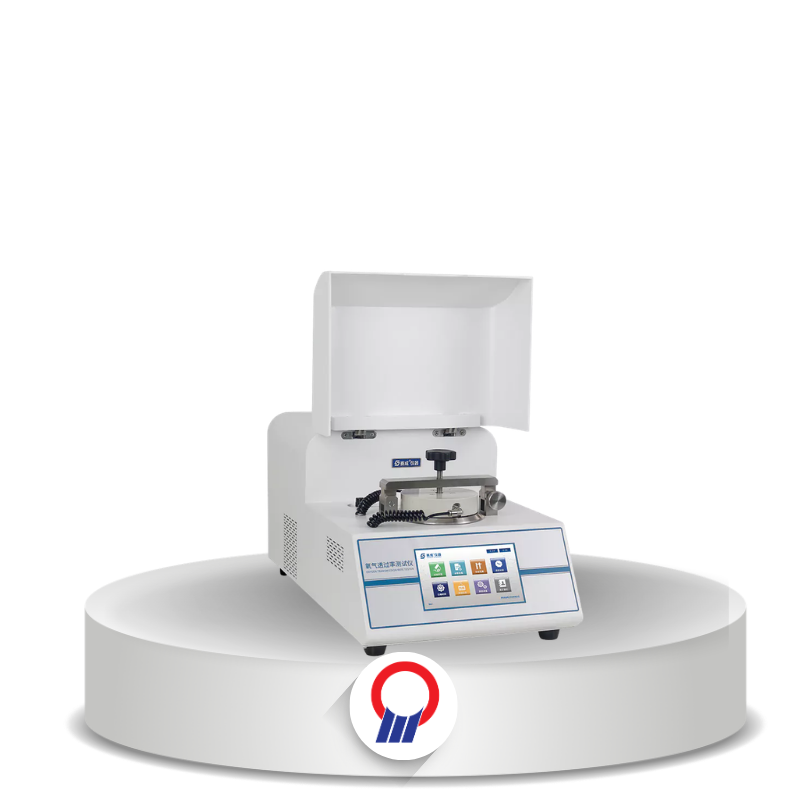

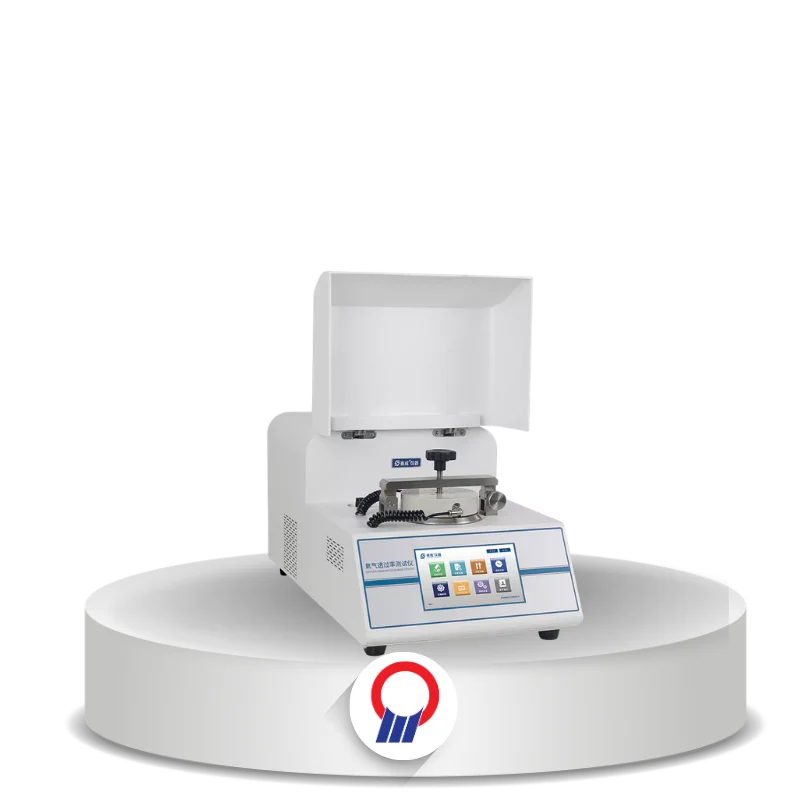

Alat uji laju transmisi oksigen (OTR) berbasis sensor coulometrik untuk bahan kemasan, dengan satu spesimen per pengujian dan layar sentuh 7 inci.
| Specification | Value |
|---|---|
| Film Test | |
| Test Range | 0.05 ~ 200 cm³/(m²·day) (standard); 0.05 ~ 28,800 cm³/(m²·day) (optional), standard area 50 cm² |
| Resolution | 0.001 cm³/(m²·day) |
| Temperature Range | 10 ~ 60°C (optional temperature control) |
| Temperature Accuracy | ±0.1°C |
| Package Test (Optional) | |
| Test Range | 0.00025 ~ 1 cm³/(pkg·day) (standard); 0.00025 ~ 144 cm³/(pkg·day) (optional) |
| Resolution | 0.0001 cm³/(pkg·day) |
| Temperature Range | Ambient ~ 60°C (optional) |
| Temperature Accuracy | ±0.1°C |
| General | |
| Test Method | Coulometric sensor method |
| Number of Specimens | 1 |
| Sample Size | 97 mm x 97 mm (customization available) |
| Sample Thickness | ≤3 mm |
| Test Area | 50 cm² |
| Test Gas | 99.5% oxygen (not included in supply) |
| Carrier Gas | 99.999% nitrogen (not included in supply) |
| Port Size | 1/8-inch metal tubing (gas supply); Φ4 mm PU tubing (oxygen supply) |
| Instrument Dimension | 370 mm (W) x 700 mm (D) x 300 mm (H) |
| Power Supply | AC 100-240V 50/60Hz (can be changed to local requirement) |
| Net Weight | 36 kg |
| Test Standards | ASTM D3985, ASTM F1307, ASTM F1927, ISO 15105-2, DIN 53380-3, JIS K7126-2-B, GB/T 19789, GB/T 31354, YBB 00082003-2015 |
