Inaproc

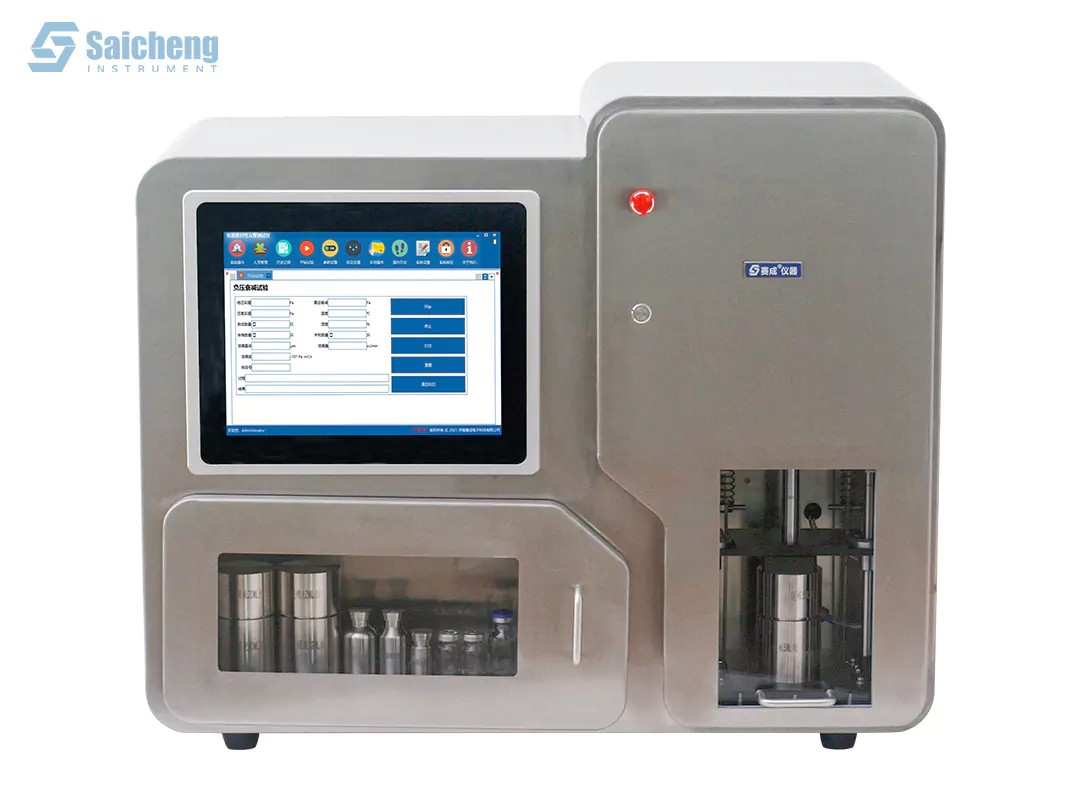

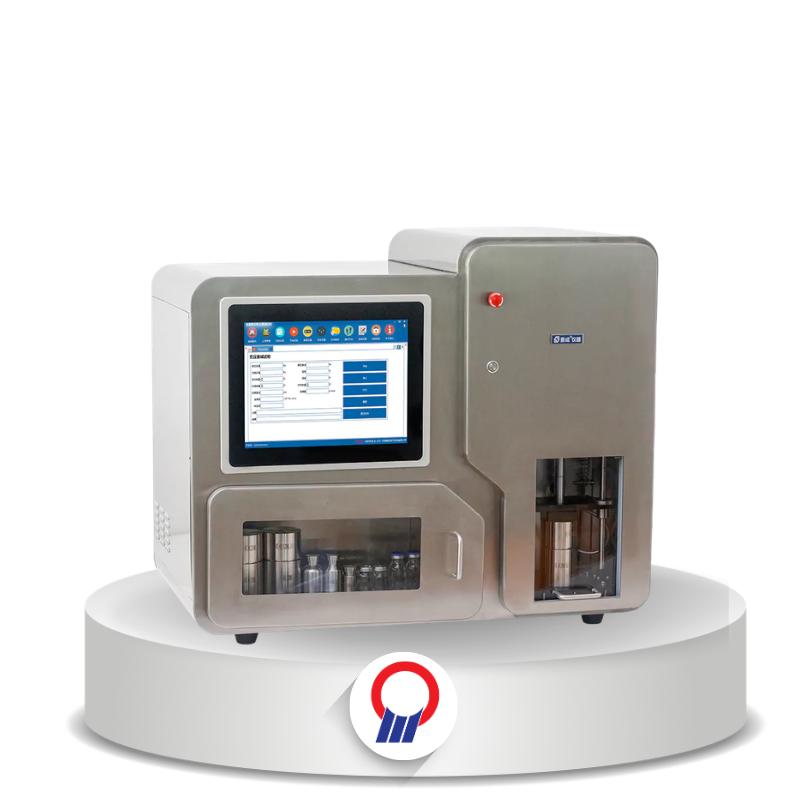

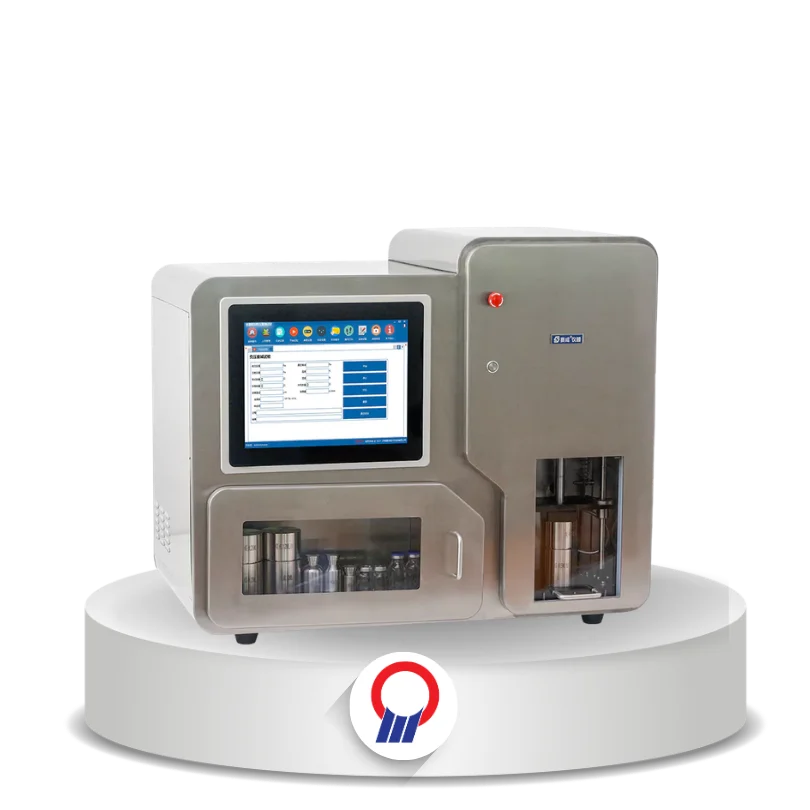

Non-destructive Leak Tester MK-2000
Saicheng

Non-destructive Leak Tester MK-2000

Overview

Penguji kebocoran non-destruktif (Container Closure Integrity Tester/CCIT) dengan teknologi penurunan vakum dan penurunan tekanan untuk memenuhi persyaratan metode uji kebocoran kemasan farmasi.

Fitur Utama

  • Metode vacuum decay dan pressure decay, sistem dual tri-sensor
  • Hasil kualitatif (lulus/gagal) dan kuantitatif (volume, laju, dan diameter lubang kebocoran)
  • Kamar uji stainless steel 316 yang dapat dikustomisasi sesuai spesimen
  • Layar sentuh tablet 10 inci (Windows 10), printer mikro, dan antarmuka USB
  • Sesuai ASTM F2338-13, USP <1207>, dan YY/T 0681.18-2020
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification (MK-2000H page)
Operator Interface 10 inch color touch screen
Test Method Vacuum decay and pressure decay
Vacuum Degree <10 Pa
Accuracy 0.25% FS
Measurement Range 1 ~ 2 µm
Test Sensitivity Down to 0.01 cc/min (approximate hole size 1 micron)
Test Chamber Customizable according to the specimen; 316 stainless steel
Testing System Dual system tri-sensor technology
Test Results Qualitative: pass or fail; quantitative: leakage volume, leakage rate, leakage hole diameter
Gas Pressure 0.4 MPa ~ 0.6 MPa (outside of supply scope)
Port Size Φ6 mm PU tubing
Instrument Dimension 650 mm (L) x 360 mm (W) x 590 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 40 kg
Test Standards ASTM F2338-13, USP <1207>, YY/T 0681.18-2020
Configuration
Standard Instrument, micro printer, test chamber
Optional Calibrated flow meter, customized test chamber, positive specimen, negative specimen
