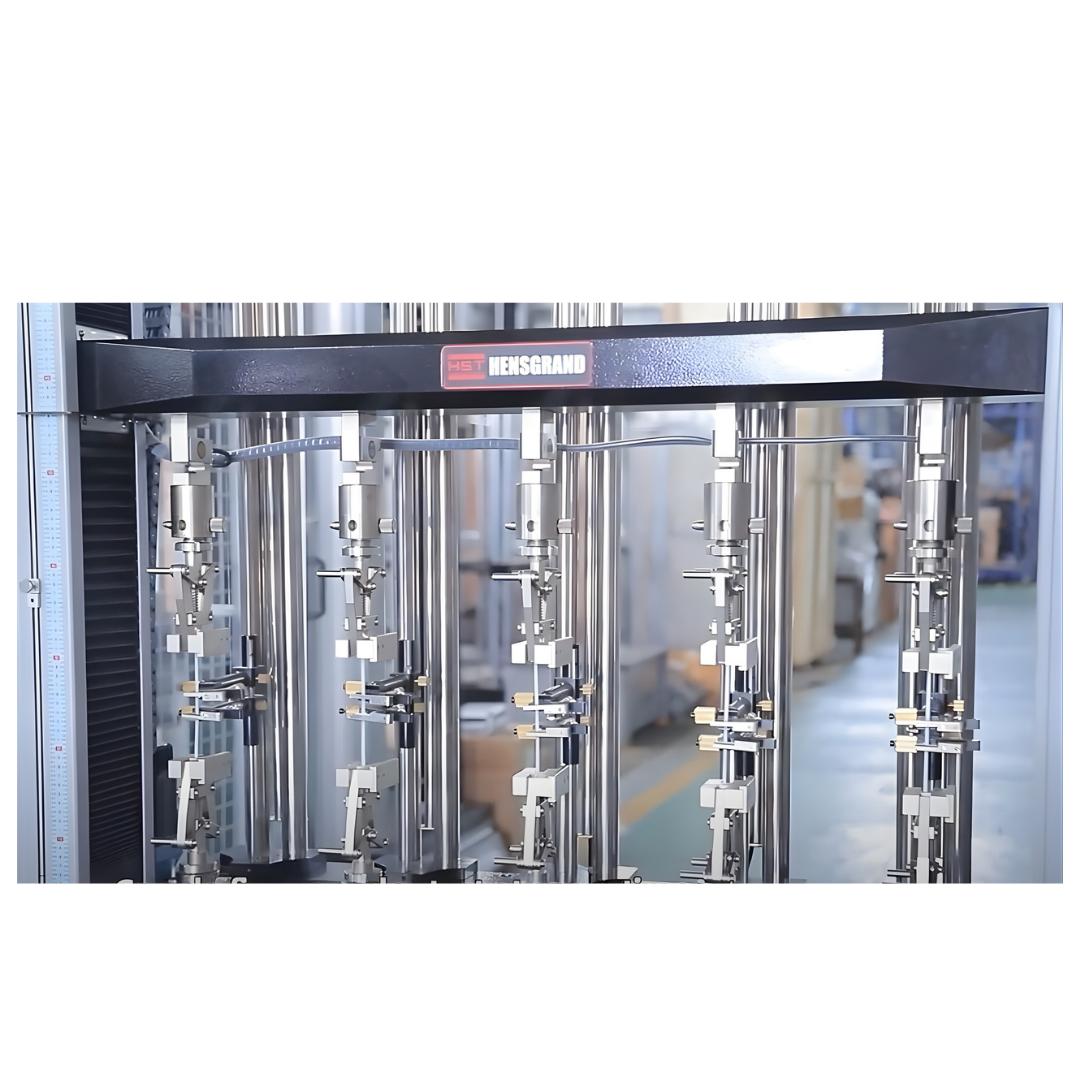

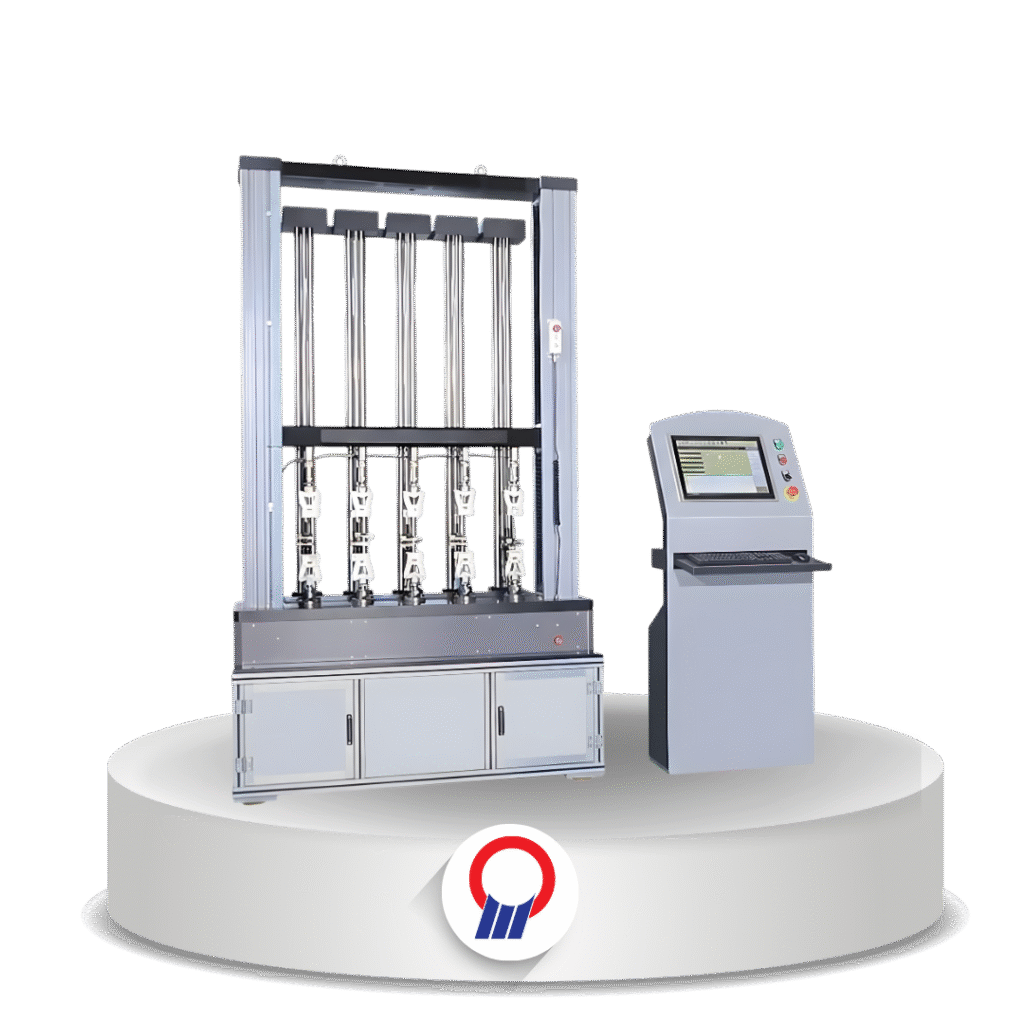

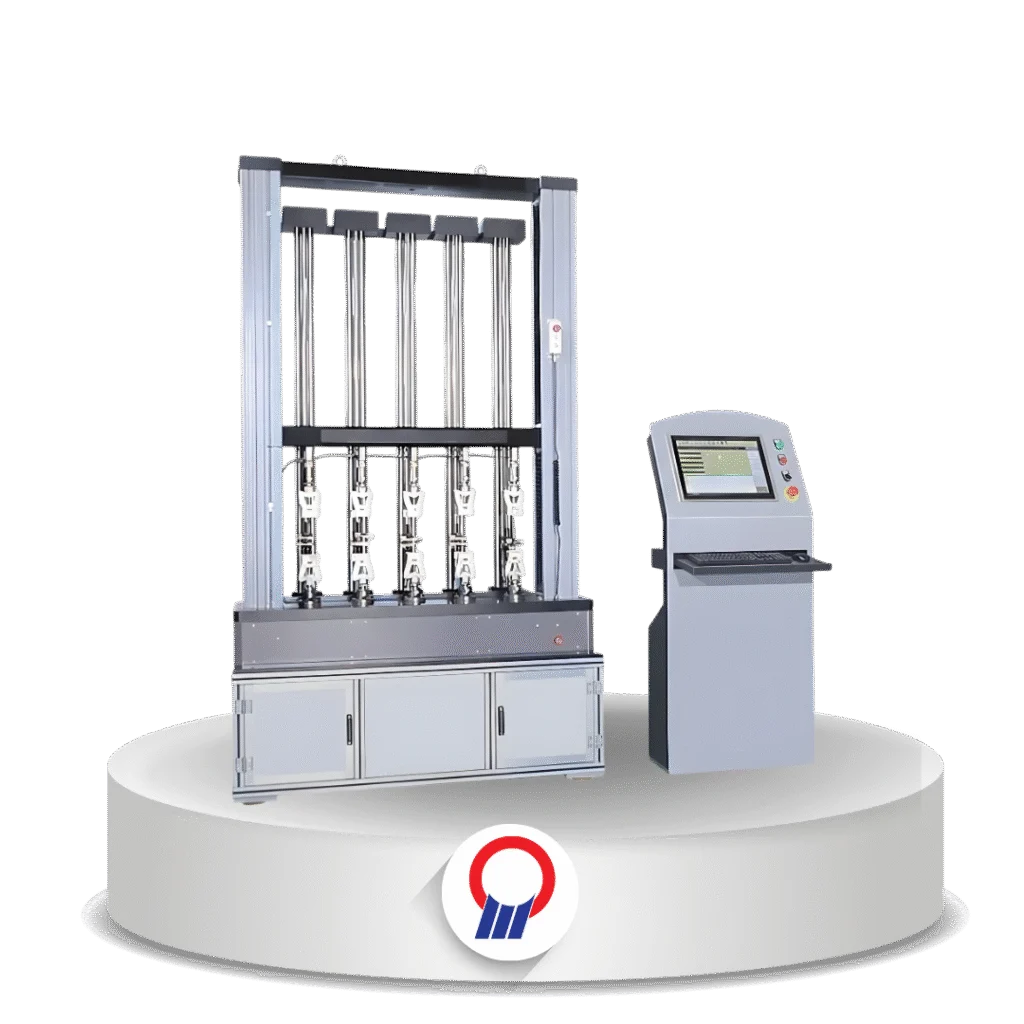

Multi-station Electronic Universal Testing Machine
HST

Multi-station Electronic Universal Testing Machine

Overview

Mesin uji universal elektromekanis multi-stasiun (WDW-E-5 series, 10 sampai 100 kN) berkontrol mikrokomputer dengan perangkat lunak Testexpert.

Fitur Utama

  • Empat model: 10, 20, 50, dan 100 kN
  • Kelas akurasi 0,5; rentang gaya 0,4–100% FS; resolusi 1/500.000 FS
  • Rentang kecepatan 0,005–500 mm/menit; resolusi perpindahan 0,06 µm
  • Lebar uji efektif 1.000 mm dan ruang uji efektif 820 mm
  • Balok dipandu batang pemandu presisi dengan kekakuan tinggi
  • Standar GB/T 16491, GB/T 2611, dan JJG 475
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-10E-5, WDW-20E-5, WDW-50E-5, WDW-100E-5
Max. Load 10, 20, 50, 100 kN
Load Accuracy Class 0.5
Load Range 0.4% ~ 100% FS
Relative Error of Test Force Indication ±0.5%
Load Resolution 1/500000 FS
Displacement Rate Adjustment Range 0.005 ~ 500 mm/min
Displacement Resolution 0.06 µm
Relative Error of Displacement Rate Within ±0.5%
Effective Test Width 1000 mm
Effective Test Space 820 mm
Main Engine Dimensions 1505 x 660 x 1750 mm
Power Supply AC 220V ±10%, 50Hz, 1 kW
Main Engine Weight About 800 kg
Standards GB/T 16491, GB/T 2611, JJG 475
Features
Software Testexpert
Test Types Tensile, compression, bending, shearing, peeling, tearing
Application Fields Plastics, metals, automotive, building materials, textiles, paper and board, food and packaging, composite materials
