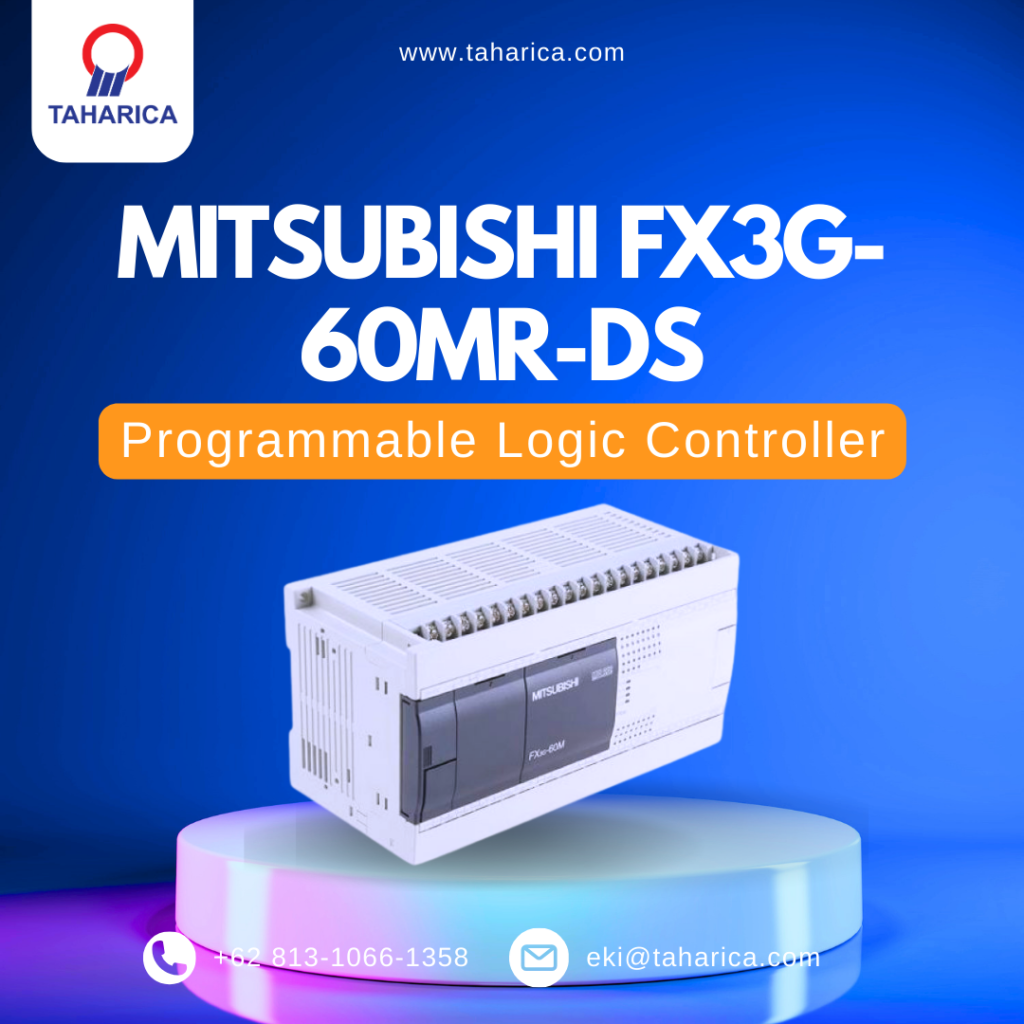

Mitsubishi FX3G-60MR-DS

Mitsubishi FX3G-60MR-DS

Categories , Tag Brand:

Buy Now Here

Description

Features:

  1. Compact Yet Powerful

    • Combines 60 I/O points in a compact form factor ideal for space-constrained applications.

  2. Reliable Relay Outputs

    • 24 relay outputs capable of switching both AC and DC loads.

  3. Fast Processing

    • 0.21 μs execution speed for basic instructions ensures quick response.

  4. Flexible Expansion

    • Supports up to 8 expansion modules (analog, communication, etc.).

  5. Dual Programming Ports

    • Both USB and RS-422 ports for convenient programming.

  6. No Battery Required

    • EEPROM memory retains program without battery backup.

  7. Advanced Instructions

    • Supports PID, floating-point arithmetic, and data processing instructions.

  8. Easy Maintenance

    • Removable terminal blocks simplify wiring and maintenance.

  9. Comprehensive Diagnostics

    • LED indicators for power, run status, and errors.

  10. Wide Power Supply Range

    • Operates on 100-240V AC input, suitable for global use.

Specification

nput Specifications

  • Input Type: Sink/Source (configurable in groups of 8)

  • Input Voltage: 24V DC ±10%

  • Input Current: 6mA (24V DC)

  • ON/OFF Response Time: 10ms max (can be adjusted via software)

4. Output Specifications

  • Output Type: Relay (Mechanical Contact)

  • Max Switching Voltage: 250V AC/30V DC

  • Max Switching Current: 2A per point

  • Max Switching Frequency: 1800 operations/hour

  • Contact Life: 100,000 operations (at resistive load)

5. Communication

  • Built-in Ports:

    • 1x RS-422 (for programming)

    • 1x USB (for programming)

  • Optional Communication Cards:

    • FX3G-232-BD (RS-232)

    • FX3G-485-BD (RS-485)

    • FX3G-422-BD (RS-422)

6. Expansion Capability

  • Max Expansion Modules: 8 units (FX3G series expansion I/O, special function blocks)

  • Max I/O Points: 384 points (including main unit)

7. Environmental Conditions

  • Operating Temperature: -10°C to +55°C

  • Storage Temperature: -25°C to +75°C

  • Humidity: 10-90% RH (non-condensing)

  • Vibration Resistance: 10-55Hz, 0.075mm amplitude

8. Physical Dimensions

  • Size: 150mm (W) × 90mm (H) × 87mm (D)

  • Weight: Approx. 1.2kg
