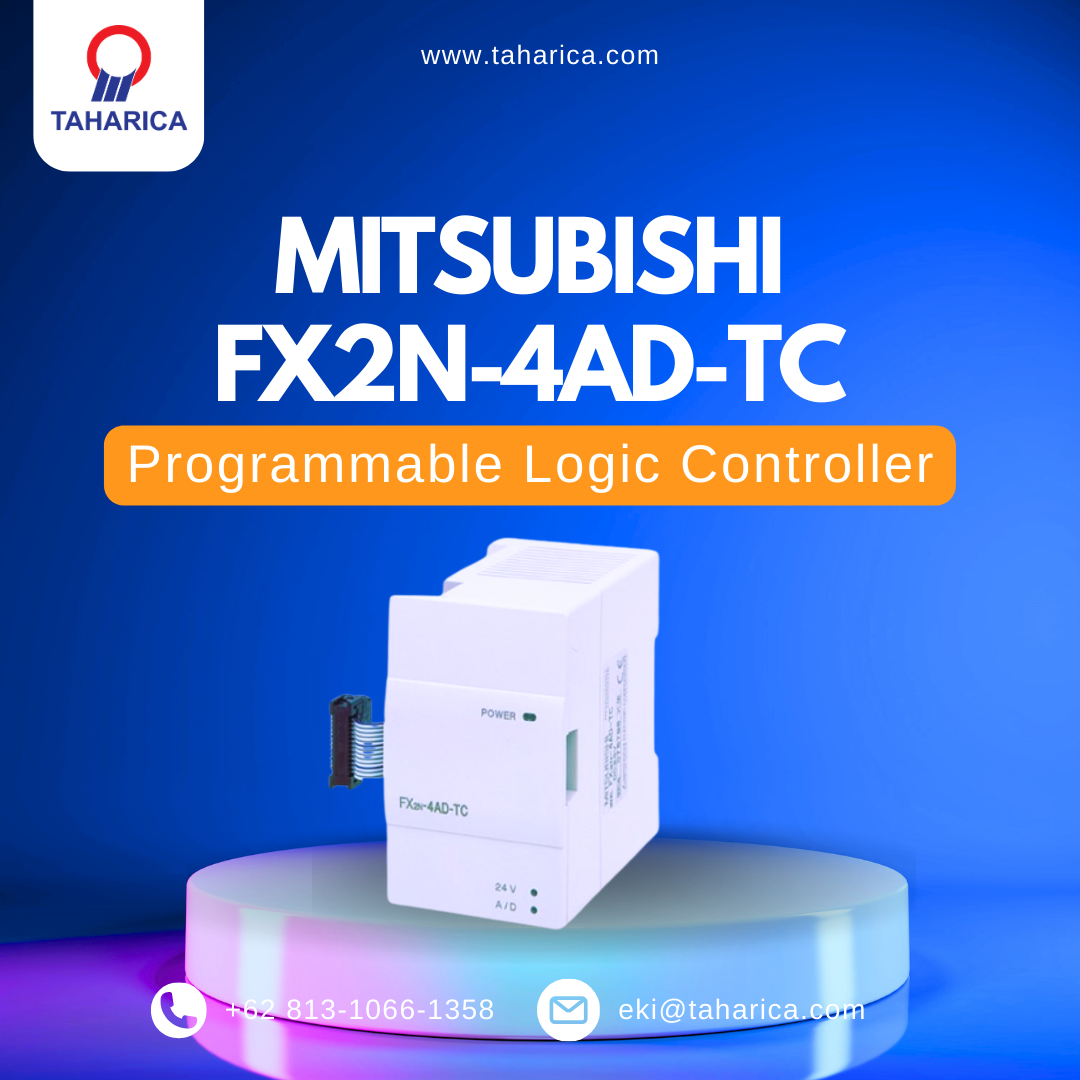

Features:
-
High-Precision Thermocouple Input
-
Supports K-type & J-type thermocouples with 0.1°C resolution.
-
-
4 Isolated Channels
-
Each channel can be independently configured for K or J type.
-
-
Built-in Cold Junction Compensation (CJC)
-
Automatically compensates for ambient temperature errors.
-
-
Wide Temperature Range
-
Measures from -100°C to +1200°C (K-type).
-
-
Fast Sampling & Conversion
-
240 ms per channel (all 4 channels update in ~1 sec).
-
-
Error Detection & Diagnostics
-
Detects open-circuit, out-of-range, or thermocouple disconnection.
-
-
LED Status Indicators
-
POWER, RUN, ERROR LEDs for easy troubleshooting.
-
-
Easy PLC Integration
-
Uses FROM/TO instructions in Mitsubishi PLC programming.
-
-
GX Works2/Developer Support
-
Configured via Mitsubishi GX Developer or GX Works2.
-
Specification
Input Specifications
-
Input Channels: 4 channels (individually configurable)
-
Supported Thermocouple Types:
-
K-type (K), J-type (J) (selectable per channel)
-
-
Temperature Range:
-
K-type: -100°C to +1200°C
-
J-type: -100°C to +600°C
-
-
Resolution: 0.1°C (for K/J types)
-
Accuracy: ±1% of full scale
-
Conversion Speed: 240 ms/channel (all 4 channels: ~15 ms × 4)
3. Cold Junction Compensation (CJC)
-
Built-in CJC Sensor: Yes (automatic ambient temp. compensation)
4. Power Supply
-
Operating Voltage: DC 5V (from PLC) + DC 24V (external)
-
Power Consumption: 30 mA (5V internal), 50 mA (24V external)
5. Environmental Conditions
-
Operating Temp.: -10°C to +55°C
-
Humidity: 10–90% RH (non-condensing)
6. Dimensions & Weight
-
Size: 55 mm (W) × 90 mm (H) × 87 mm (D)
-
Weight: Approx. 300g
7. Wiring & Connections
-
Terminal Type: Screw terminal block (M3)
-
Cable: AWG 22–16 (0.3–1.25 mm²), shielded cable recommended
