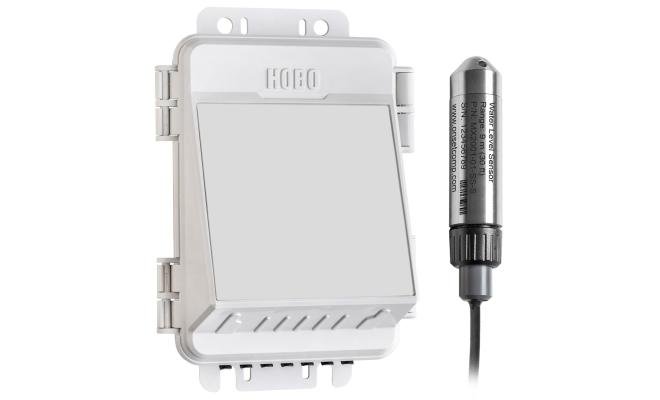

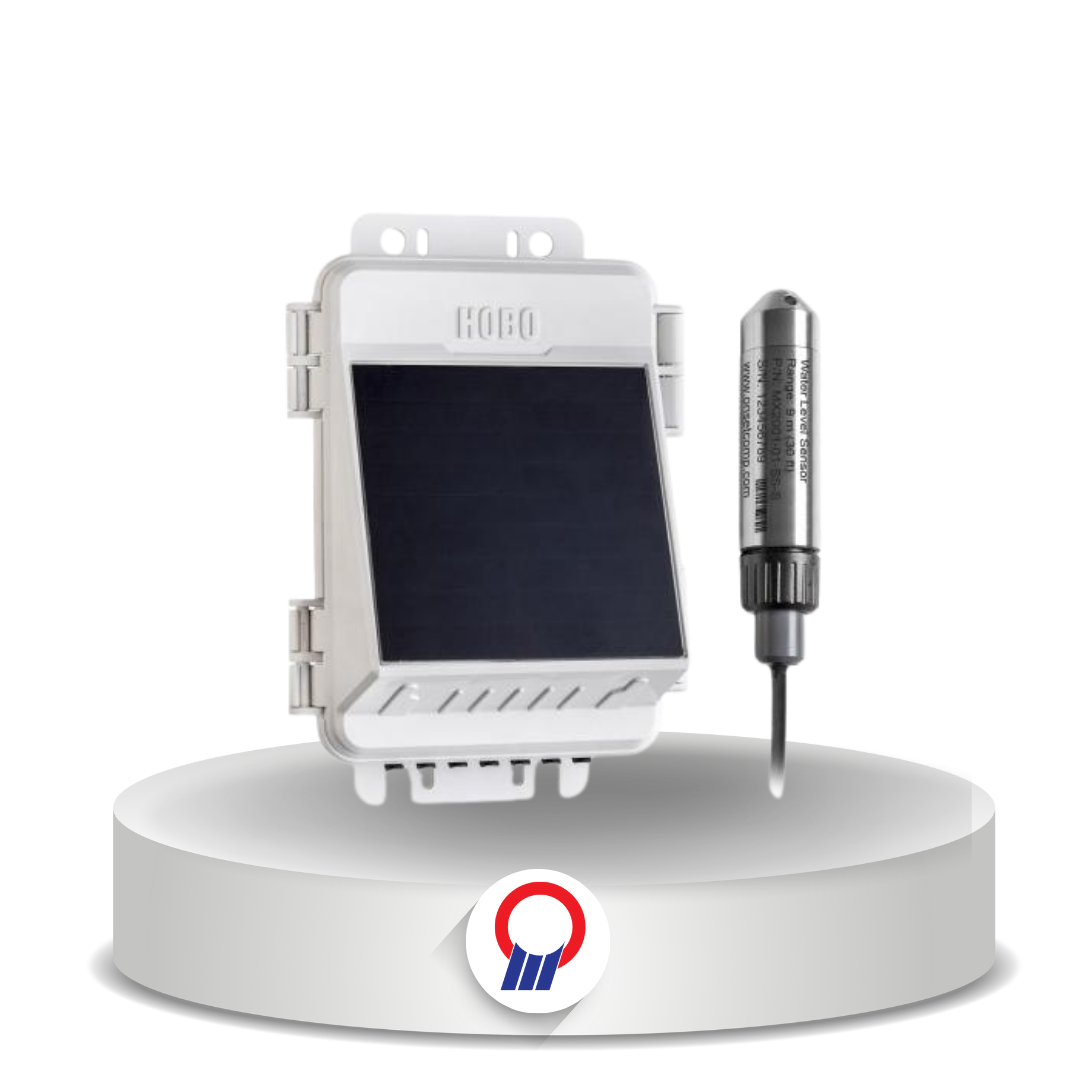

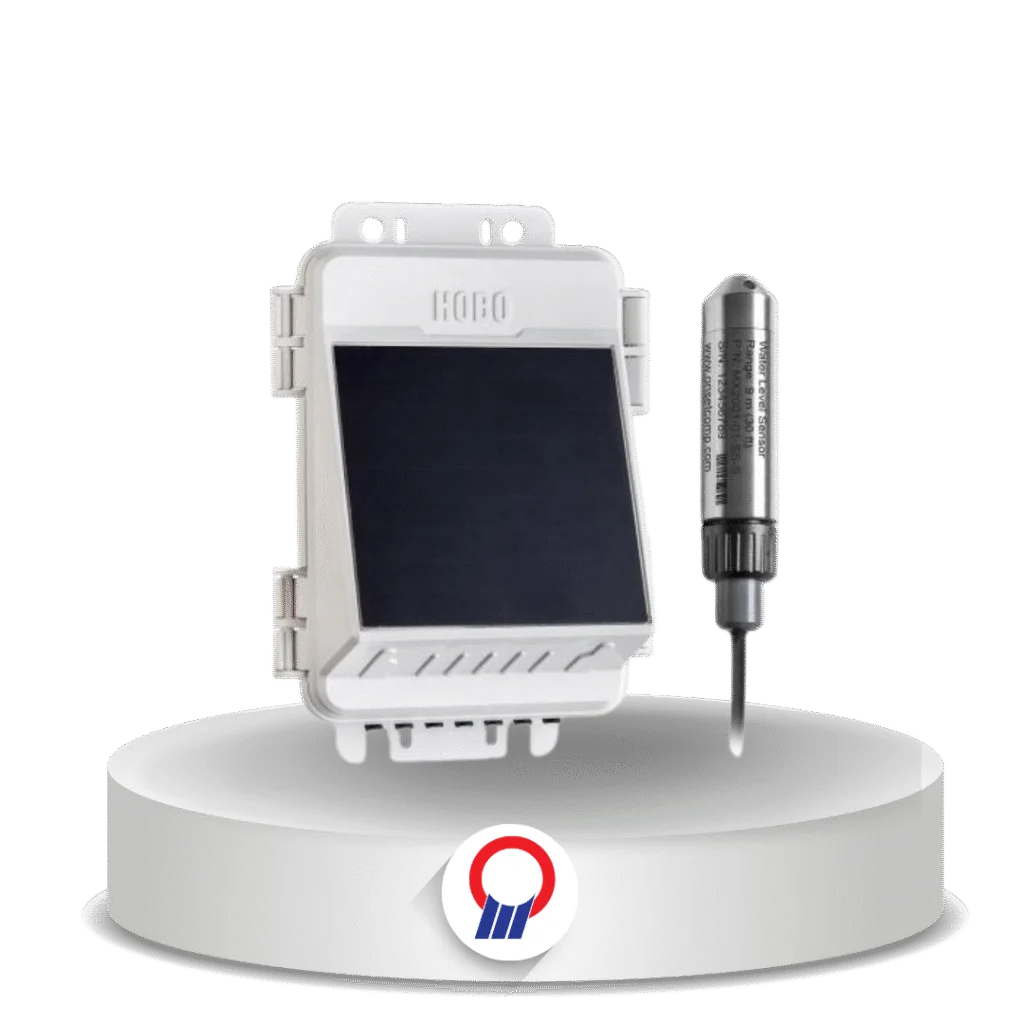

MicroRX RX2100-WL Water Level Station
HOBO

MicroRX RX2100-WL Water Level Station

Overview

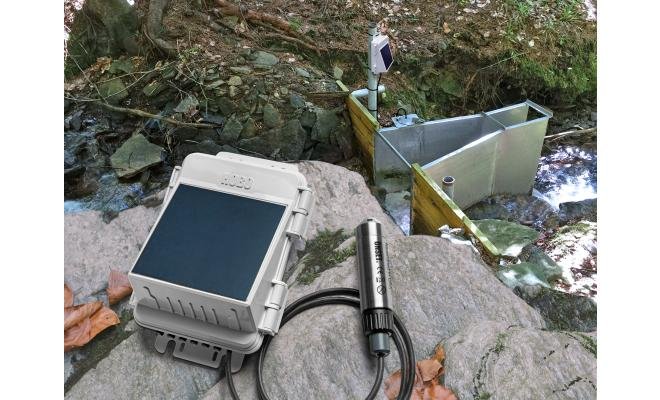

Solusi pemantauan level air jarak jauh berbasis seluler untuk lokasi bendungan, pengelolaan air hujan, banjir, irigasi, dan aplikasi hidrologi. Data dikirim ke cloud, dengan alarm di sisi stasiun.

Fitur Utama

  • Data dikirim lewat jaringan seluler 4G ke platform cloud HOBOlink
  • Input untuk hingga lima sensor plug-and-play, ditambah input sensor level air dengan konversi aliran
  • Pilihan daya: panel surya terpadu 1,7 W atau baterai AA lithium
  • Alarm di sisi stasiun, termasuk aliran air dan akumulasi curah hujan

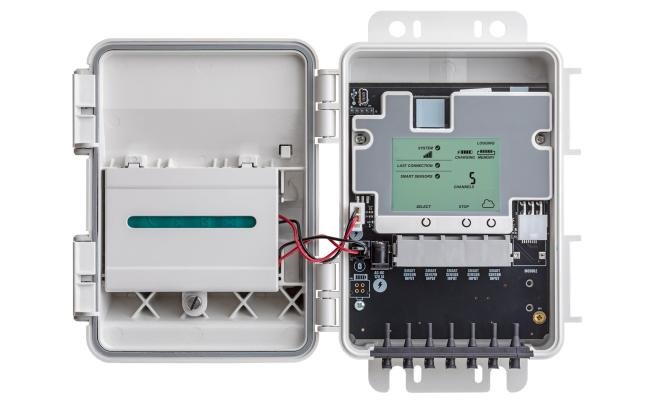

  • Layar LCD bawaan untuk memastikan setup benar

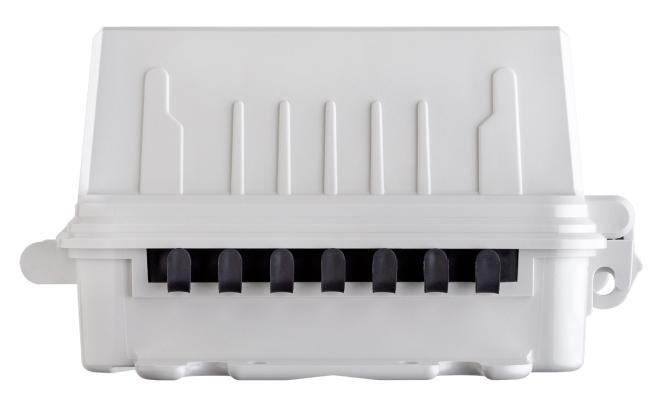

  • Enclosure tahan cuaca IP66 / NEMA 4X
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Level

Spesifikasi & Penerapan

Aplikasi
Environment Mining

Detail Produk

Specification Value
Station
Smart Sensor Connectors 5
Data Channels Maximum of 15
Network Cable Length 100 m (328 ft) maximum
Logging Rate 1 minute to 18 hours
Memory 16 MB, 1 million measurements, continuous logging
Wireless 4G LTE cellular (GSM/GPRS/EDGE, UMTS/HSPA+, LTE)
Operating Range RX2103 (battery): -40° to 60°C; RX2104 (solar): -20° to 60°C
Power RX2104: integrated 1.7 W solar panel + NiMH pack (3-5 years); RX2103: 6 AA lithium batteries
Time Accuracy ±8 seconds per month (0° to 40°C); ±30 seconds per month (-40° to 60°C)
Physical
Dimensions 19.95 x 13.68 x 7.49 cm
Weight 678 g
Environmental Rating NEMA 4X and IP66
