Inaproc

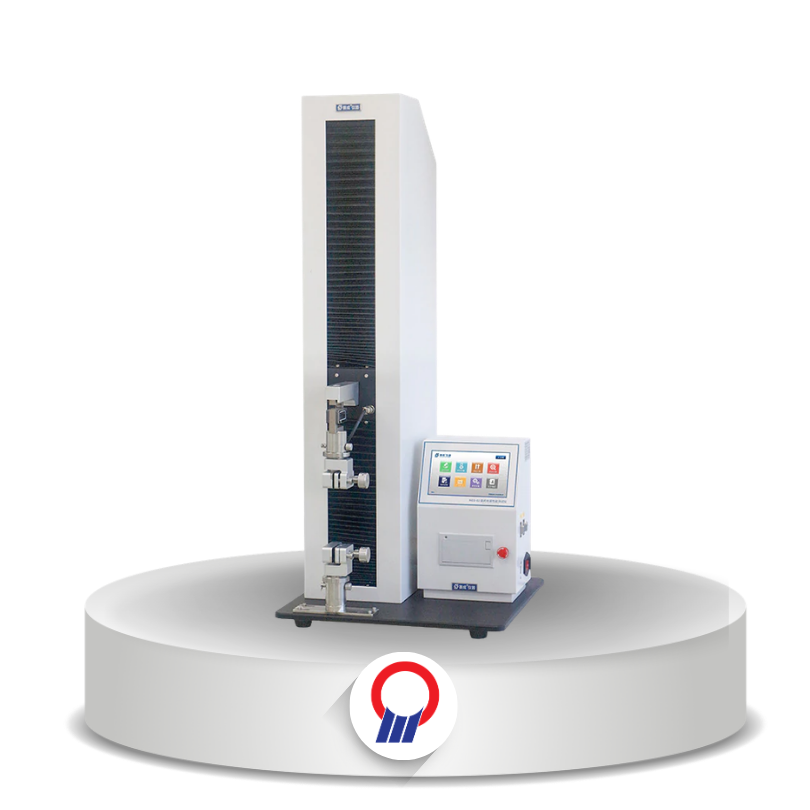

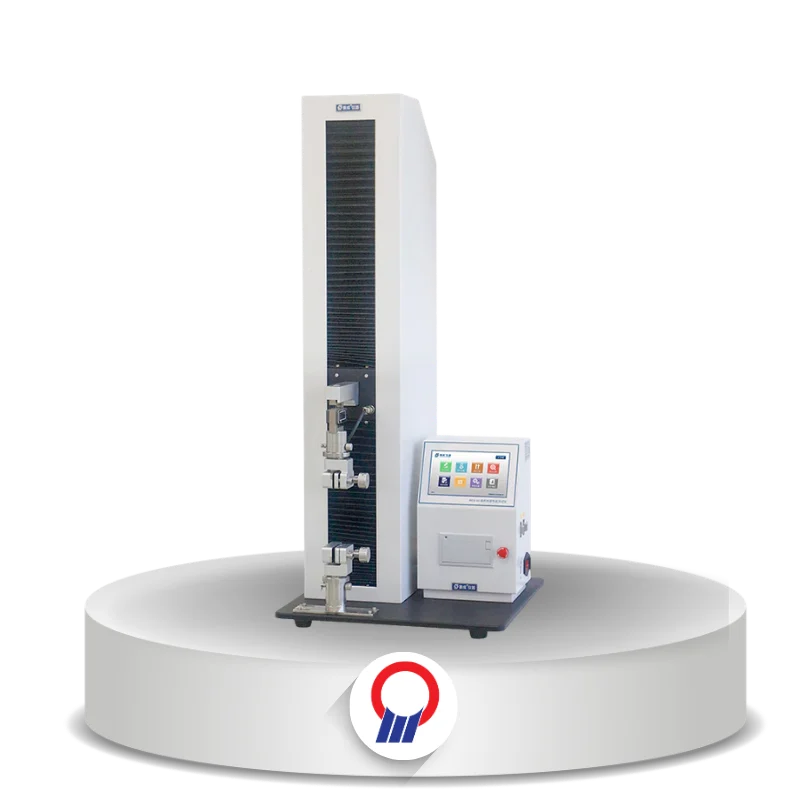

Medical Packaging Tester MED-02
Saicheng

Medical Packaging Tester MED-02

Overview

Penguji kemasan medis MED-02 untuk mengukur sifat kekuatan berbagai bahan kemasan farmasi dan perangkat medis (seperti jarum dan alat suntik).

Fitur Utama

  • Kapasitas 500 N (standar); 50 N sampai 2 kN opsional, akurasi 0,5% FS
  • Kecepatan uji 0–500 mm/menit, langkah 600 mm
  • Standar uji mencakup ISO 7864, ISO 7886, ISO 9626, ISO 8537, dan ISO 23908
  • Layar sentuh warna 7 inci dengan data real-time dan grafik tren
  • Otoritas pengguna bertingkat sesuai GMP; lebih dari 100 jig tersedia
  • Printer mikro bawaan dan antarmuka USB
Tanya via WhatsApp
Merk
Saicheng
Kategori
Strength & Durability Tester

Detail Produk

Specification Value
Specification
Test Range 500 N (standard); 50 N, 100 N, 250 N, 1 kN, 1.5 kN, 2 kN (optional)
Accuracy 0.5% FS
Resolution 0.0001 N
Displacement Accuracy 0.5% FS
Displacement Resolution 0.001 mm
Test Speed 0 ~ 500 mm/min (adjustable)
Sample Width 30 mm (standard); 50 mm (optional)
Clamping Manual (pneumatic clamps can be customized)
Stroke 600 mm
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 450 mm (W) x 450 mm (D) x 1000 mm (H)
Net Weight 55 kg
Test Standards ISO 7864, ISO 7886, ISO 9626, ISO 8537, ISO 23908, ISO 37, ASTM E4, D828, D882, D1938, D3330, F88, F904
