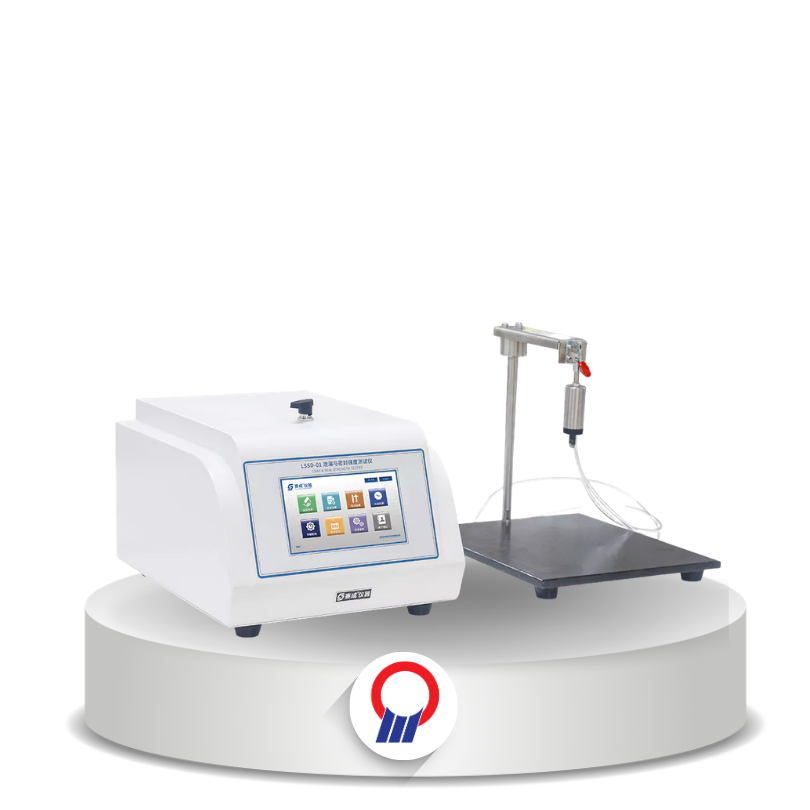

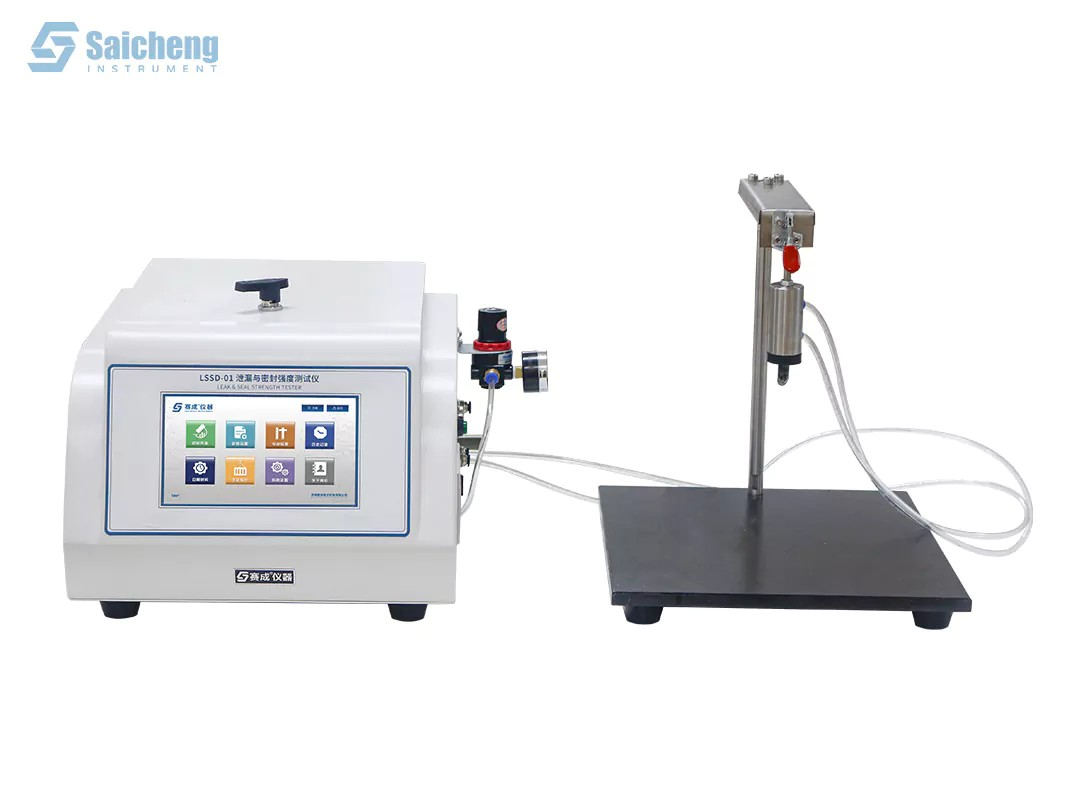

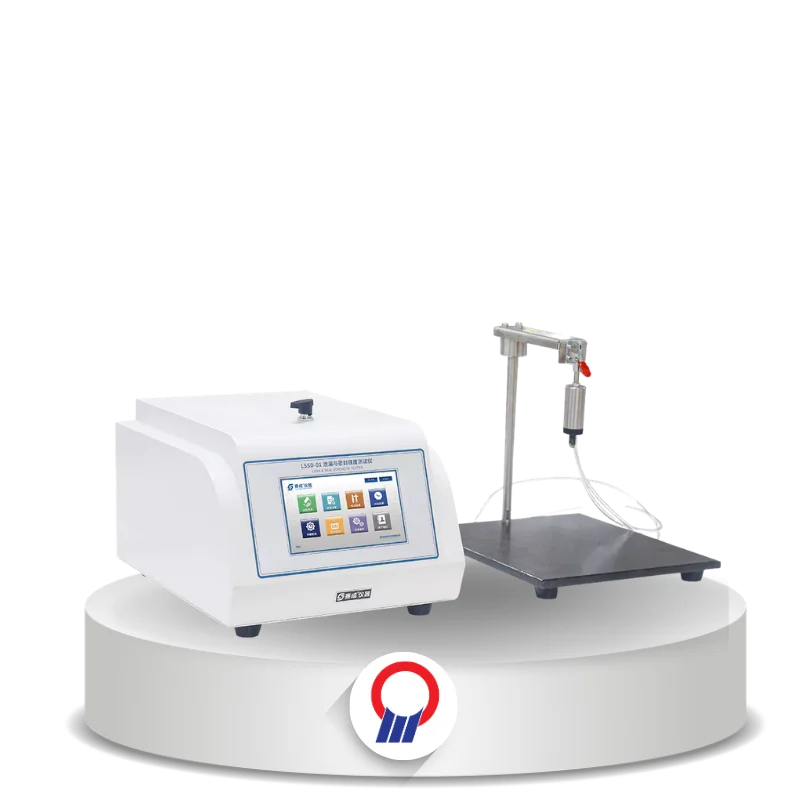

Leak and Seal Strength Tester LSSD-01
Saicheng

Leak and Seal Strength Tester LSSD-01

Overview

Alat uji kebocoran dan kekuatan segel (tekanan positif) untuk pengukuran kuantitatif kekuatan segel, kualitas penyegelan panas, tekanan pecah seluruh kantong, dan kinerja kebocoran segel pada kemasan fleksibel.

Fitur Utama

  • Rentang uji 0–1 MPa (standar); rentang 50 kPa sampai 1,6 MPa opsional
  • Akurasi tekanan ±0,5% FS (standar) atau ±0,25% FS (opsional), resolusi 0,001 kPa
  • Mode uji seal strength, burst, creep, dan creep to failure
  • Dua metode: restraint distension dan unrestraint distension
  • Statistik dan pencetakan hasil otomatis; data dapat dibagi lewat LAN dan internet
  • Layar sentuh warna 7 inci dengan operasi satu tombol
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification
Test Range 0 ~ 1 MPa (standard); 50 kPa, 100 kPa, 400 kPa, 600 kPa, 1.6 MPa (optional)
Resolution 0.001 kPa
Pressure Accuracy ±0.5% FS (standard); ±0.25% FS (optional)
Gas Injection Head Φ10 mm (customization is available)
Gas Flow Rate 0.01 ~ 10 L/min (optional)
Pressure Retaining Time 1 ~ 99,999 s
Gas Supply Pressure 0.5 MPa ~ 0.9 MPa (outside of supply scope)
Port Size Φ6 mm PU tubing
Extended Functions Automatic pressure regulation and flow leakage detection (optional)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 400 mm (W) x 400 mm (D) x 270 mm (H)
Instrument Weight 8 kg
Pedestal Dimension 300 mm (W) x 355 mm (D) x 350 mm (H)
Pedestal Weight 10 kg
Test Standards ASTM F1140, ASTM F2054, ASTM F2096 (optional), ISO 11607
Configuration
Standard Instrument, test frame, micro printer
Optional Professional software, 485 communication cable, closed package restraining device, open package unrestrained device, plastic pilfer-proof closure device, flexible tube seal device, aerosol valve seal device
