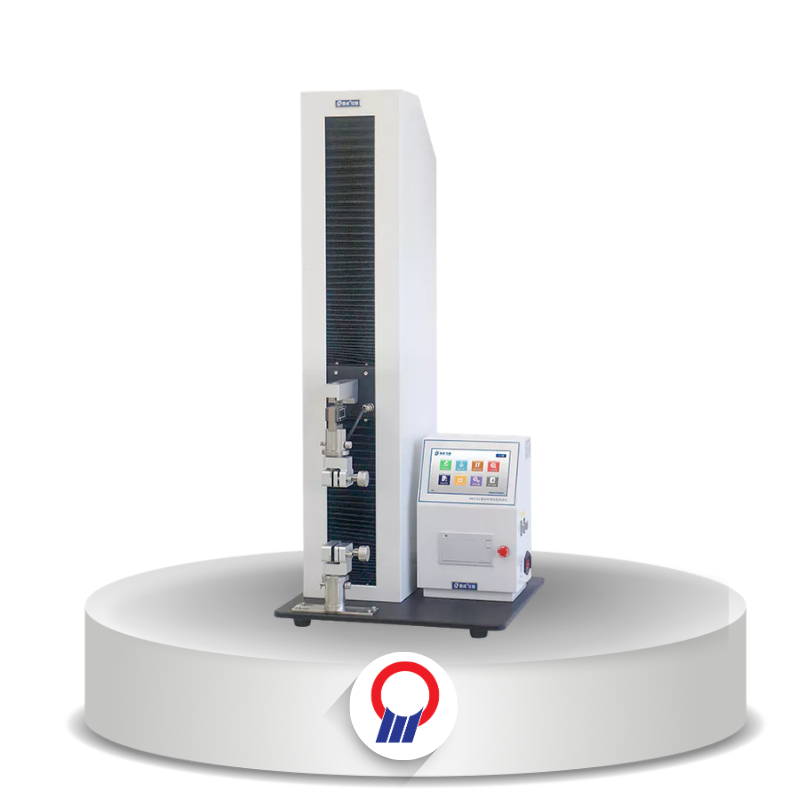

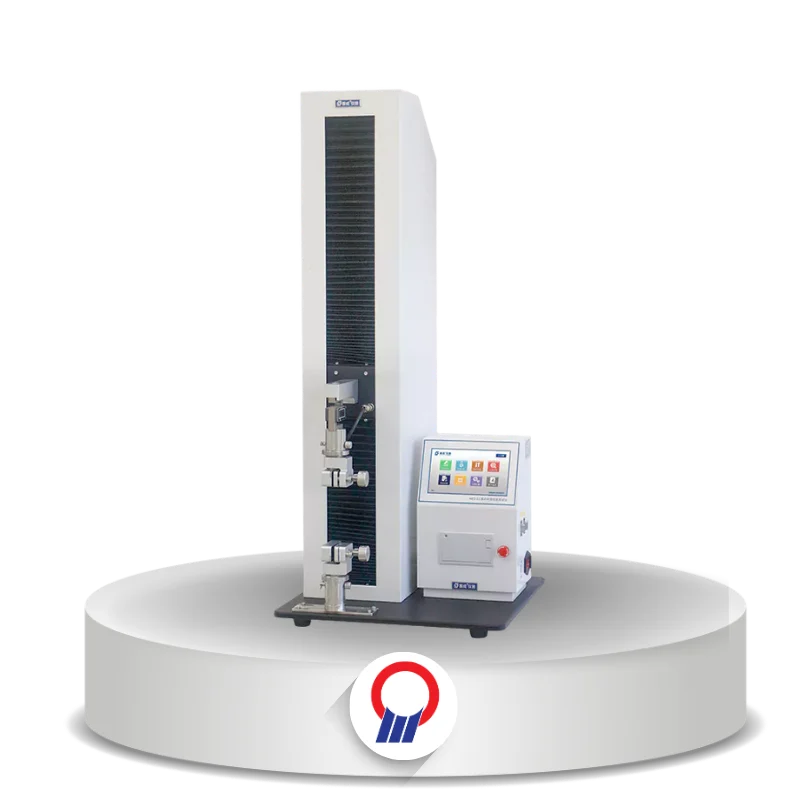

Intelligent Tensile Testing Machine XLW-L
Saicheng

Intelligent Tensile Testing Machine XLW-L

Overview

Mesin uji tarik cerdas XLW-L untuk sifat mekanis bahan kemasan fleksibel, termasuk kekuatan segel panas, gaya lepas, ketahanan sobek, dan perpanjangan.

Fitur Utama

  • Kapasitas 500 N (standar); 50 N sampai 2 kN opsional, akurasi 0,5% FS
  • Kecepatan uji 0–500 mm/menit (dapat diatur), langkah 600 mm
  • Penjepit manual (penjepit pneumatik dapat dikustomisasi); lebih dari 100 jig tersedia
  • Layar sentuh warna 7 inci dengan kurva gaya sinkron
  • Proteksi batas, overload, reposisi otomatis, dan memori saat daya mati
  • Riwayat data dapat ditelusuri dan diaudit; printer mikro dan USB
Tanya via WhatsApp
Merk
Saicheng
Kategori
Strength & Durability Tester

Detail Produk

Specification Value
Specification
Test Range 500 N (standard); 50 N, 100 N, 250 N, 1 kN, 1.5 kN, 2 kN (optional)
Accuracy 0.5% FS
Resolution 0.0001 N
Displacement Accuracy 0.5% FS
Displacement Resolution 0.001 mm
Test Speed 0 ~ 500 mm/min (adjustable)
Sample Width 30 mm (standard); 50 mm (optional)
Clamping Manual (pneumatic clamps can be customized)
Stroke 600 mm
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 450 mm (W) x 450 mm (D) x 1000 mm (H)
Net Weight 55 kg
Test Standards ASTM E4, D828, D882, D1938, D3330, F88, F904; ISO 37; JIS P8113; GB/T 13022, 8808, 1040, 4850, 7753, 7754, 453, 17200, 16578, 7122, 2790, 2791, 2792; QB/T 2358, QB/T 1130
Configuration
Standard Instrument, micro printer, universal fixture
Optional Professional software, 485 communication cable, various test fixtures
