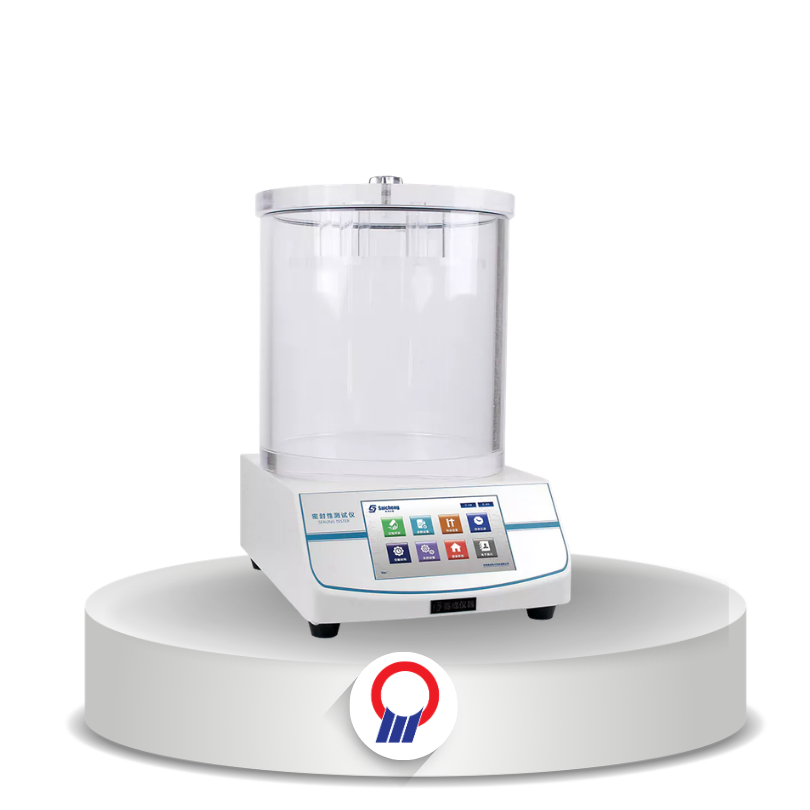

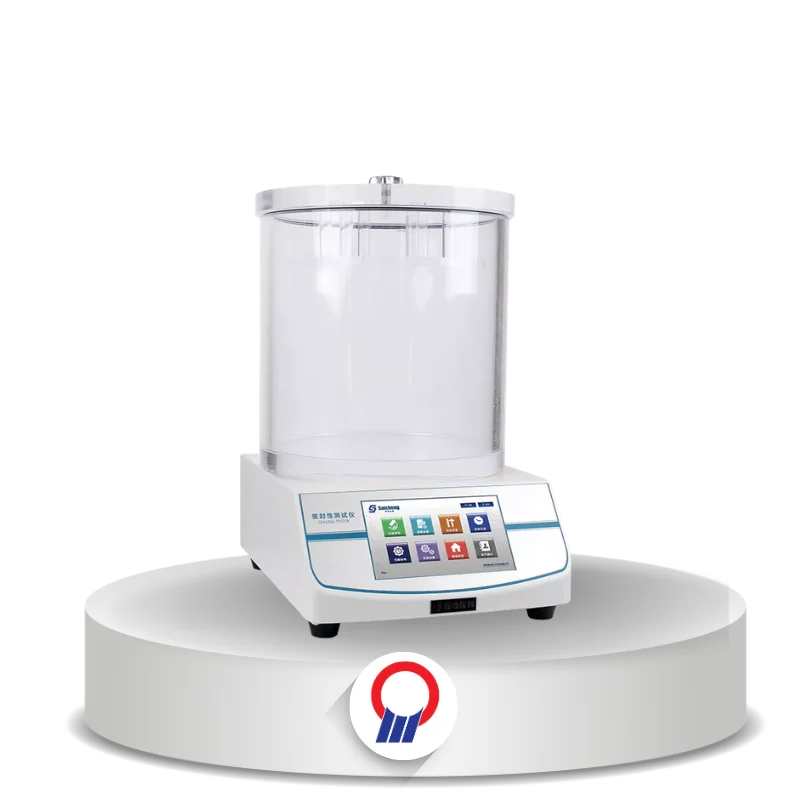

Intelligent Leak Tester MFY-CM
Saicheng

Intelligent Leak Tester MFY-CM

Overview

Alat uji kebocoran cerdas (metode vakum) untuk berbagai kemasan produk makanan, farmasi, alat kesehatan, kimia rumah tangga, komponen elektronik, alat tulis, dan produk industri.

Fitur Utama

  • Derajat vakum 0 sampai −90 kPa dengan akurasi 0,5% FS
  • Dua mode uji: penahanan tekanan dan penambahan tekanan
  • Kendali otomatis vakum, penahanan tekanan, pengisian tekanan, pewaktuan, back blow, cetak, simpan, dan unggah data
  • Satuan mbar dan kPa dapat dikonversi; catatan uji tersimpan otomatis dan dapat diekspor ke Excel
  • Manajemen hak akses bertingkat sesuai GMP; bilingual Inggris–Mandarin
  • Layar sentuh 7 inci, printer mikro, antarmuka USB, dan perangkat lunak PC
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification
Vacuum Degree 0 ~ -90 kPa
Accuracy 0.5% FS
Negative Pressure Generation Vacuum generator

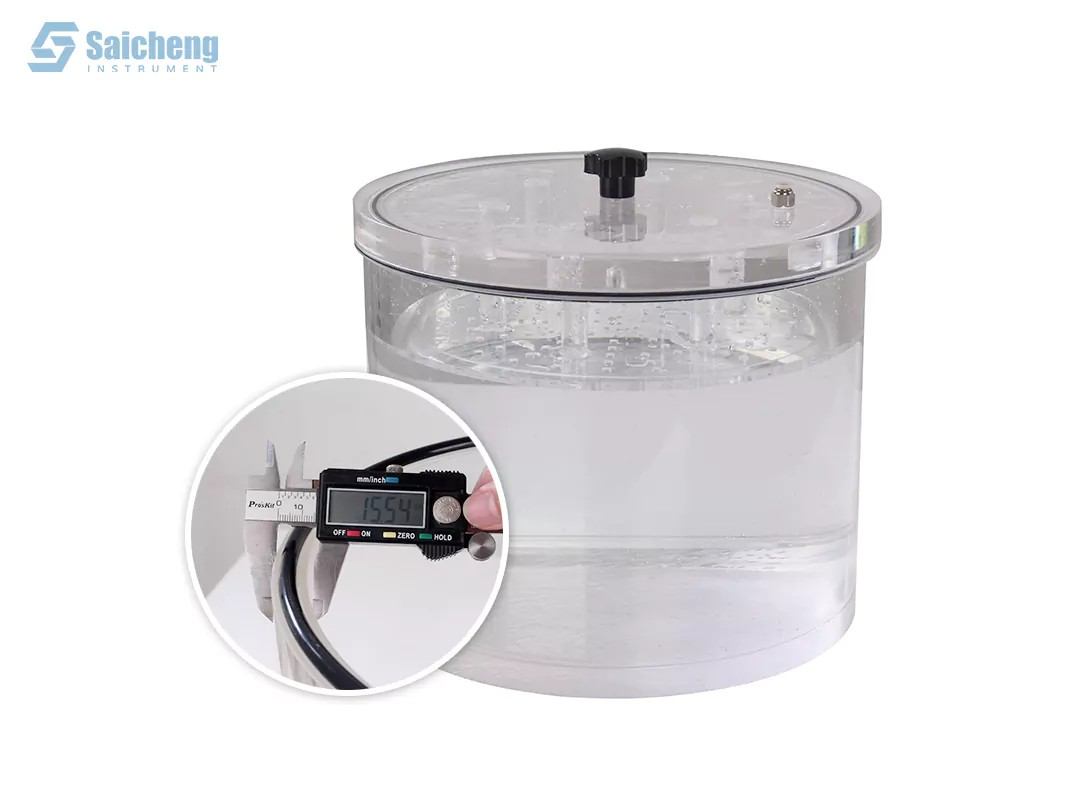

Vacuum Chamber Effective Size Φ270 mm x 210 mm (H) (standard); customization is available
Air Pressure 0.4 ~ 0.6 MPa (outside of supply scope)
Port Size Φ6 mm PU tubing
Instrument Dimension 300 mm (L) x 380 mm (W) x 165 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 10 kg
Test Standards ASTM D3078, ASTM F2096, ASTM F3039, ASTM D5094, ASTM D6653, GB/T 15171, GB/T 27728, YB00112002-2015, YBB00122002-2015, YBB00262002-2015
Configuration
Standard Instrument, micro printer, vacuum chamber
Optional Professional software, 485 communication cable, electronic signature pad, voice prompt function
