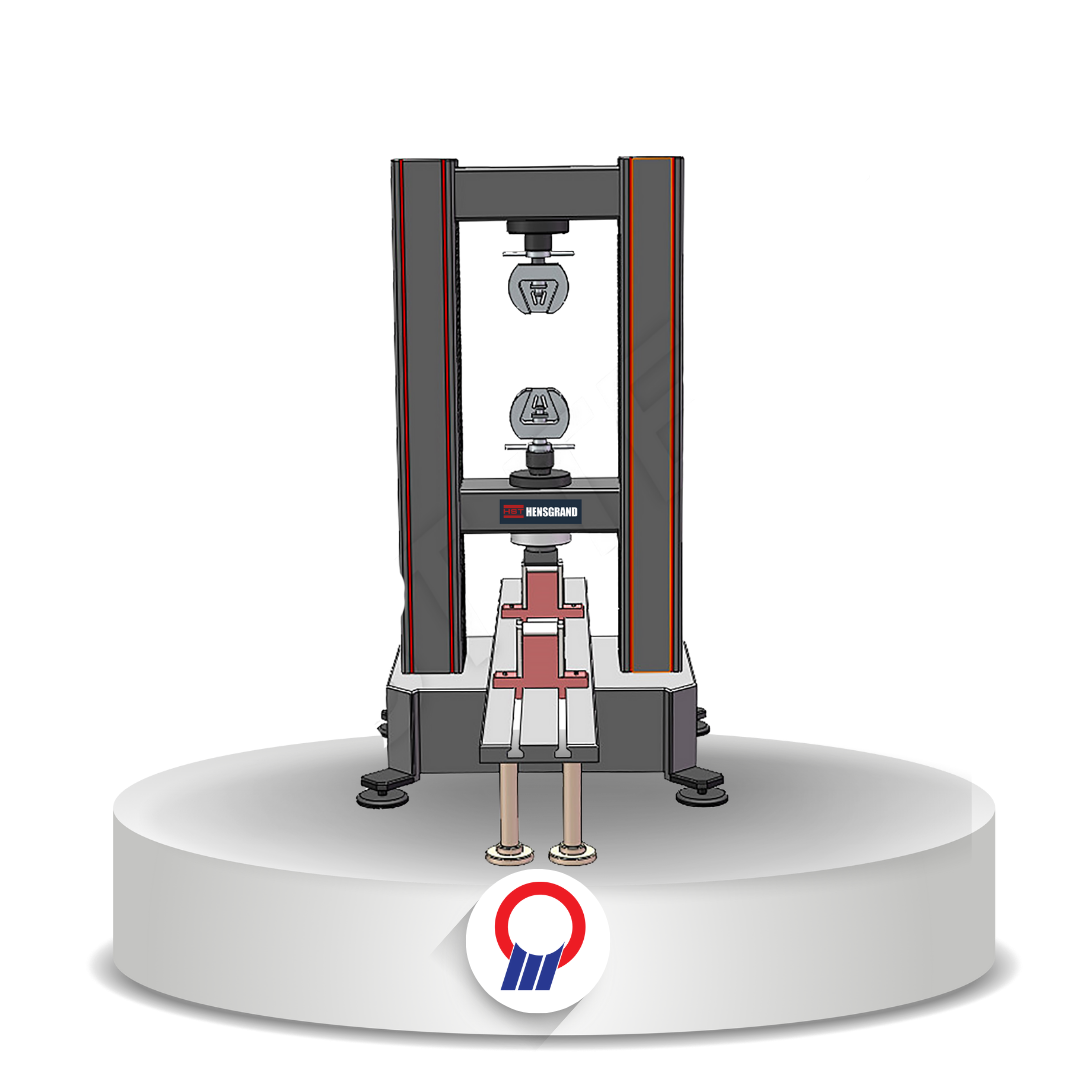

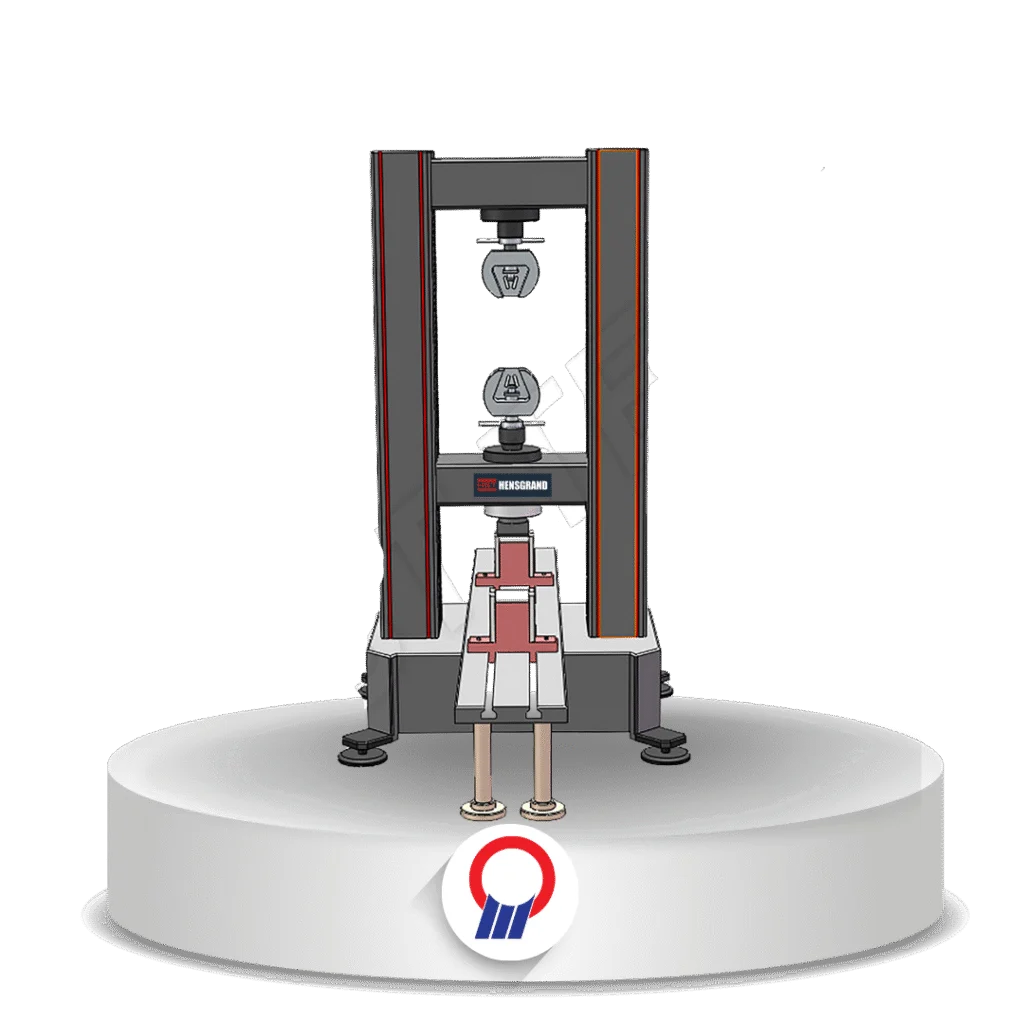

HSTWDT 35 Microcomputer controlled electronic ladder static load testing machine
HST

HSTWDT 35 Microcomputer controlled electronic ladder static load testing machine

Overview

Mesin uji beban statis tangga eskalator (HSTWDT 35) berkontrol mikrokomputer untuk pengujian pijakan eskalator dan walkway sesuai standar keselamatan.

Fitur Utama

  • Gaya uji maksimum 10, 20, 35, 50, dan 100 kN
  • Akurasi gaya lebih baik dari ±1%; rentang 0,4–100% skala penuh dengan perpindahan rentang otomatis
  • Resolusi perpindahan ±0,001 mm; kecepatan 0,005–500 mm/menit
  • Kendali loop tertutup gaya, deformasi, dan perpindahan (kecepatan)
  • Proteksi overload, batas, servo AC, dan motor (overcurrent/overvoltage/overspeed/overtorque/overtemperature)
  • Standar GB/T 16899-2011 dan TSG T7024-2004
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Max. Test Force 10, 20, 35, 50, 100 kN
Test Force Accuracy Better than ±1%
Test Force Measurement Range 0.4 ~ 100% full scale, automatic range shifting
Displacement Resolution ±0.001 mm
Displacement Measurement Accuracy Better than ±1% of indication
Speed Range 0.005 mm/min ~ 500 mm/min
Speed Accuracy Better than ±1%
Control Mode Closed-loop control of force, deformation, and displacement (speed); constant load, constant deformation, stress rate, strain rate
Protective Functions Overload, limit, AC servo speed control, motor overcurrent / overvoltage / overspeed / overtorque / overtemperature
Test Space Single test space; tension, compression, and bending in the lower space
Standards GB/T 16899-2011, TSG T7024-2004
