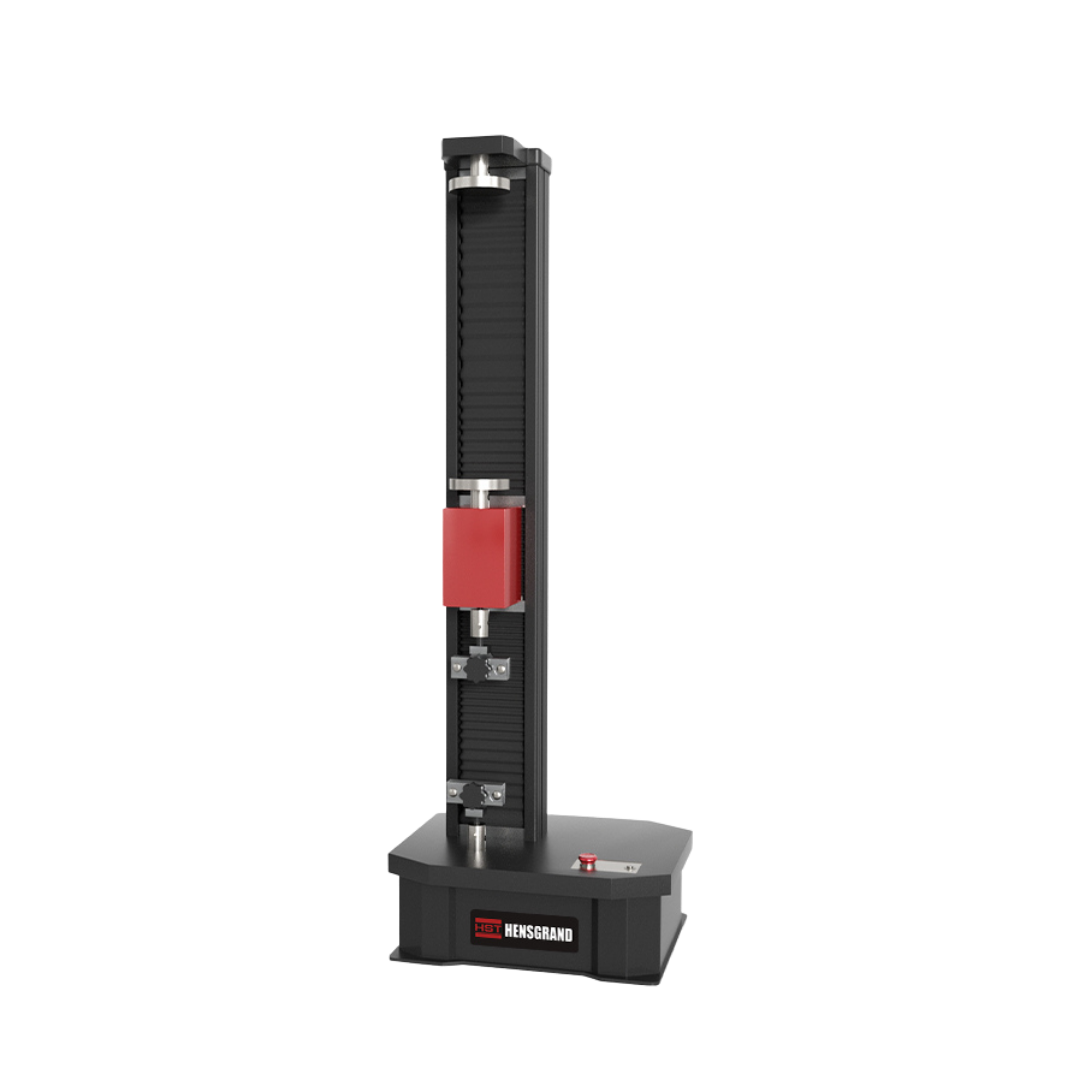

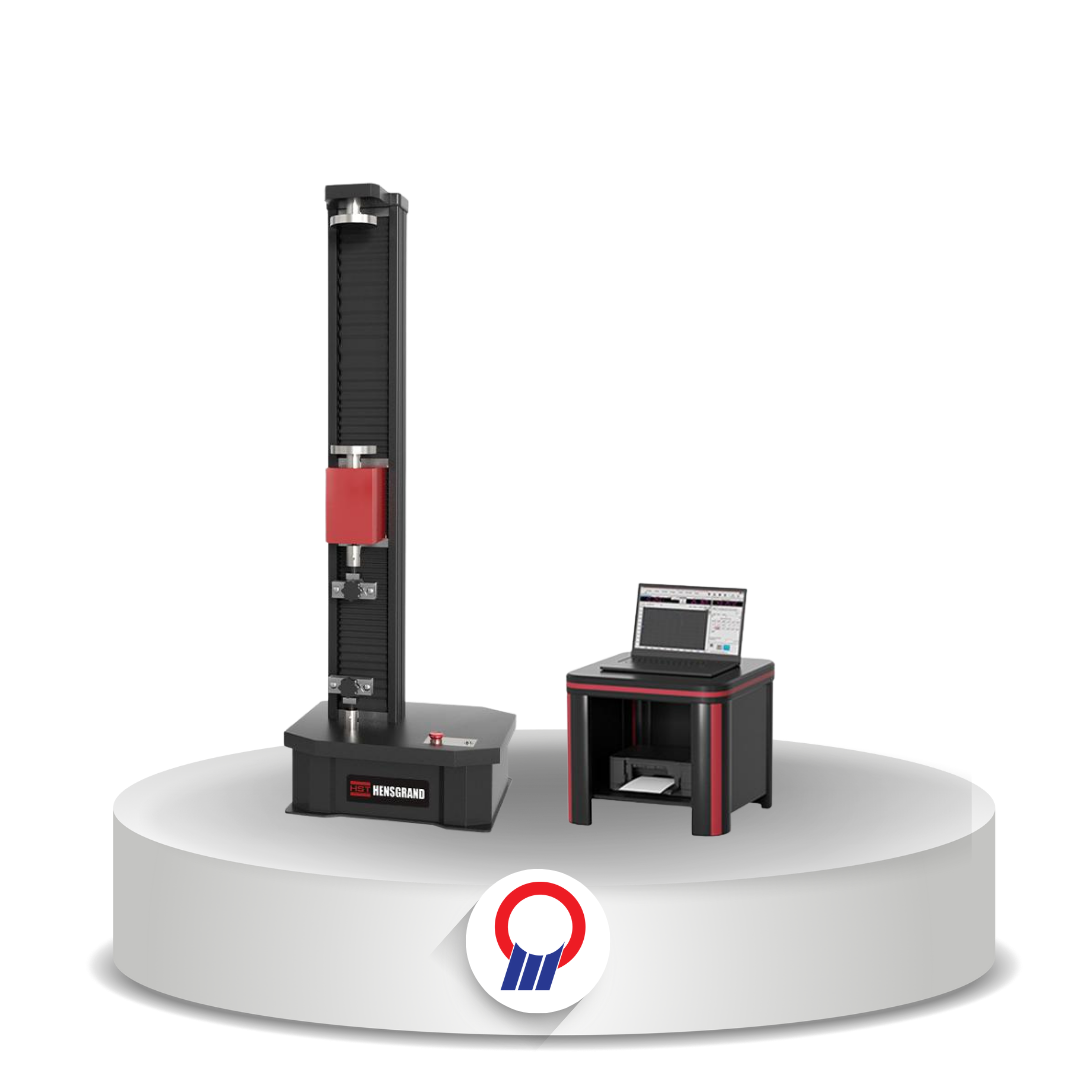

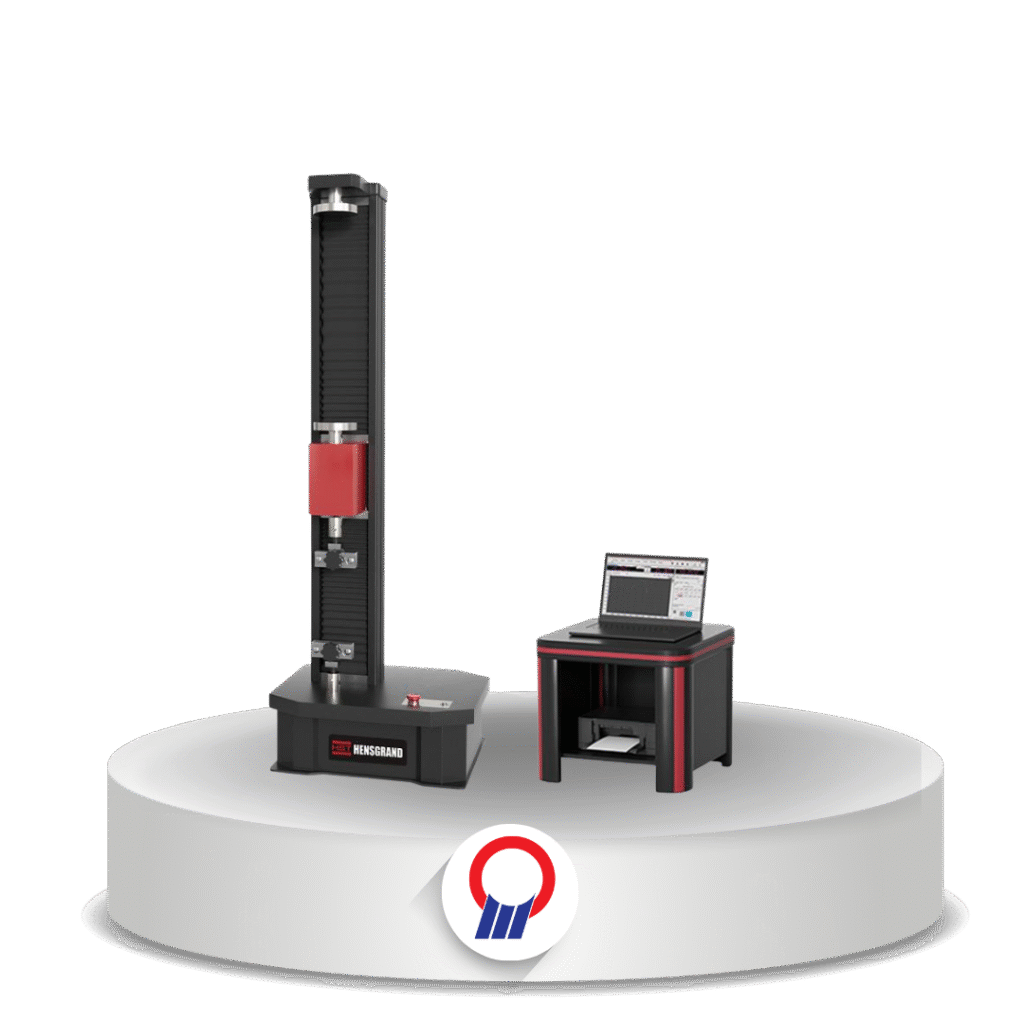

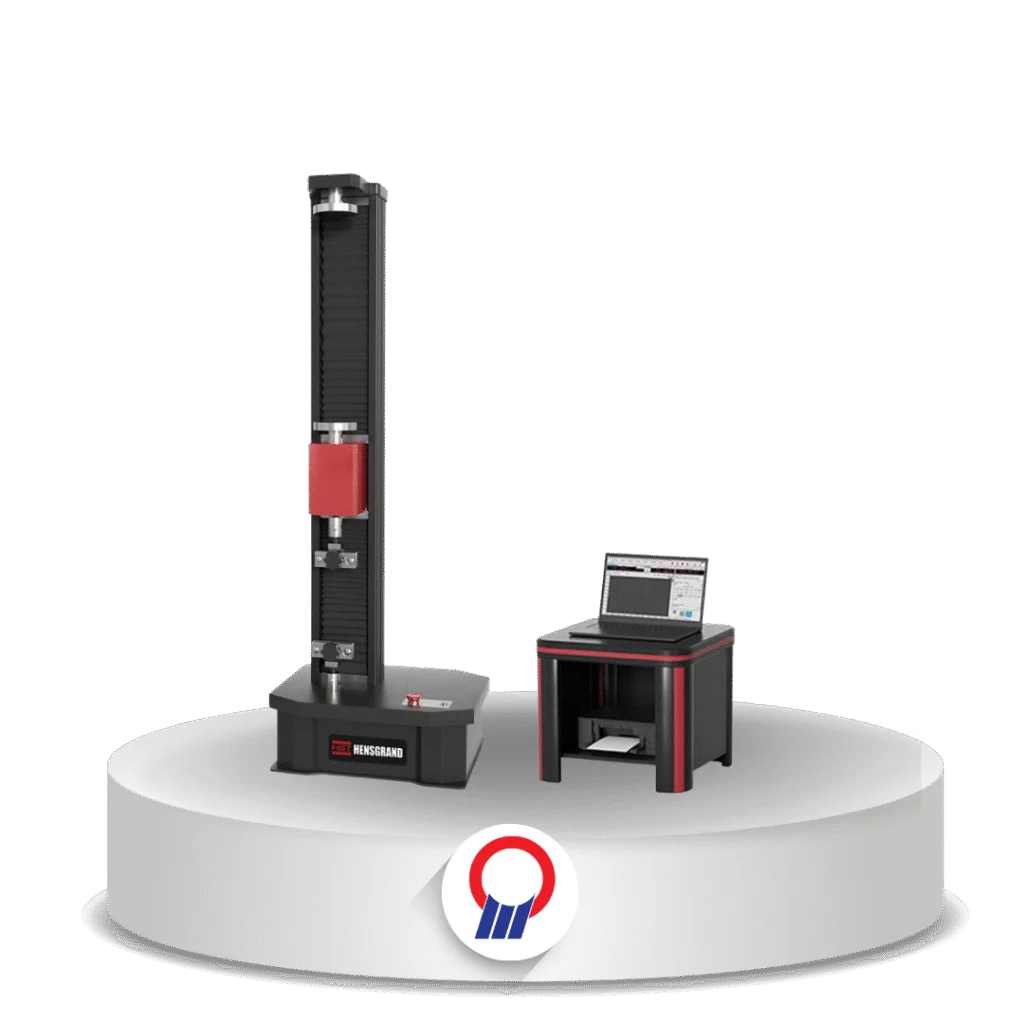

HST WDW-H Series 100N~30Kn Computer control Single Column Electromechanical Universal Testing Machine
HST

HST WDW-H Series 100N~30Kn Computer control Single Column Electromechanical Universal Testing Machine

Overview

Mesin uji universal elektromekanis satu kolom seri WDW-H (100 N sampai 30 kN) berkontrol komputer, dengan penjepit wedge atau pelat sesuai kebutuhan.

Fitur Utama

  • Kapasitas 0,1 kN sampai 30 kN (WDW-01 sampai WDW-30H)
  • Kelas 0,5 menurut ISO 7500; rentang gaya 0,4–100% F·S
  • Kecepatan uji 0,05–1.000 mm/menit (stepless); akurasi ±0,5%
  • Lingkungan kerja 10–30°C, kelembapan ≤80%
  • Penjepit wedge, pelat, dan lainnya sesuai kebutuhan
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-01, 02, 03, 05, 1, 2, 3, 5H; WDW-10H; WDW-20H; WDW-30H
Max. Load 0.1 ~ 5 kN; 10 kN; 20 kN; 30 kN
Calibration Standard ISO 7500
Load Accuracy Class 0.5
Load Range 0.4% ~ 100% F·S
Resolution of Displacement 0.01 mm
Test Speed 0.05 ~ 1000 mm/min (stepless arbitrary setting)
Speed Accuracy Within ±0.5% of set speed
Tensile / Compression Space (mm) WDW-01 ~ 5H: 670
WDW-10H: 615
WDW-20H, 30H: 633
Dimension (mm) WDW-01 ~ 5H: 450 x 335 x 1351
WDW-10H: 500 x 400 x 1495
WDW-20H, 30H: 500 x 400 x 1525
Gross Weight WDW-01 ~ 5H: 100 kg
WDW-10H: 110 kg
WDW-20H, 30H: 120 kg
Working Environment 10°C ~ 30°C, relative humidity ≤ 80%
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Grips Wedge type, plate type, and others per customer’s demand
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
