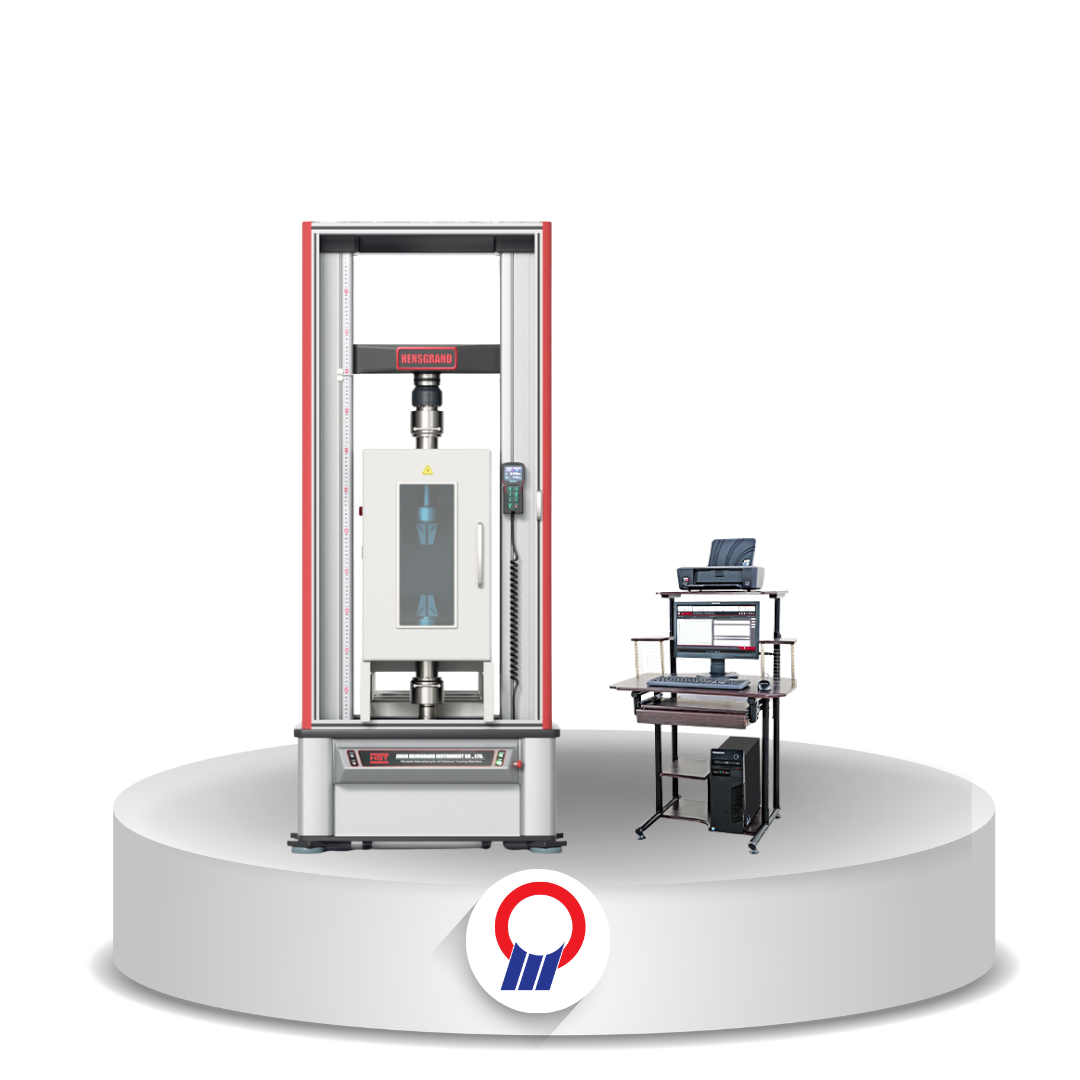

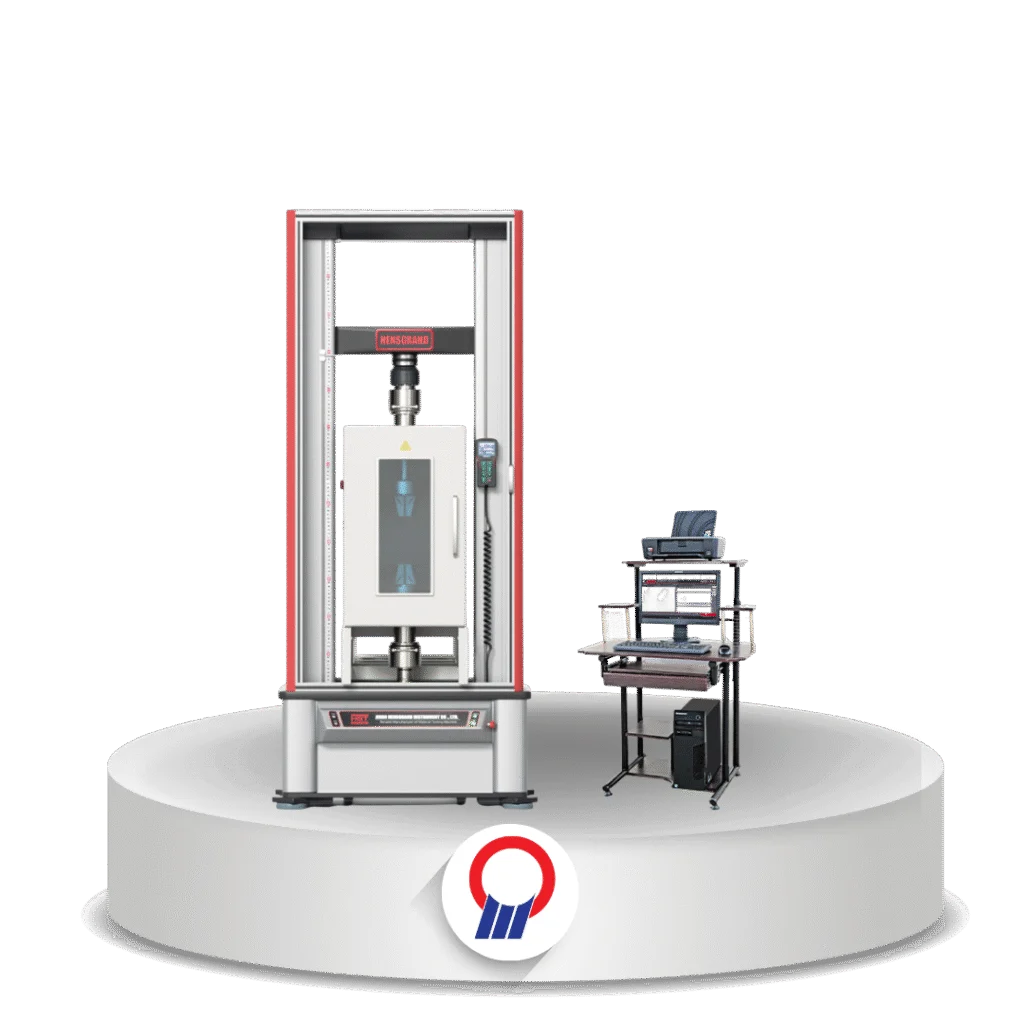

HST WDW-EGD series Multi-station high and low temperature tensile testing machine
HST

HST WDW-EGD series Multi-station high and low temperature tensile testing machine

Overview

Mesin uji tarik suhu tinggi dan rendah multi-stasiun seri WDW-EGD-4 (10 sampai 100 kN), kelas akurasi 0,5.

Fitur Utama

  • Lima model: 10, 20, 30, 50, dan 100 kN (EGD-4)
  • Kelas akurasi 0,5; rentang gaya 0,2–100% F·S
  • Kecepatan uji 0,05–1.000 mm/menit; akurasi ±0,5%
  • Standar GB/T 4338, HB 5195, GB/T 2039, dan HB 5150
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HSTWDW-10EGD-4, 20EGD-4, 30EGD-4, 50EGD-4, 100EGD-4
Max. Load 10, 20, 30, 50, 100 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed 0.05 ~ 1000 mm/min (stepless arbitrary setting)
Speed Accuracy ±0.5% of set speed
Tensile Space (mm) 10, 20 kN: 670
30, 50 kN: 770
100 kN: 650
Compression Space (mm) 10, 20, 30 kN: 900
50, 100 kN: 1000
Test Width (mm) 10, 20, 30, 50 kN: 450
100 kN: 550
Beam Travel Distance (mm) 10, 20 kN: 1000
30, 50, 100 kN: 1100
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards GB/T 4338, HB 5195, GB/T 2039, HB 5150
