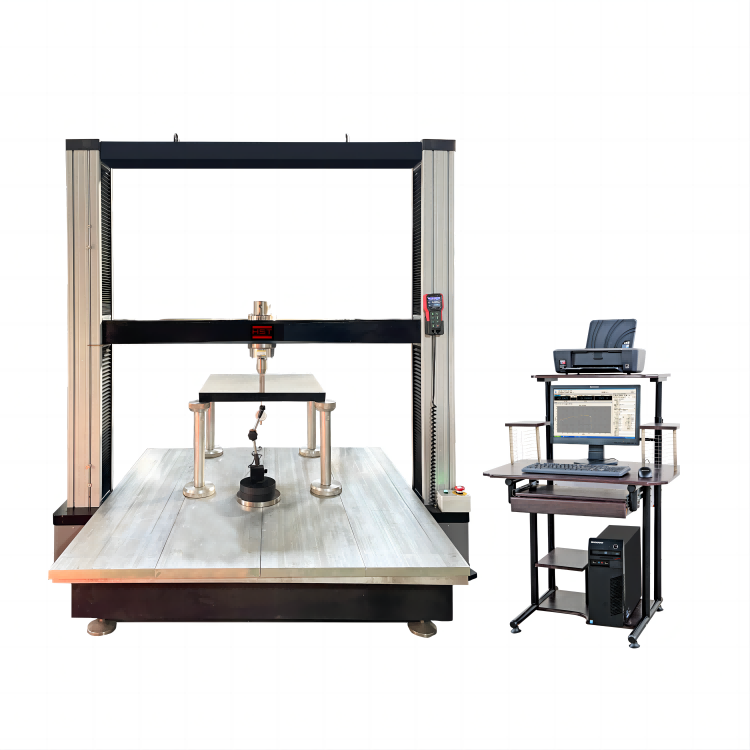

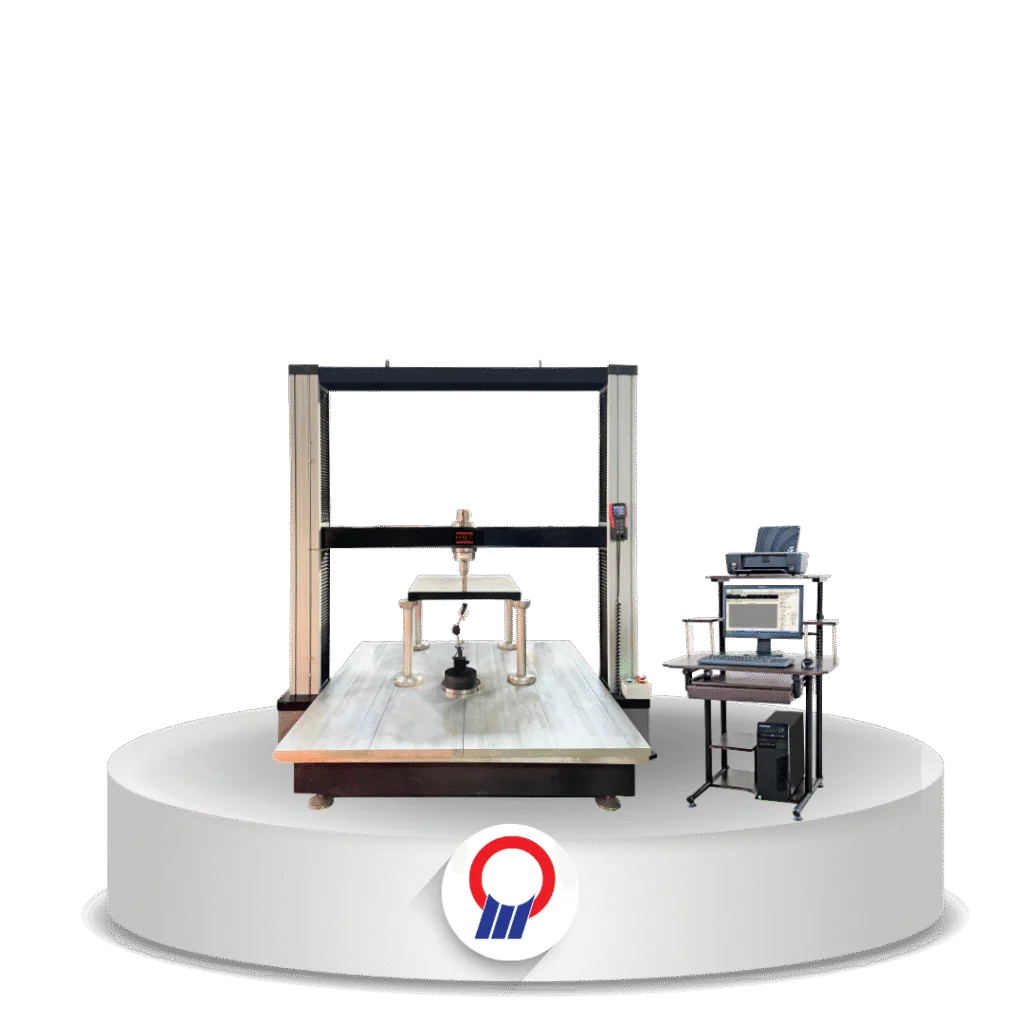

HST WDW-10KN/20KN/50KN/100KN Chipboard Raised Floor Compression Testing Machine
HST

HST WDW-10KN/20KN/50KN/100KN Chipboard Raised Floor Compression Testing Machine

Overview

Mesin uji tekan raised floor (lantai tinggi) papan serpih kapasitas 10, 20, 50, dan 100 kN sesuai BS EN 12825.

Fitur Utama

  • Kolom ganda, kelas uji 0,5
  • Akurasi gaya ±0,5%, rentang gaya 0,4–100% FS
  • Kecepatan 0,01–1.000 mm/menit; lebar uji 1.200 mm
  • Pelat tekan bawah 1.190 x 1.190 mm (dapat dikustomisasi)
  • Standar BS EN 12825
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model HST WDW-10KN / 20KN / 50KN / 100KN
Columns Double column
Test Grade 0.5
Testing Force Accuracy ±0.5%
Testing Force Range 0.4% – 100% FS
Displacement Accuracy ±0.5%
Displacement Resolution 0.5 (unit not stated)
Speed Range 0.01 – 1000 mm/min
Control Accuracy ±0.5%
Test Width 1200 mm
Lower Compression Platen 1190 x 1190 mm (customized)
Position Limit Switch Upper and lower lights
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards BS EN 12825
