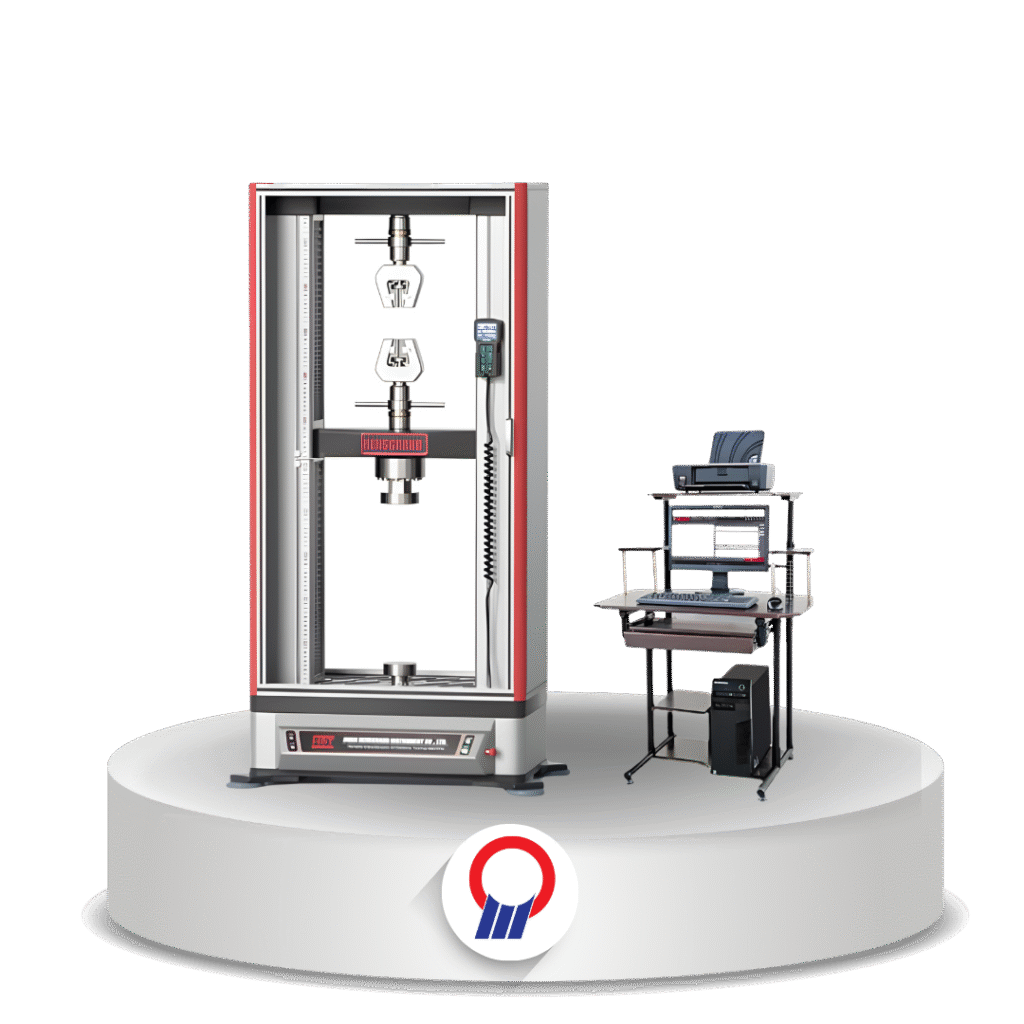

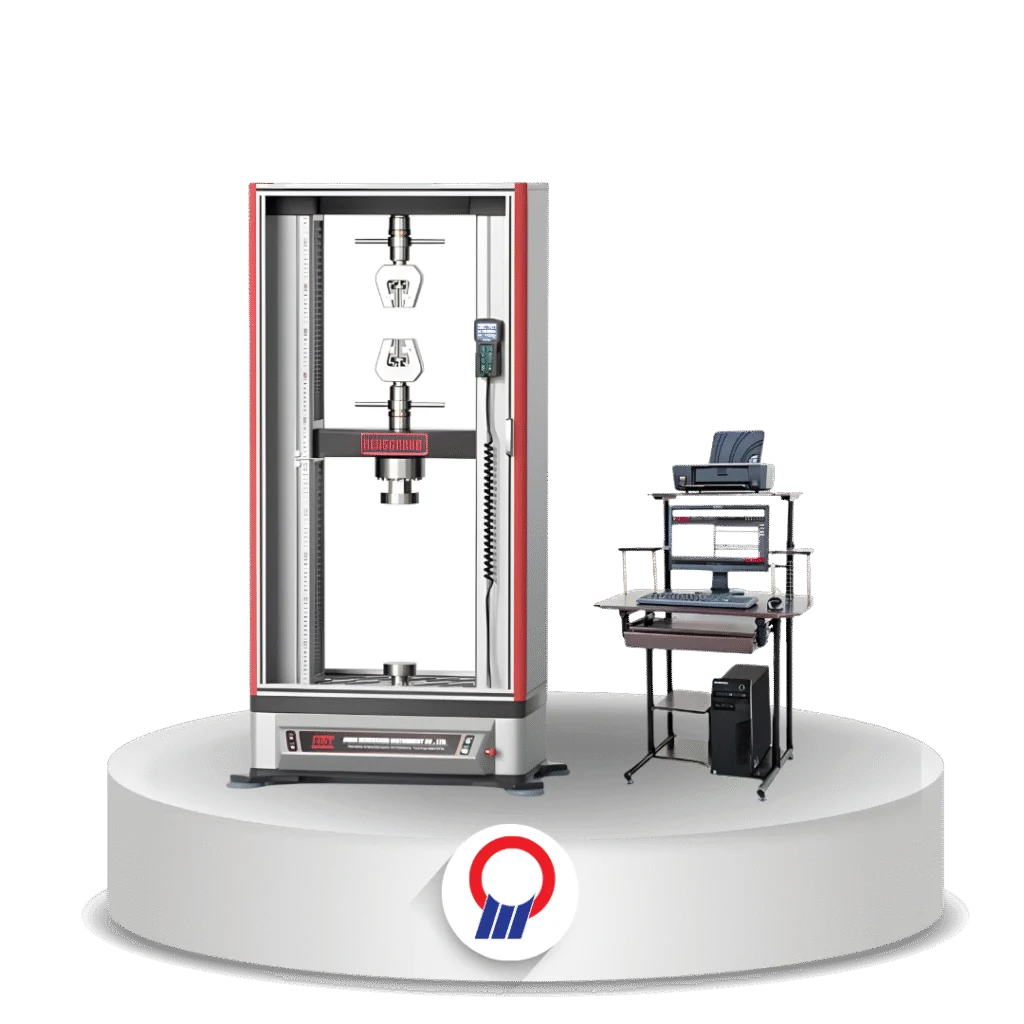

HST WDW-100E 100KN Computer control Electromechanical universal testing machine
HST

HST WDW-100E 100KN Computer control Electromechanical universal testing machine

Overview

Mesin uji universal elektromekanis (komputer) untuk uji tarik, tekan, lentur, geser, sobek, dan kupas dengan kendali loop tertutup gaya, perpindahan, atau deformasi.

Fitur Utama

  • Kapasitas 100 kN
  • Kelas akurasi gaya ISO 7500 0.5, resolusi gaya 1/500000
  • Resolusi perpindahan 0,01 mm; kesalahan perpindahan dalam ±0,5% dari beban
  • Ruang tarik 650 mm, ruang tekan 1.000 mm, lebar uji 550 mm
  • Dimensi 950 x 660 x 2.000 mm, bobot 690 kg
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-100E
Max. Load 100 kN
Load Accuracy ISO 7500 Class 0.5
Load Range 0.4% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed (mm/min) 0.001-500
Tensile Space (mm) 650
Compression Space (mm) 1000
Test Width (mm) 550
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Accuracy of Test Load ≤ ±0.5%
Speed Accuracy Within ±0.5% of set speed
Dimensions (L x W x H) 950 x 660 x 2000 mm
Weight 690 kg
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
