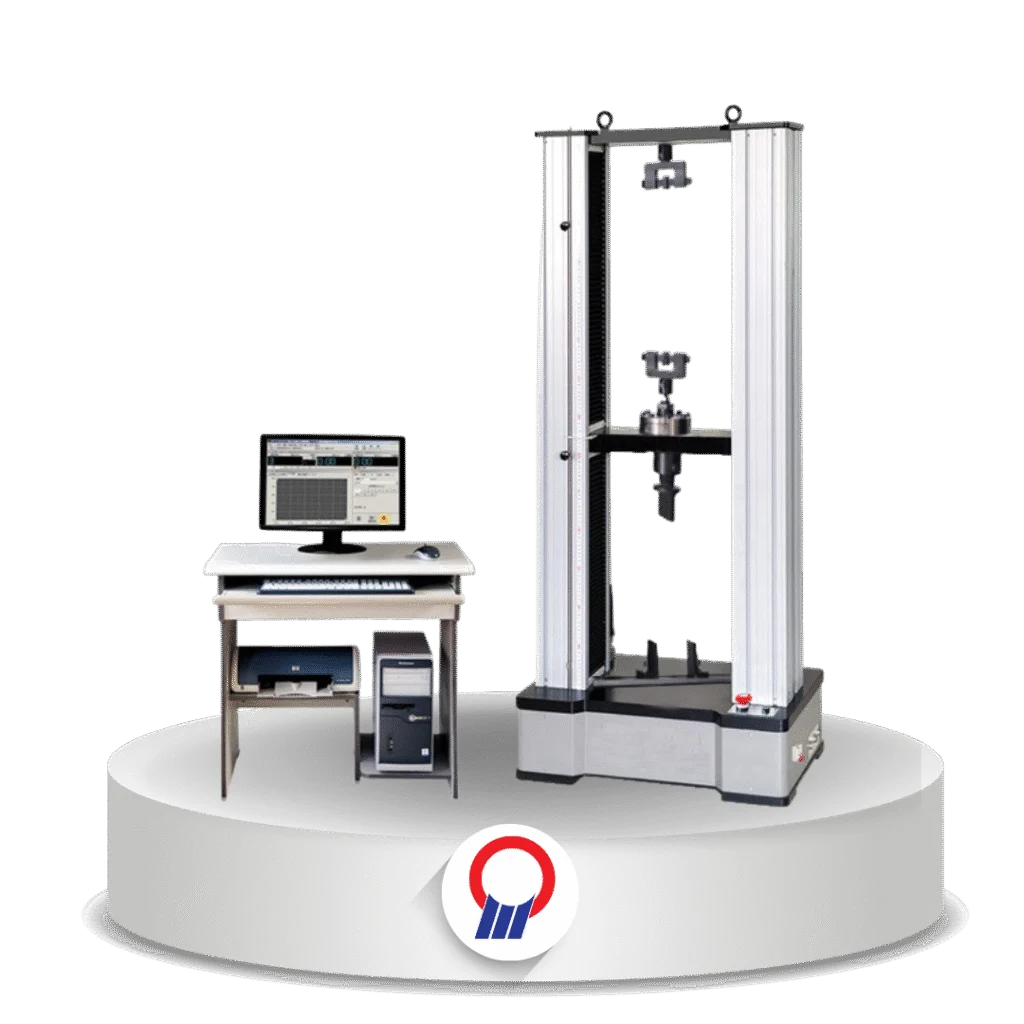

HST MWW-10 Universal Testing Machine
HST

HST MWW-10 Universal Testing Machine

Overview

Mesin uji universal HST MWW berkontrol komputer untuk panel berbahan kayu (MDF, papan serpih, plywood, core-board), kapasitas 10, 20, dan 50 kN.

Fitur Utama

  • Tiga model: MWW-10E (10 kN), MWW-20E (20 kN), dan MWW-50E (50 kN)
  • Kontrol komputer otomatis, kelas akurasi 0,5
  • Rentang uji gaya 0,2–100% F·S; kesalahan relatif gaya dan perpindahan ≤ ±0,5%
  • Kecepatan 0,01–1.000 mm/menit dengan kesalahan relatif ≤ ±0,5%
  • Ruang tarik efektif 700 mm dan ruang tekan efektif 650 mm
  • Uji kekuatan ikatan, kuat tarik, kuat lentur statis, modulus elastisitas, cabut sekrup, dan geser
Tanya via WhatsApp
Merk
HST
Kategori
Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST-MWW-10E, HST-MWW-20E, HST-MWW-50E
Max. Test Load 10 kN, 20 kN, 50 kN
Control Method Computer automatic control
Accuracy Class 0.5
Test Load Range 0.2% ~ 100% F·S
Test Value Relative Error ≤ ±0.5%
Displacement Value Relative Error ≤ ±0.5%
Displacement Resolution 0.01 mm
Speed Adjusting Range 0.01 ~ 1000 mm/min
Speed Relative Error ≤ ±0.5%
Effective Tensile Space 700 mm
Effective Compression Space 650 mm
Effective Test Width 450 (unit not stated)
Power Supply AC 220V ±10%, 50Hz
Standards GB/T 17657-1999, EN, ASTM, GB/T 16491-1996
