HST-EDG10,20,50,100,​200,300 ​High Temperature Tensile Testing Machine(-60-300℃）
HST

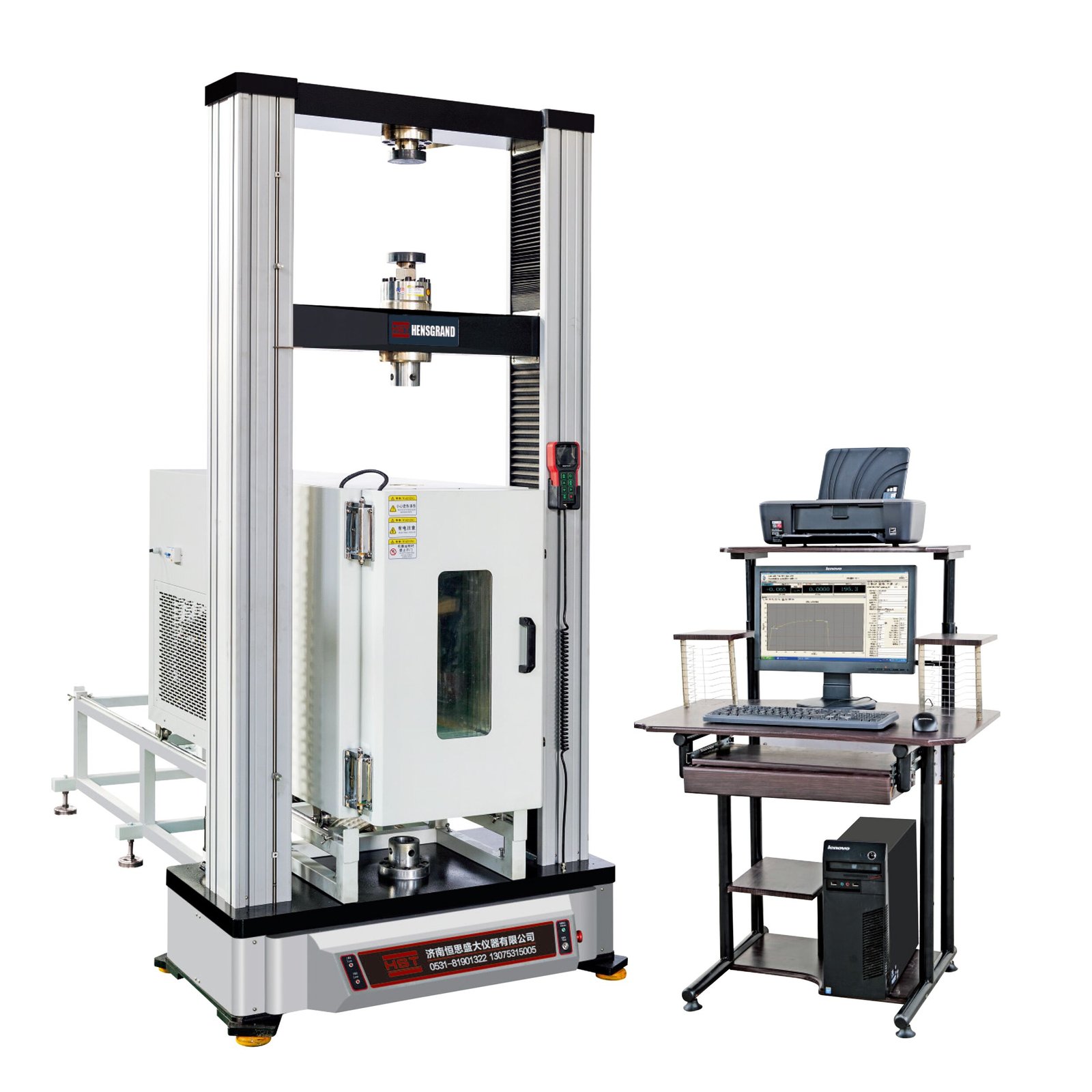

HST-EDG10,20,50,100,​200,300 ​High Temperature Tensile Testing Machine(-60-300℃）

Overview

Mesin uji tarik suhu tinggi/rendah seri HST-EDG (10 sampai 300 kN) dengan chamber −60 sampai 300°C untuk karet, plastik, metalurgi, otomotif, dan peralatan medis.

Fitur Utama

  • Tiga kelompok model: EDG10/20/50, EDG100, dan EDG200/300
  • Rentang suhu −60 sampai 300°C
  • Kontrol komputer, kelas akurasi 0,5, rentang gaya 0,2–100% F·S
  • Resolusi perpindahan 0,01 mm
  • Chamber suhu tinggi/rendah -60/-80 sampai 300°C; ukuran dalam 260 x 410 x 360 mm (atau sesuai permintaan)
  • Penjepit sesuai kebutuhan pelanggan
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST-EDG10, 20, 50 / HST-EDG100 / HST-EDG200, 300
Max. Load 10, 20, 50 kN / 100 kN / 200, 300 kN
Control Method Computer control
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Resolution of Displacement 0.01 mm
Test Speed (mm/min) EDG10/20/50: 0.001-1000
EDG100: 0.001-500
EDG200/300: 0.001-500
Tensile Space (mm) EDG10/20/50: 800
EDG100: 700
EDG200/300: 550
Compression Space (mm) EDG10/20/50: 800
EDG100: 700
EDG200/300: 550
Test Width EDG10/20/50: 400
EDG100: 550
EDG200/300: 600 (unit not stated)
Temperature Range -60°C to 300°C
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Grips According to customer’s requirement
Standards ISO, ASTM
High and Low Temperature Test Chamber
Temperature Range -60°C / -80°C to 300°C
Inner Chamber Size 260 x 410 x 360 mm, or according to customer’s requirement
