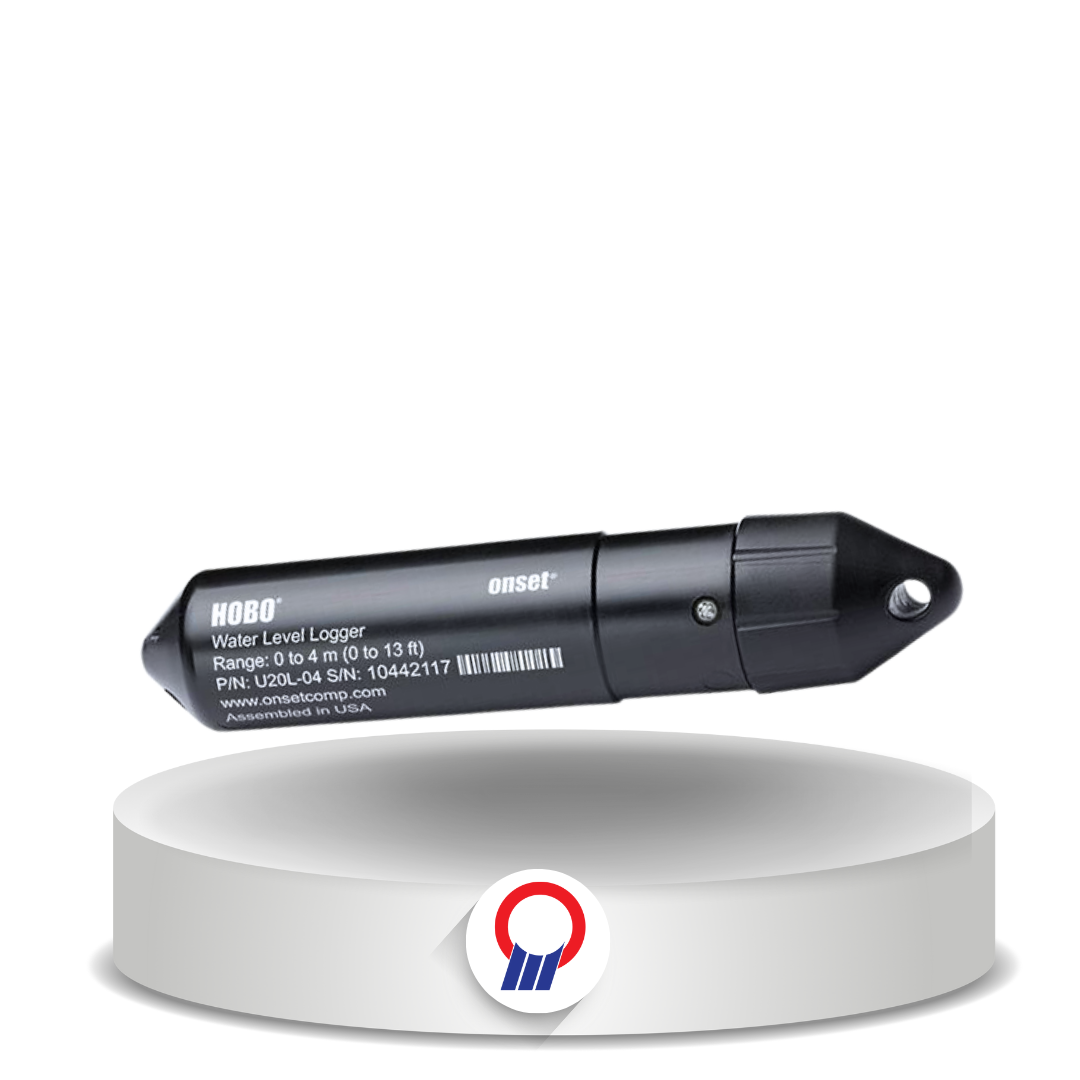

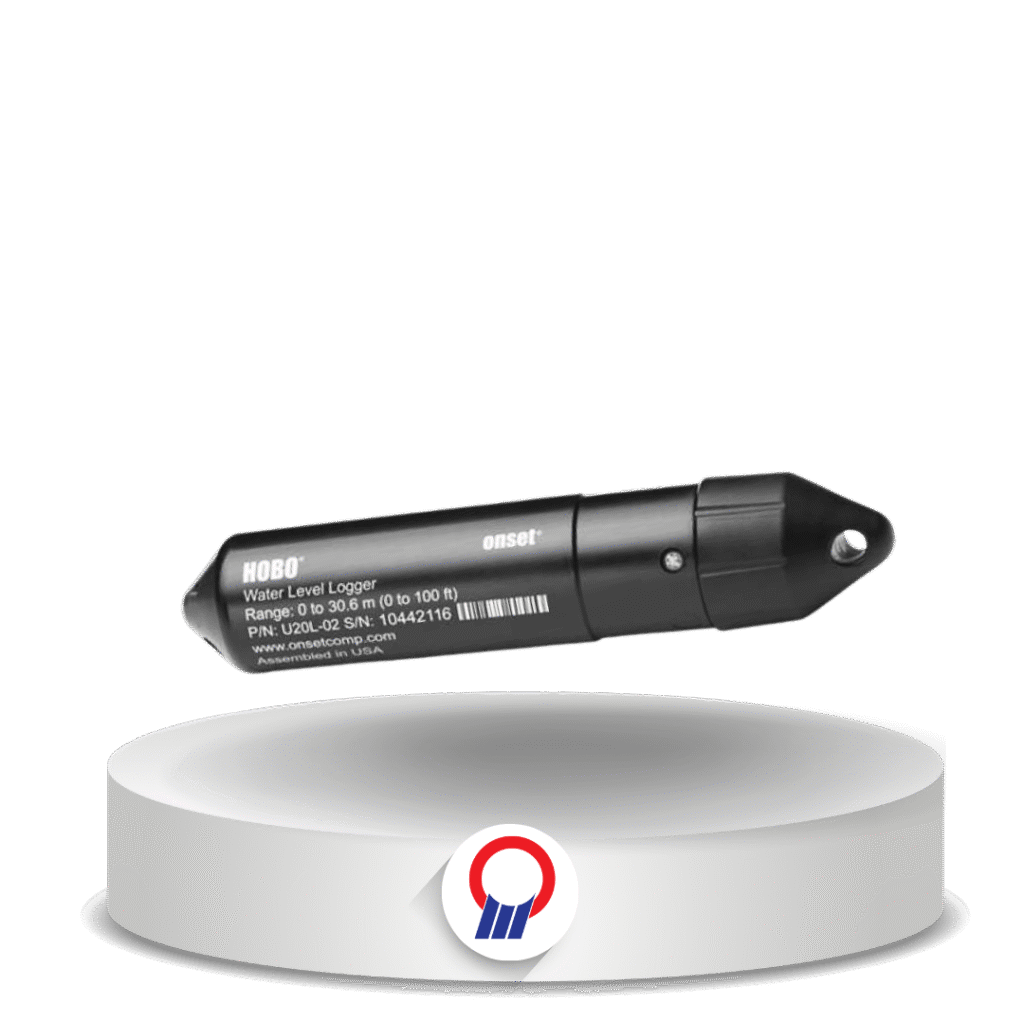

HOBO U20L
HOBO

HOBO U20L

Overview

Seri data logger untuk memantau level air dan suhu air di sumur, sungai, danau, lahan basah, dan area pasang surut. Tersedia dalam tiga rentang kedalaman: 4 m (13 ft), 9 m (30 ft), dan 30 m (100 ft), tanpa pipa ventilasi yang perlu dirawat.

Fitur Utama

  • Tiga pilihan rentang kedalaman: 4 m (U20L-04), 9 m (U20L-01), dan 30 m (U20L-02)
  • Sensor tekanan keramik dalam housing polypropylene, cocok untuk air tawar maupun air asin
  • Desain tanpa pipa ventilasi: tidak ada tabung atau desiccant yang perlu dirawat
  • Mencatat tekanan absolut dan suhu, lalu dikonversi menjadi level air di software
  • Baterai lithium 2/3 AA dengan umur tipikal 5 tahun pada interval pencatatan 1 menit atau lebih
  • Pengaturan dan pengambilan data memakai HOBO Waterproof Shuttle (U-DTW-1) atau Optic USB Base Station (BASE-U-4) dengan coupler, dan software HOBOware
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Level

Spesifikasi & Penerapan

Aplikasi
Environment Mining
Brands
HOBO

Detail Produk

Specification Value
Pressure (Absolute) & Water Level
Operation Range U20L-04: 0 to 145 kPa (approx. 0-4 m)
U20L-01: 0 to 207 kPa (approx. 0-9 m)
U20L-02: 0 to 400 kPa (approx. 0-30.6 m)
Water Level Accuracy, typical ±0.1% FS: ±0.4 cm (-04), ±1.0 cm (-01), ±3.0 cm (-02)
Water Level Accuracy, maximum ±0.2% FS: ±0.8 cm (-04), ±2.0 cm (-01), ±6.0 cm (-02)
Resolution 0.14 cm (-04), 0.21 cm (-01), 0.41 cm (-02)
Pressure Response Time (90%) <1 second at a stable temperature
Temperature
Operation Range -20° to 50°C
Accuracy ±0.44°C from 0° to 50°C
Resolution 0.10°C at 25°C
Response Time (90%) 10 minutes in water (typical)
Logger
Memory 64 KB, non-volatile (approx. 21,700 samples)
Logging Interval 1 second to 18 hours; fixed rate or up to 8 user-defined intervals
Battery 2/3 AA, 3.6 V lithium, factory-replaceable; 5 years typical (1-minute interval)
Required Accessories COUPLER2-C with BASE-U-4 or U-DTW-1; HOBOware Pro
Physical
Dimensions 3.18 cm diameter x 15.24 cm length
Weight Approx. 154 g in air
Environmental Rating IP68
