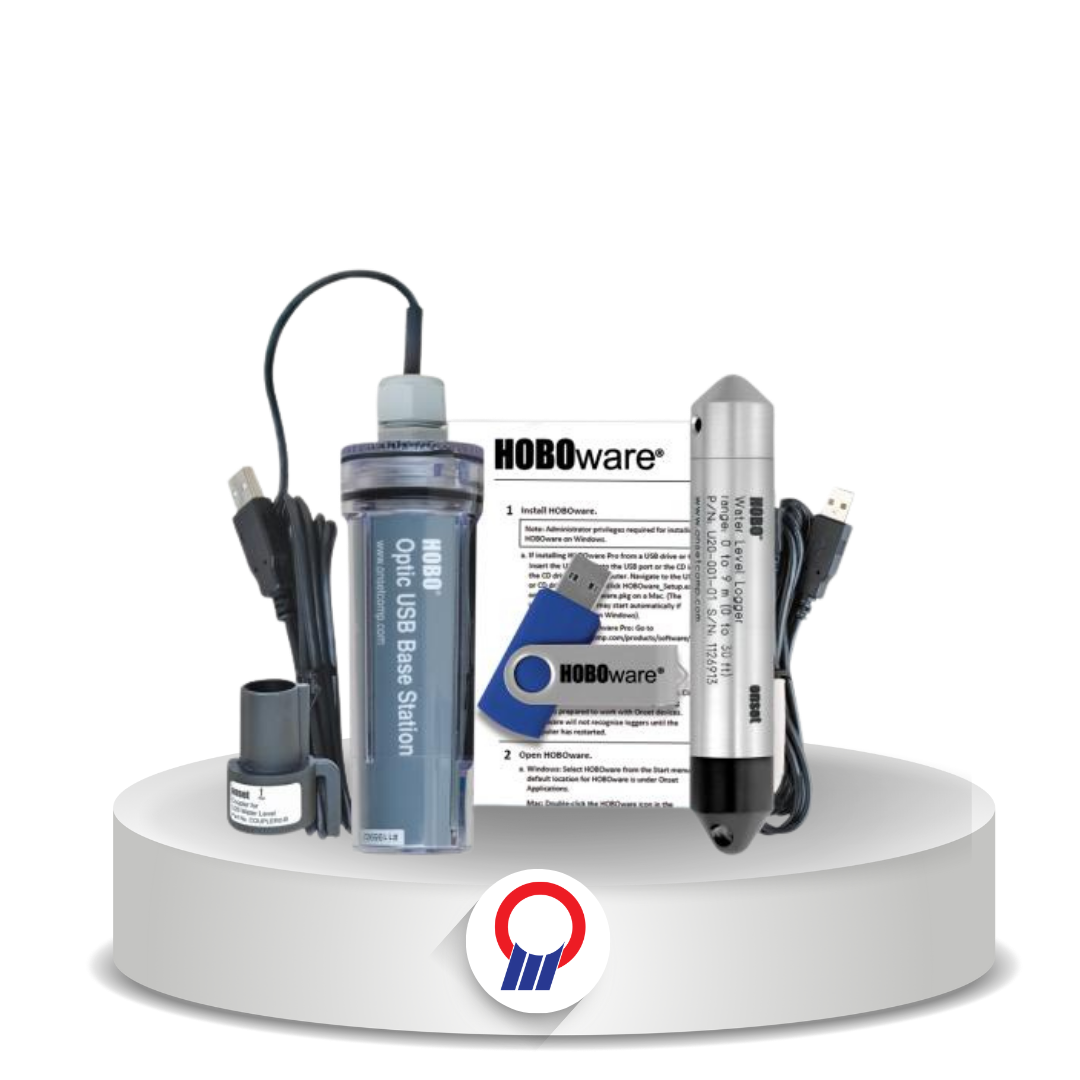

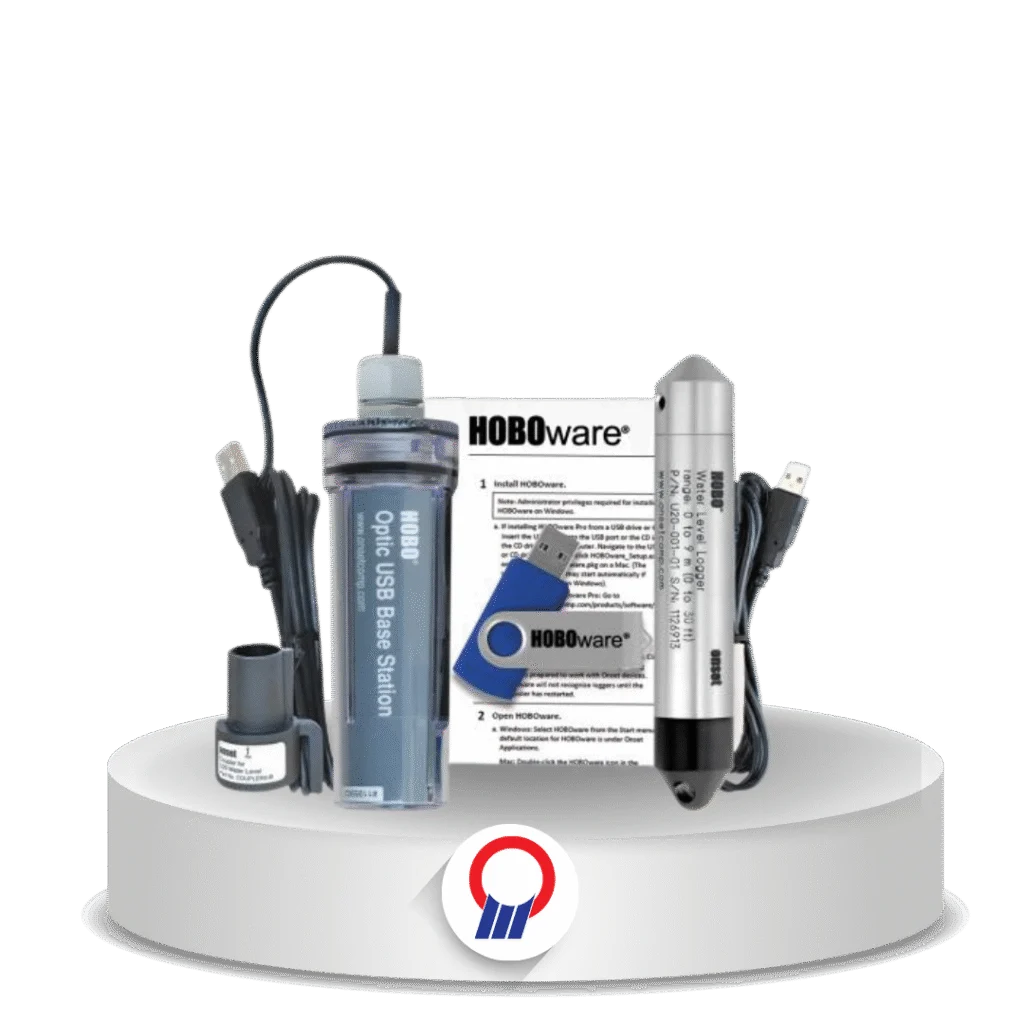

HOBO Water Level Data Logger Starter Kit (30’)
HOBO

HOBO Water Level Data Logger Starter Kit (30’)

Overview

Paket hemat berisi logger level air dan suhu air HOBO U20 untuk kedalaman 9 m (30 ft), berikut perlengkapan untuk langsung memulai pencatatan data.

Fitur Utama

  • Kit Starter dengan logger level air U20 rentang 9 m (30 ft)
  • Mencatat level air dan suhu pada sumur, sungai, danau, dan lahan basah air tawar
  • Paket hemat berisi perlengkapan untuk langsung memulai pencatatan data
  • Tanpa pengaturan rumit
  • Akurasi level air tipikal ±0.5 cm (0.015 ft); ±0.05% FS
  • Rentang suhu −20 sampai 50°C
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Level

Spesifikasi & Penerapan

Aplikasi
Environment Mining

Detail Produk

Specification Value
Pressure (Absolute) & Water Level — 9 m (30 ft)
Range 0-9 m (0-30 ft); 0-207 kPa (0-30 psia)
Factory Calibrated Range 69 to 207 kPa (10-30 psia), 0° to 40°C
Water Level Accuracy (typical error) ±0.5 cm (0.015 ft); ±0.05% FS
Resolution 0.21 cm (0.007 ft)
Burst Pressure 310 kPa (45 psia); 18 m (60 ft) depth
Temperature (all models)
Range -20° to 50°C
Accuracy ±0.37° at 20°C; ±0.44° from 0° to 50°C
Resolution (10 bit) 0.1° at 20°C
Response Time 3.5 minutes (to 90% in water)
Physical
Dimensions 2.46 cm diameter x 15 cm; hole in mounting bail 6.3 mm
Compliance CE
