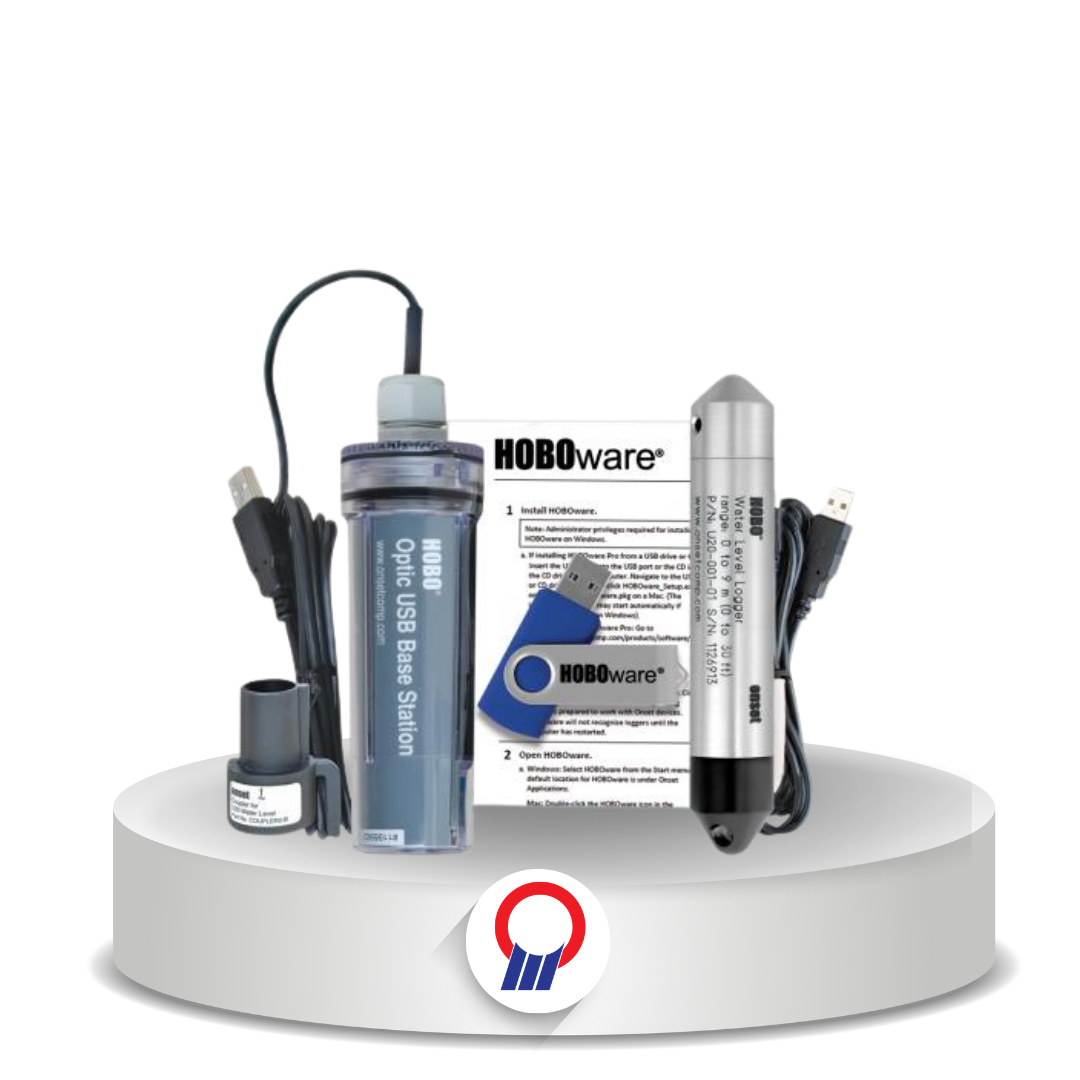

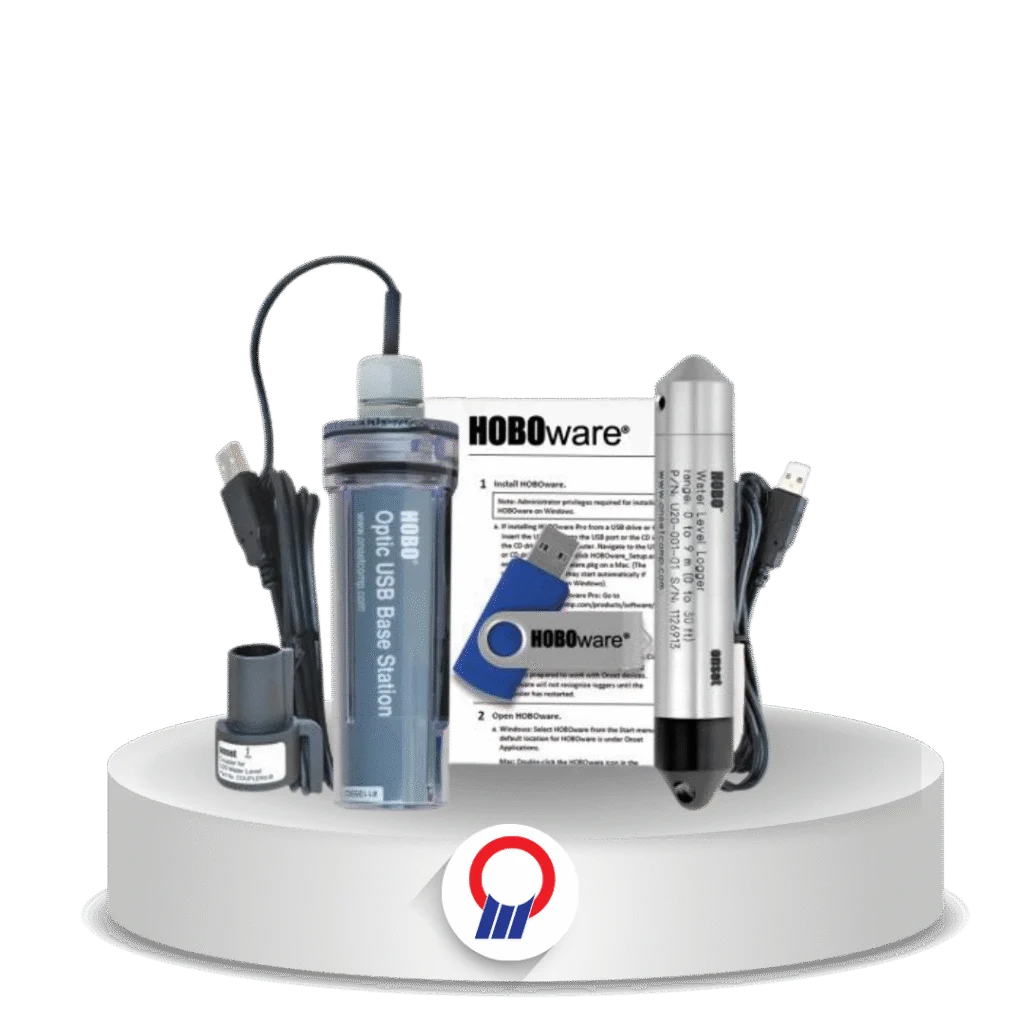

HOBO Water Level Data Logger Starter Kit (100’)
HOBO

HOBO Water Level Data Logger Starter Kit (100’)

Overview

Paket hemat berisi logger level air dan suhu air HOBO U20 untuk kedalaman 30 m (100 ft), berikut perlengkapan untuk langsung memulai pencatatan data.

Fitur Utama

  • Kit Starter dengan logger level air U20 rentang 30 m (100 ft)
  • Mencatat level air dan suhu pada sumur, sungai, danau, dan lahan basah air tawar
  • Paket hemat berisi perlengkapan untuk langsung memulai pencatatan data
  • Tanpa pengaturan rumit
  • Akurasi level air tipikal ±1.5 cm (0.05 ft); ±0.05% FS
  • Rentang suhu −20 sampai 50°C
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Level

Spesifikasi & Penerapan

Aplikasi
Environment Mining

Detail Produk

Specification Value
Pressure (Absolute) & Water Level — 30 m (100 ft)
Range 0-30 m (0-100 ft); 0-400 kPa (0-58 psia)
Factory Calibrated Range 69 to 400 kPa (10-58 psia), 0° to 40°C
Water Level Accuracy (typical error) ±1.5 cm (0.05 ft); ±0.05% FS
Resolution 0.41 cm (0.013 ft)
Burst Pressure 500 kPa (72.5 psia); 40.8 m (134 ft) depth
Temperature (all models)
Range -20° to 50°C
Accuracy ±0.37° at 20°C; ±0.44° from 0° to 50°C
Resolution (10 bit) 0.1° at 20°C
Response Time 3.5 minutes (to 90% in water)
Physical
Dimensions 2.46 cm diameter x 15 cm; hole in mounting bail 6.3 mm
Compliance CE
