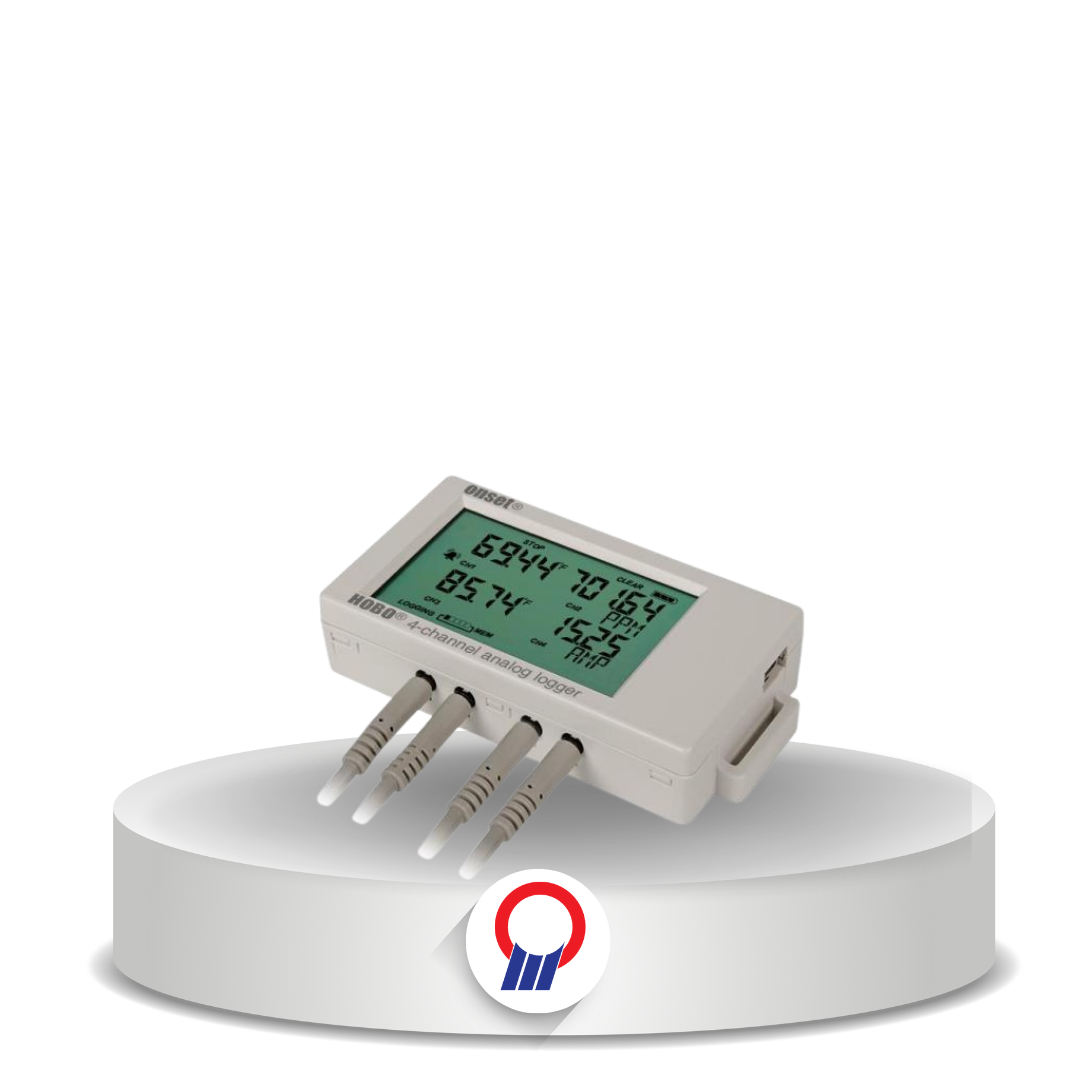

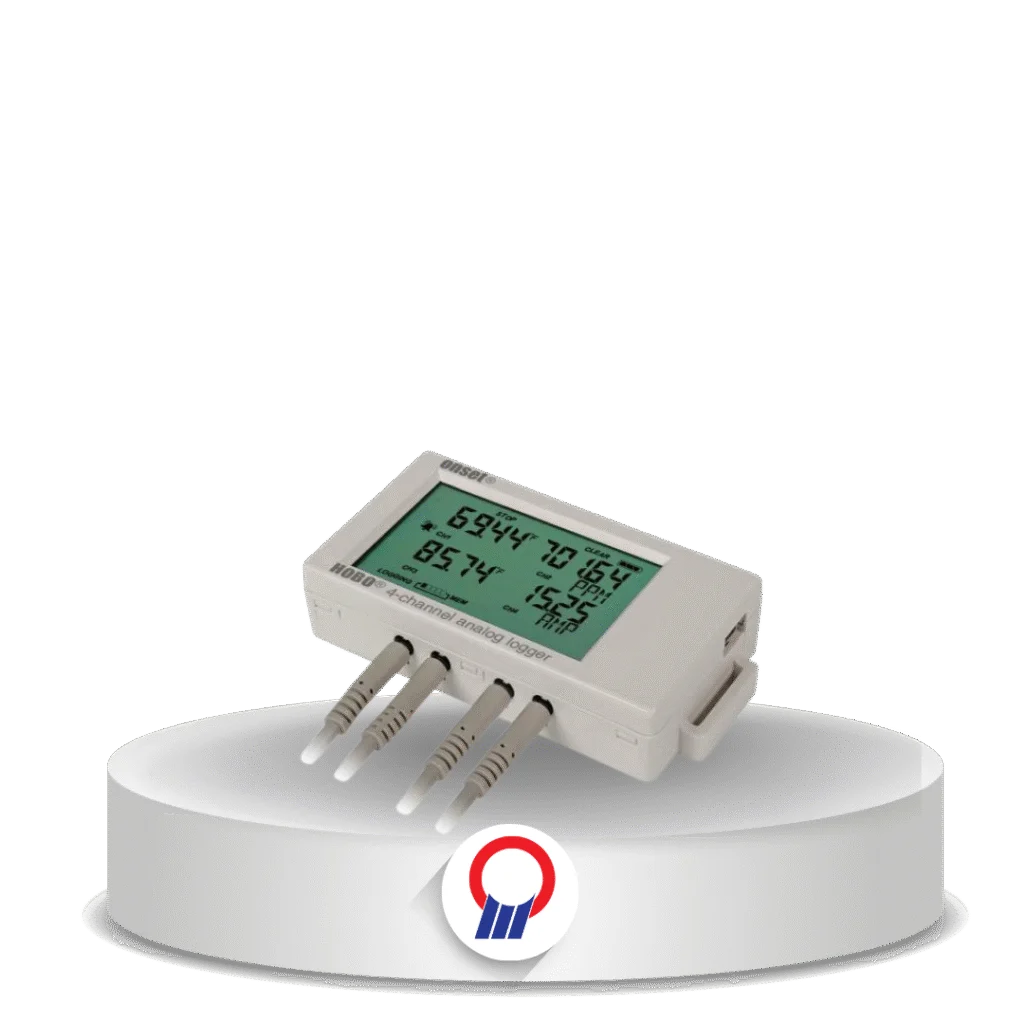

HOBO UX120-006M 4-Channel Analog Data Logger
HOBO

HOBO UX120-006M 4-Channel Analog Data Logger

Overview

Data logger empat kanal analog berlayar LCD dengan koneksi USB, untuk merekam arus, tegangan, suhu, tekanan, CO₂, dan aliran udara dari sensor eksternal, khusus untuk aplikasi pemantauan kinerja bangunan.

Fitur Utama

  • Resolusi 16-bit dengan akurasi dua kali lebih baik dibanding model sebelumnya
  • Mendukung beragam sensor eksternal
  • Layar LCD menampilkan status logger dan data hampir real time
  • Pilihan pencatatan minimum, maksimum, rata-rata, dan simpangan baku
  • Alarm di layar saat pembacaan melewati batas
  • Memori hingga 1,9 juta pengukuran
Tanya via WhatsApp
Merk
HOBO
Kategori
Multi-Channel & Event Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Environment

Detail Produk

Specification Value
Supported Measurements (with compatible external sensors)

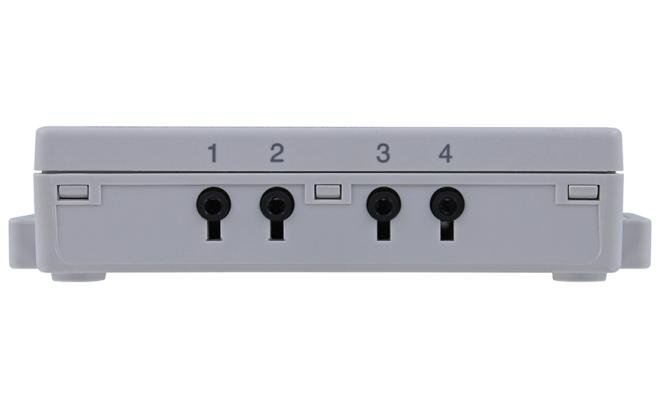

Inputs 4 analog channels
Measurements 4-20 mA, AC current, AC voltage, air velocity, carbon dioxide, compressed air flow, DC current, DC voltage, differential pressure, gauge pressure, kilowatts (kW), temperature
Logger
Operating Range (logging) -20° to 70°C; 0 to 95% RH (non-condensing)
Operating Range (launch/readout) 0° to 50°C per USB specification
Logging Rate 1 second to 18 hours, 12 minutes, 15 seconds
Logging Modes Normal, burst, or statistics
Memory Modes Wrap when full or stop when full
Time Accuracy ±1 minute per month at 25°C
Memory 4 MB (1.9 million measurements, maximum)
Full Memory Download Time Approx. 1.5 minutes
Battery Two AAA 1.5 V alkaline, user replaceable; 1 year typical (1-minute logging, sampling 15 seconds or greater)
Size 10.8 x 5.41 x 2.54 cm
Weight 107.5 g
Environmental Rating IP50
