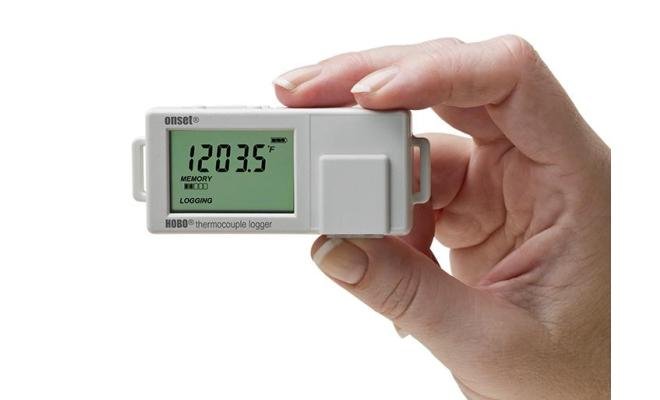

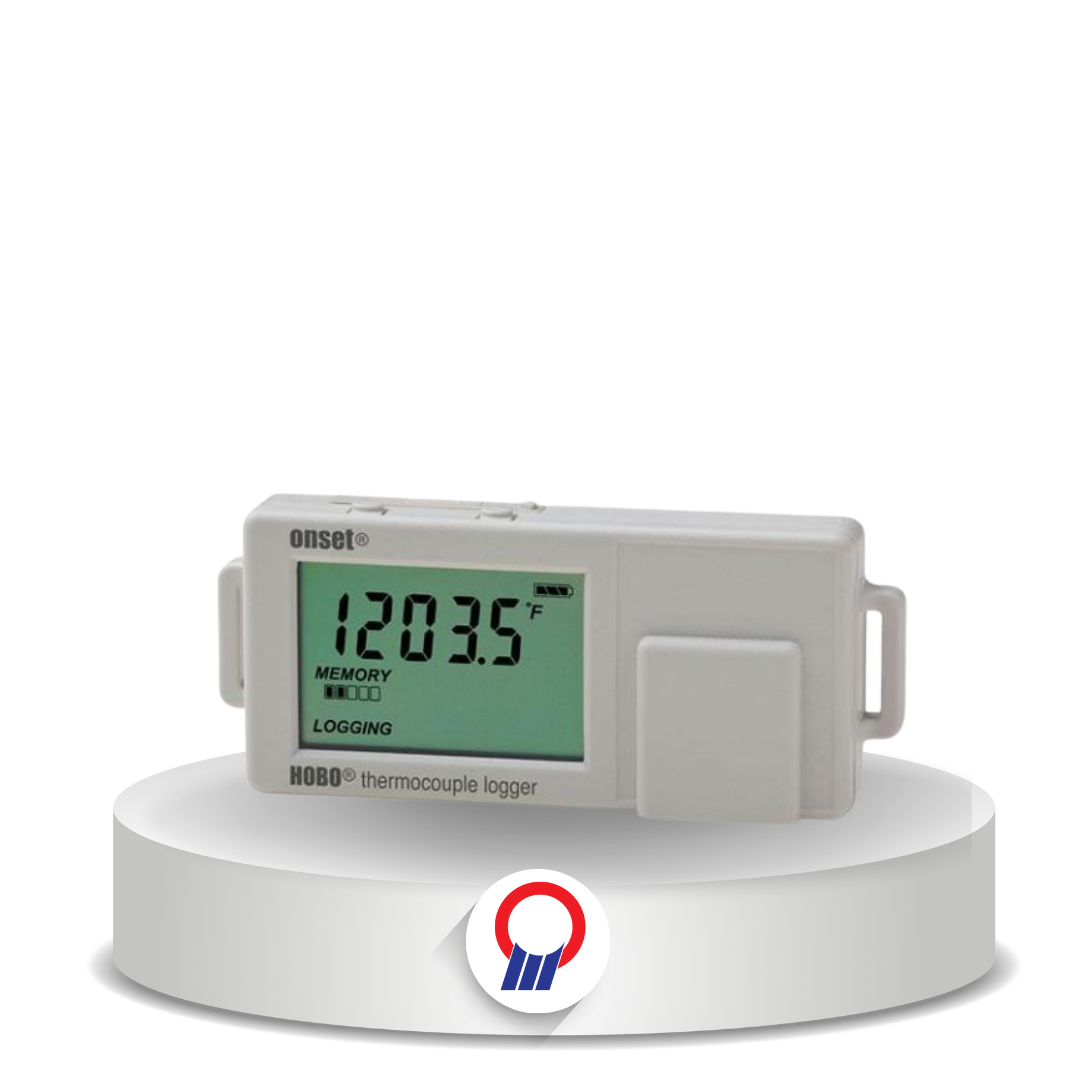

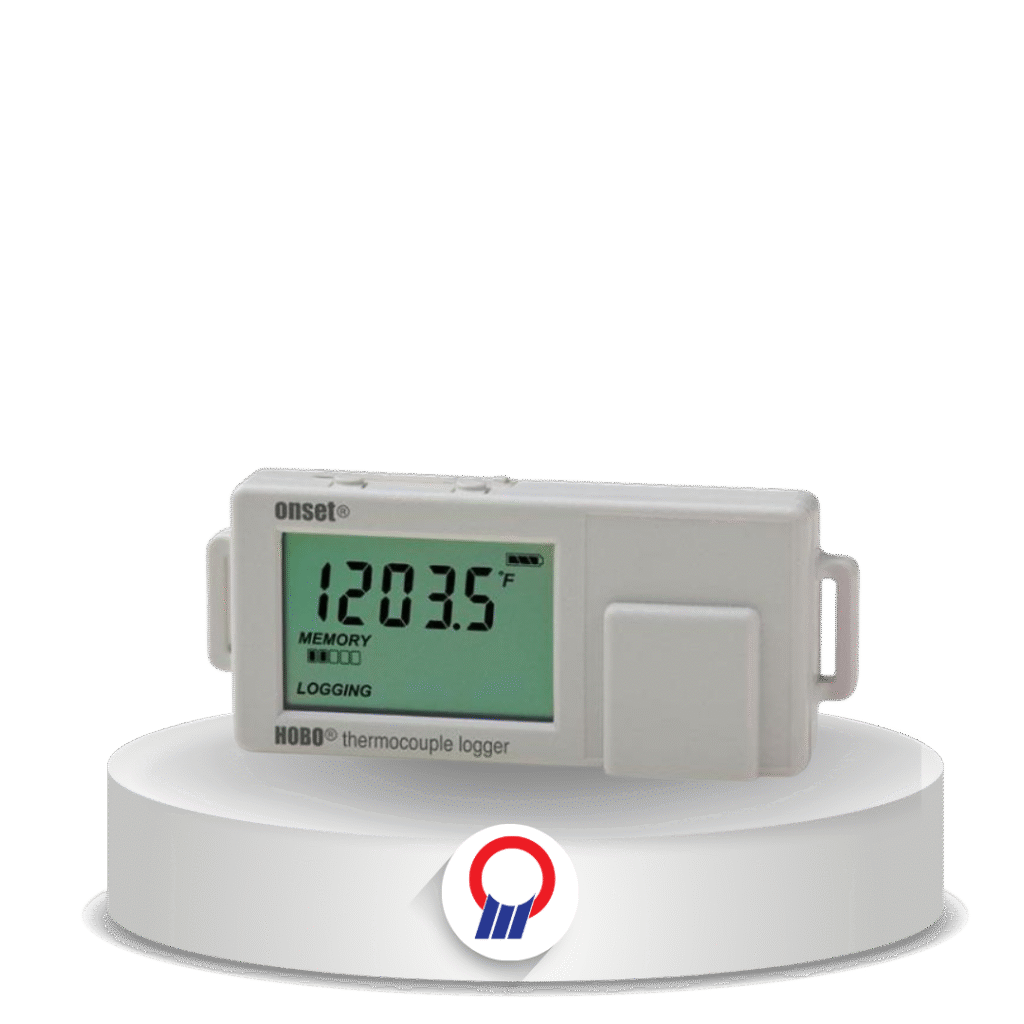

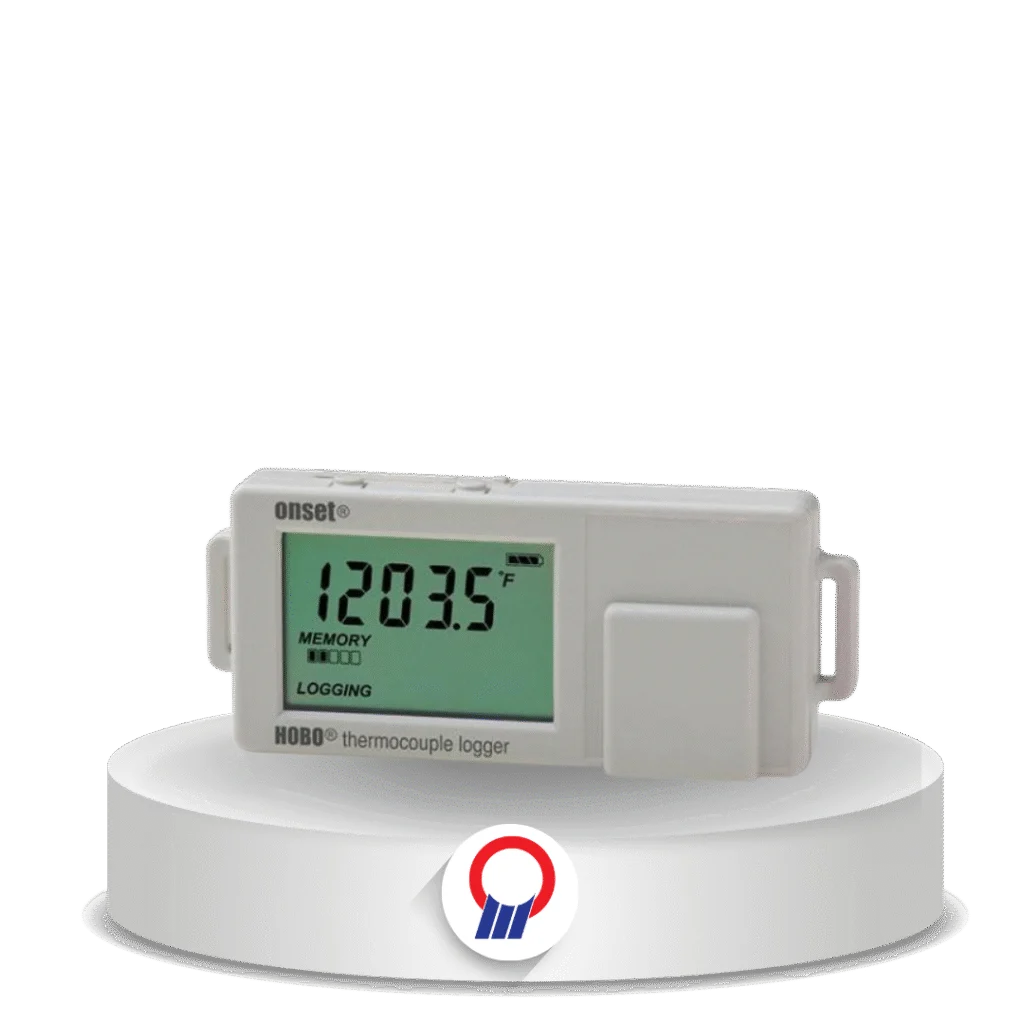

HOBO UX100-014M Type J, K, T, E, R, S, B, N Thermocouple Data Logger
HOBO

HOBO UX100-014M Type J, K, T, E, R, S, B, N Thermocouple Data Logger

Overview

Data logger termokopel satu kanal berlayar LCD untuk mengukur dan mencatat suhu di dalam ruangan. Menerima probe termokopel tipe J, K, T, E, R, S, B, atau N (dijual terpisah).

Fitur Utama

  • Mendukung termokopel tipe J, K, T, E, R, S, B, dan N
  • Layar LCD yang mudah dibaca
  • Alarm batas atas dan bawah yang terlihat di layar
  • Mode pencatatan burst dan statistik
  • Memori 208.076 pengukuran dan antarmuka USB 2.0
  • Probe termokopel dijual terpisah
Tanya via WhatsApp
Merk
HOBO
Kategori
Temperature & RH Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Logistic & Storage

Detail Produk

Specification Value
Thermocouple (probes sold separately)
Type J -210° to 760°C; ±0.6°C ± probe accuracy; resolution 0.03°C
Type K -260° to 1,370°C; ±0.7°C ± probe accuracy; resolution 0.04°C
Type T -260° to 400°C; ±0.6°C ± probe accuracy; resolution 0.02°C
Type E -260° to 950°C; ±0.6°C ± probe accuracy; resolution 0.03°C
Type R -50° to 1,550°C; ±2.2°C ± probe accuracy; resolution 0.08°C
Type S -50° to 1,720°C; ±2.2°C ± probe accuracy; resolution 0.08°C
Type B 550° to 1,820°C; ±2.5°C ± probe accuracy; resolution 0.1°C
Type N -260° to 1,300°C; ±1.0°C ± probe accuracy; resolution 0.06°C
Logger
Memory 208,076 measurements
Sampling Rate 1 second to 18 hours, user-selectable
Battery CR2032, user-replaceable; 1 year typical (1-minute logging, sampling interval 15 seconds or greater)
Operating Range Logging: -20° to 70°C; 0 to 95% RH (non-condensing)
Dimensions 3.66 x 8.48 x 1.52 cm
