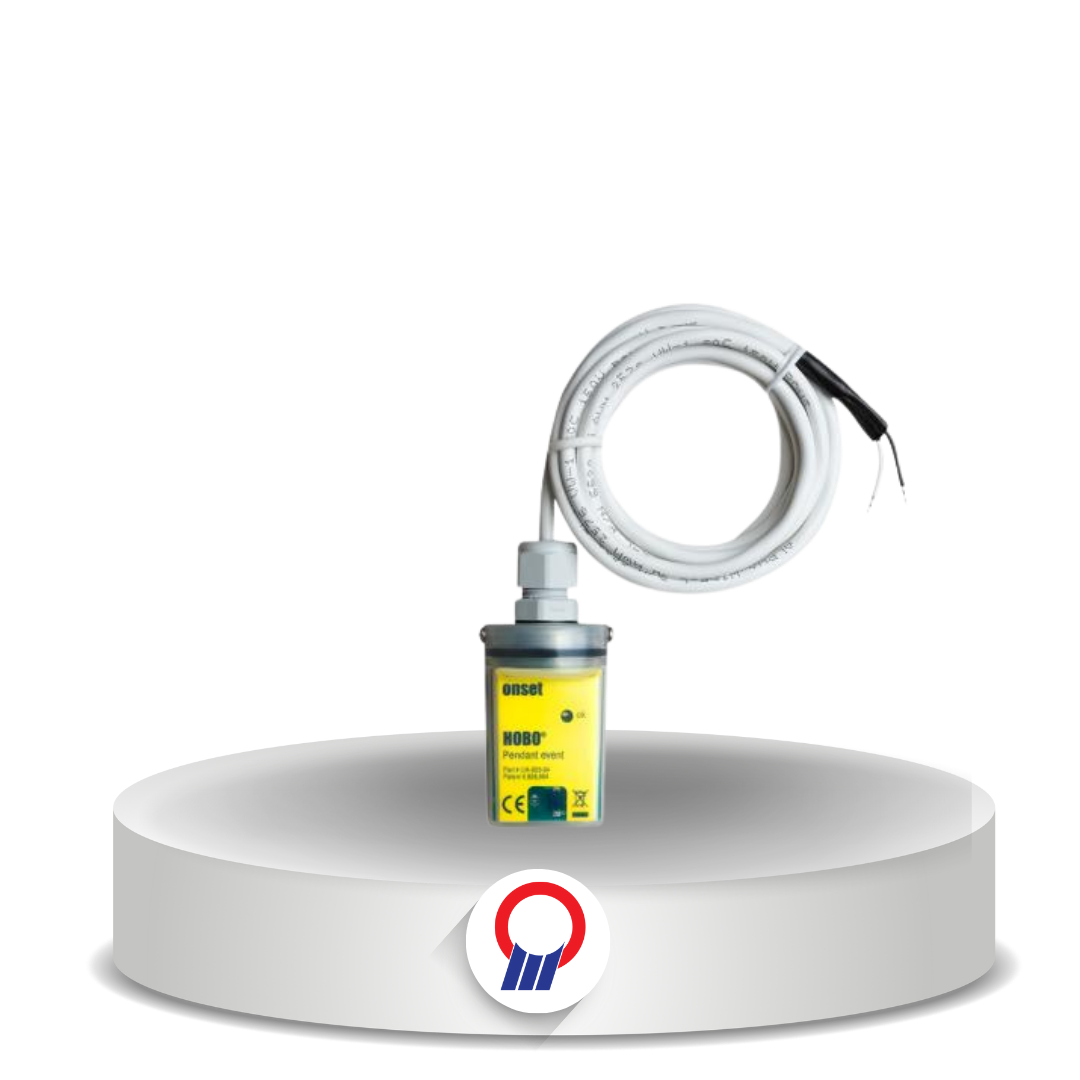

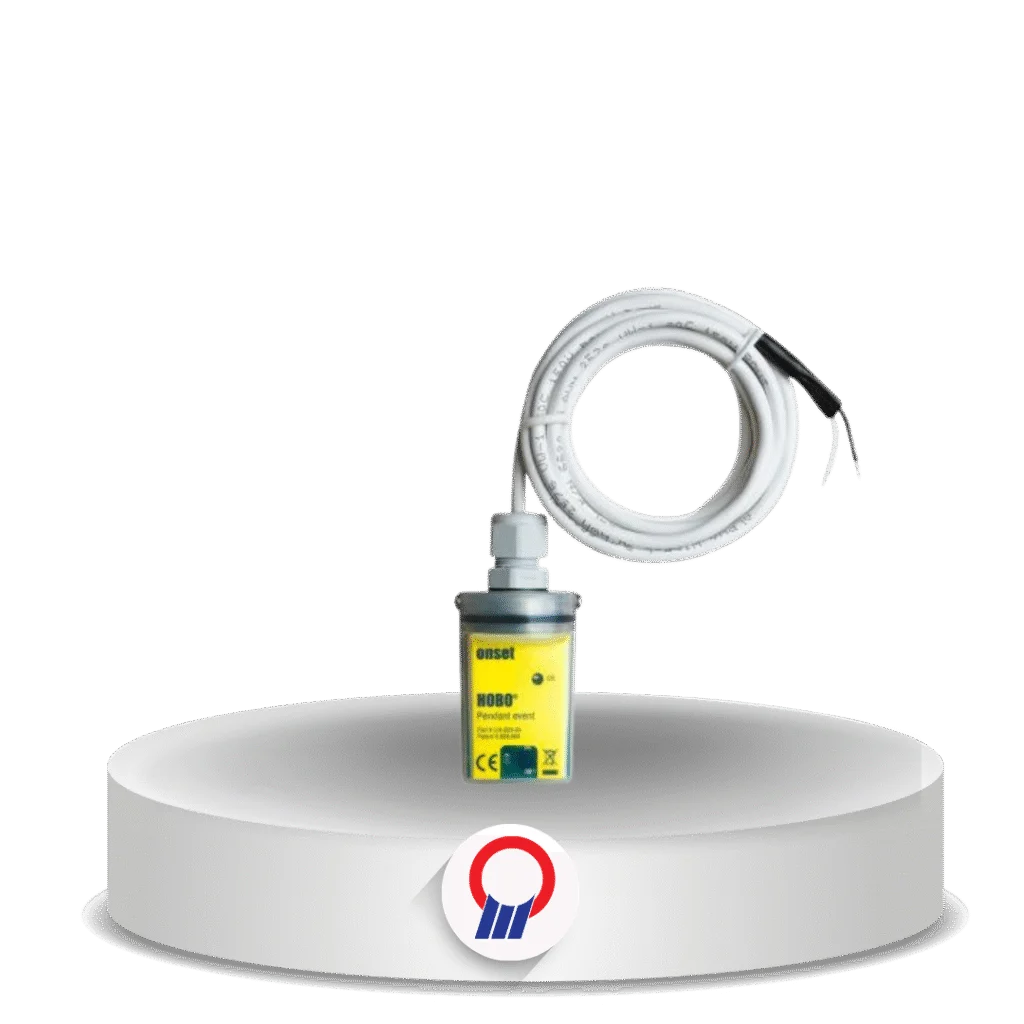

HOBO UA-003-64 Pendant Event Data Logger
HOBO

HOBO UA-003-64 Pendant Event Data Logger

Overview

Logger event untuk mengukur curah hujan bersama penakar hujan tipping-bucket standar. Menentukan laju, waktu, dan durasi hujan, sekaligus mencatat suhu.

Fitur Utama

  • Ideal untuk penakar hujan tipping-bucket
  • Penyimpanan berbasis kejadian: data hanya disimpan saat kejadian terjadi
  • Menyimpan lebih dari 16.000 tip (160 inci hujan dengan penakar 0,01 inci)
  • Dapat diskalakan ke inci, milimeter, atau satuan lain
  • Housing NEMA 6 / IP67 untuk pemasangan di luar ruangan
  • Mencatat suhu dengan akurasi ±0,53°C
Tanya via WhatsApp
Merk
HOBO
Kategori
Multi-Channel & Event Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Environment

Detail Produk

Specification Value
External Event Input
Maximum Input Frequency 1 Hz (1 pulse per second)
Lockout Time 500 ms
Minimum Pulse Width 1 ms (hardware debounce)
Input/Output Impedance 100 kΩ
Preferred Switch Type Normally open (normally closed works but shortens battery life)
Open Circuit Input Voltage Battery voltage; nominally 3.0 V
Maximum Input Voltage Battery voltage + 0.3 V
User Connection 24 AWG, 2 leads: white (+), black (-)
Temperature Measurement
Measurement Range -20° to 70°C
Accuracy ±0.53°C from 0° to 50°C
Resolution 0.14°C at 25°C
Drift <0.1°C per year
Response Time 10 minutes typical to 90% in airflow of 2 m/s
Logger
Time Accuracy ±1 minute per month at 25°C
Operating Range -20° to 70°C
Environmental Rating NEMA 6 and IP67
Battery CR2032 3 V lithium; 1 year typical
Memory 64 KB
Dimensions / Weight 71 x 33 x 23 mm, cable 1.8 m; 50 g
Materials Polypropylene case; stainless steel screws; Buna-N o-ring; PVC cable insulation
