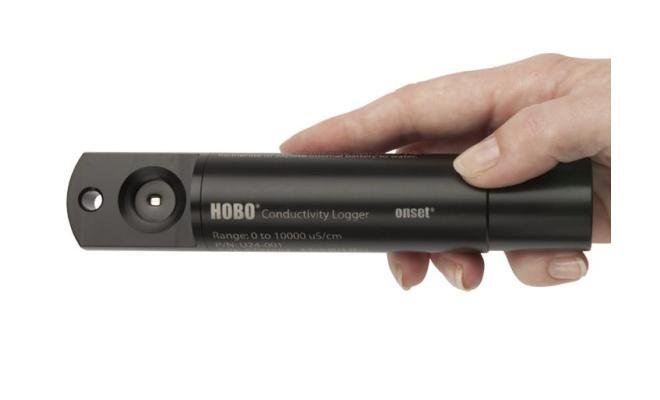

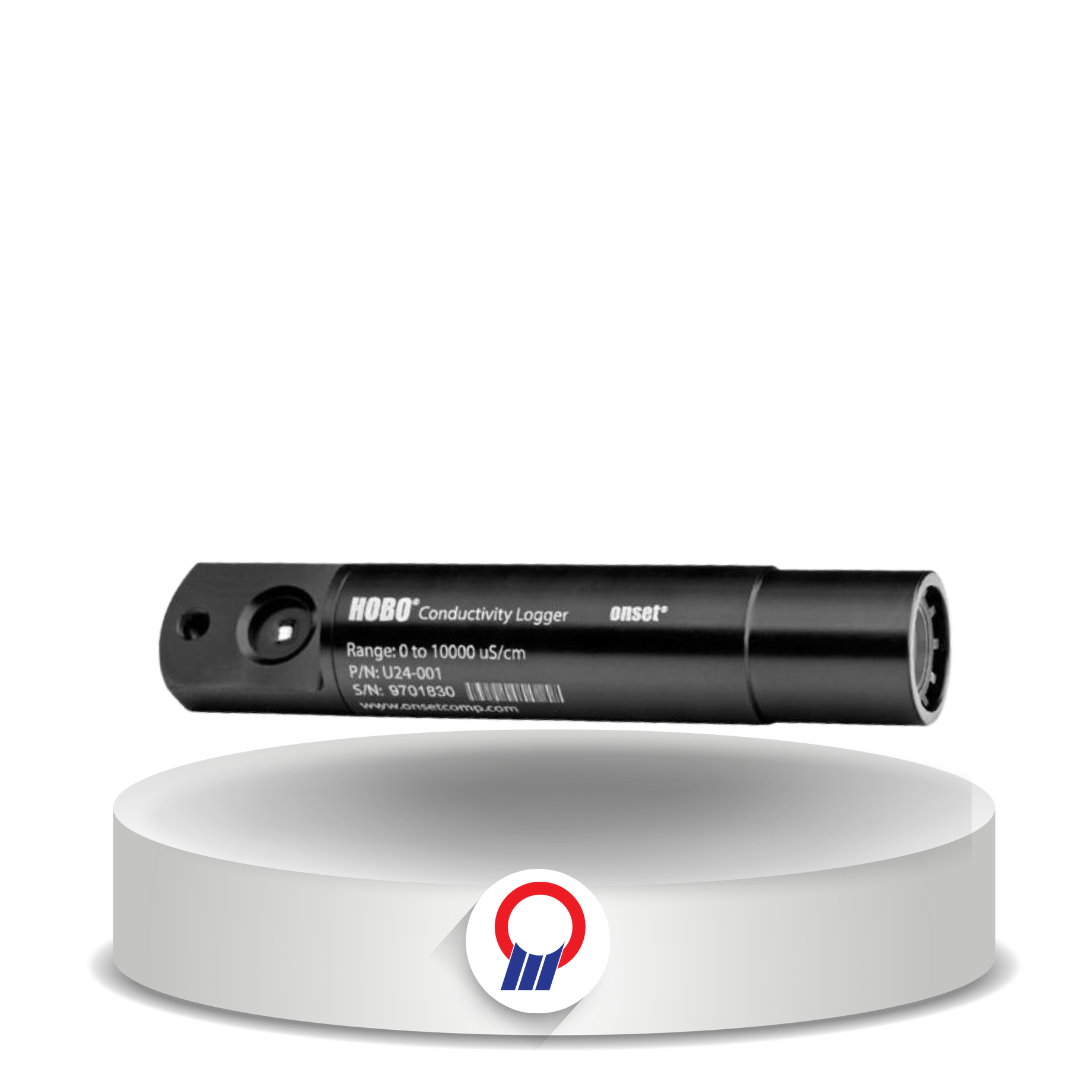

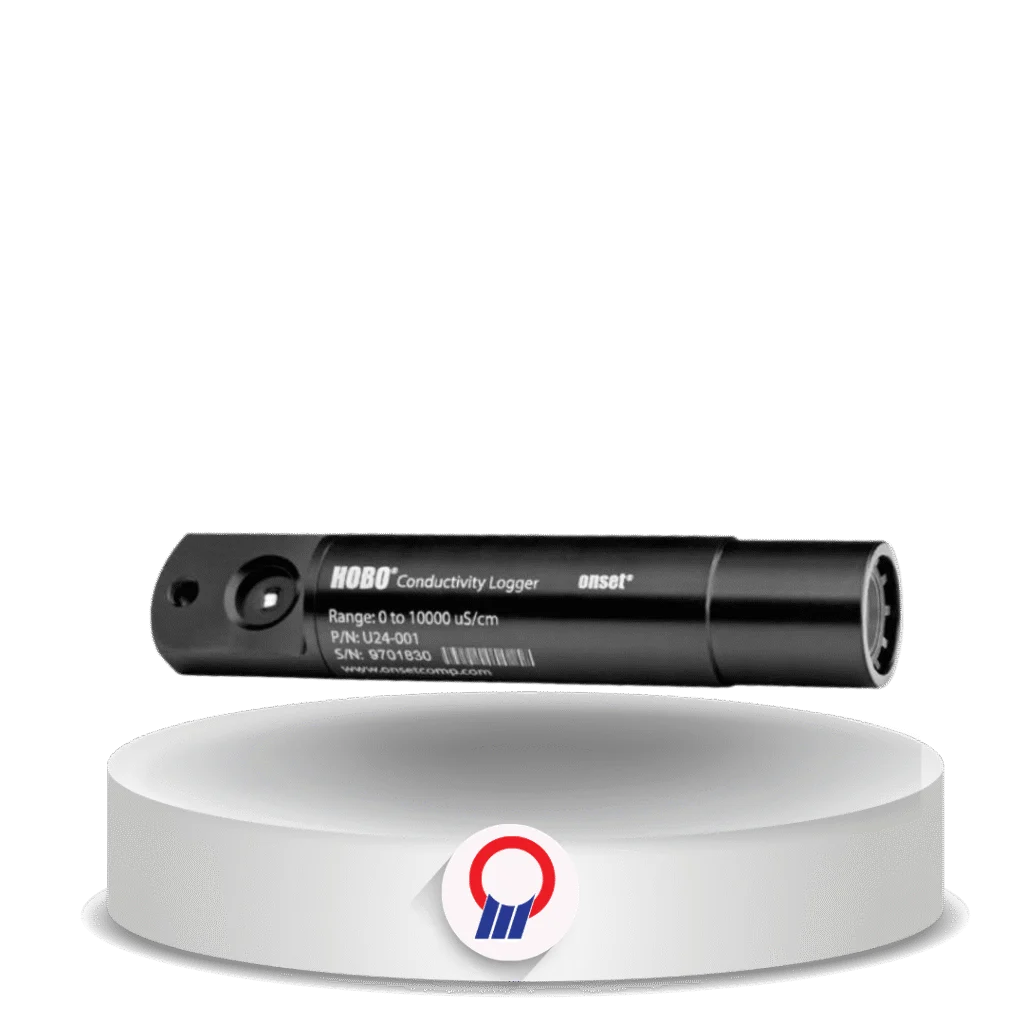

HOBO U24-001 Fresh Water Conductivity Data Logger
HOBO

HOBO U24-001 Fresh Water Conductivity Data Logger

Overview

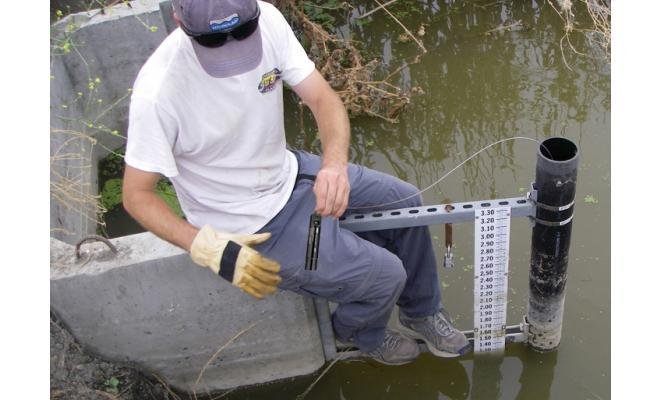

Data logger konduktivitas dan suhu berakurasi tinggi untuk air tawar. Cocok untuk studi dampak lingkungan, manajemen air hujan, dan kualitas air.

Fitur Utama

  • Akses sensor mudah untuk membersihkan dan mengeluarkan gelembung udara
  • HOBOware Pro mengkompensasi fouling memakai titik kalibrasi awal dan akhir tiap pemasangan
  • Antarmuka optik untuk pengunduhan cepat dan andal di lingkungan basah
  • Kompatibel dengan HOBO Waterproof Shuttle
  • Kedalaman maksimum 70 m (225 ft)
  • Memori 18.500 pengukuran (satu rentang konduktivitas)
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Quality Logger

Spesifikasi & Penerapan

Aplikasi
Environment Oceanography

Detail Produk

Specification Value
Conductivity (U24-001)
Calibrated Measurement Ranges Low Range 0 to 1,000 µS/cm; Full Range 0 to 10,000 µS/cm
Calibrated Temperature Range 5° to 35°C
Specific Conductance Accuracy Low Range: 3% of reading or 5 µS/cm; Full Range: 3% of reading or 20 µS/cm, whichever is greater (using Conductivity Assistant and calibration measurements)
Resolution (typical) 1 µS/cm
Drift Less than 3% sensor drift per year
Temperature
Accuracy (in calibrated range) 0.1°C
Resolution 0.01°C
Response Time 1 second to 90% (in water)
Measurement and Operating Range 0° to 36°C, non-freezing
Logger
Sample Rate 1 second to 18 hours; fixed or up to 8 user-defined intervals
Time Accuracy ±1 minute per month
Battery 3.6 V lithium; approx. 3 years at 1-minute logging
Memory 18,500 measurements (one range) or 14,400 sets (both ranges), 64 KB
Maximum Depth 70 m (225 ft)
Dimensions 3.18 cm diameter x 16.5 cm; 6.3 mm mounting hole
