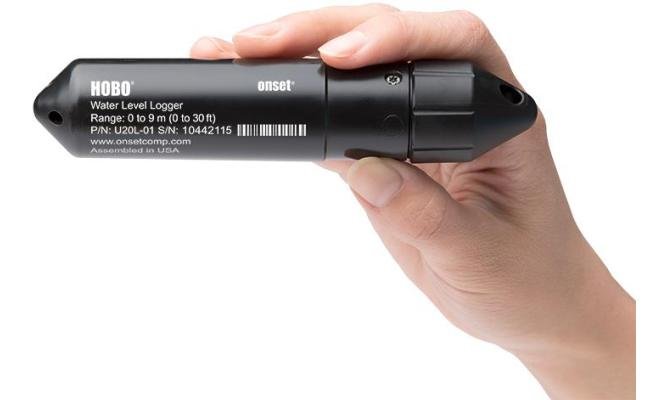

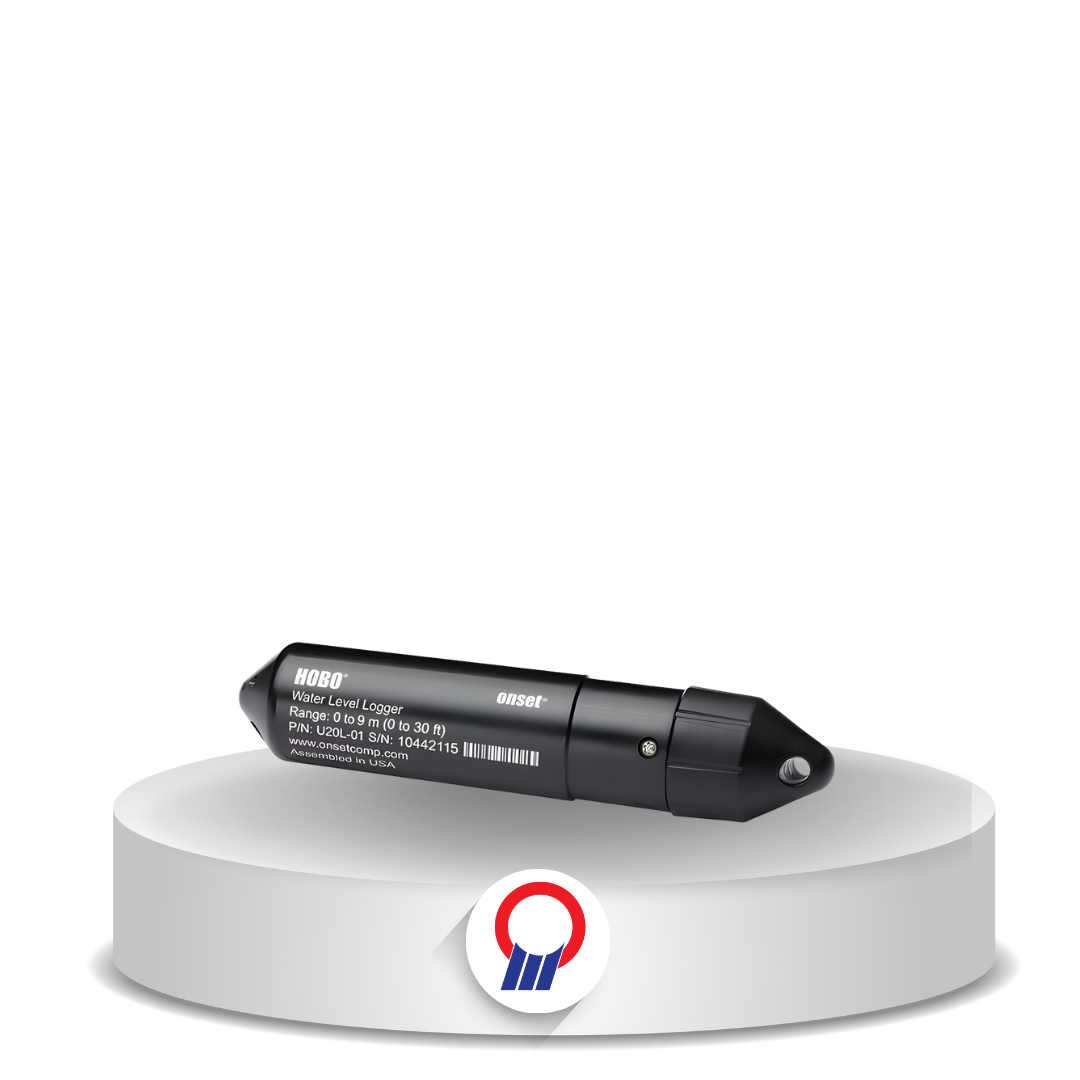

HOBO U20L-02
HOBO

HOBO U20L-02

Overview

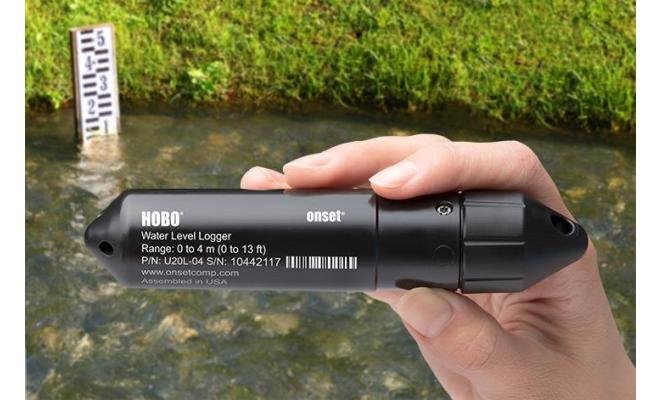

Data logger level air dan suhu air untuk kedalaman hingga 30 m (100 ft). Mencatat tekanan absolut dan suhu di sumur, sungai, danau, lahan basah, dan air tanah, di air tawar maupun air asin.

Fitur Utama

  • Rentang kedalaman 0–30,6 m (100 ft) pada permukaan laut
  • Sensor tekanan keramik dalam housing polypropylene, cocok untuk air tawar maupun air asin
  • Desain tanpa pipa ventilasi: tidak ada tabung atau desiccant yang perlu dirawat
  • Mencatat tekanan absolut dan suhu, lalu dikonversi menjadi level air di software
  • Baterai lithium 2/3 AA dengan umur tipikal 5 tahun pada interval pencatatan 1 menit atau lebih
  • Pengaturan dan pengambilan data memakai HOBO Waterproof Shuttle (U-DTW-1) atau Optic USB Base Station (BASE-U-4) dengan coupler, dan software HOBOware
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Level

Spesifikasi & Penerapan

Aplikasi
Environment Mining

Detail Produk

Specification Value
Pressure (Absolute) & Water Level — U20L-02
Operation Range 0 to 400 kPa (0-58 psia); approx. 0 to 30.6 m (0-100 ft) water depth at sea level
Factory Calibrated Range 69 to 400 kPa (10-58 psia), 0° to 40°C
Burst Pressure 500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy, typical ±0.1% FS, 3.0 cm (0.1 ft) water
Water Level Accuracy, maximum ±0.2% FS, 6.0 cm (0.2 ft) water
Raw Pressure Accuracy ±0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%) <1 second at a stable temperature
Temperature (all models)
Operation Range -20° to 50°C
Accuracy ±0.44°C from 0° to 50°C
Resolution 0.10°C at 25°C
Response Time (90%) 10 minutes in water (typical)
Stability (Drift) 0.1°C per year
Logger
Real-time Clock ±1 minute per month, 0° to 50°C
Battery 2/3 AA, 3.6 V lithium, factory-replaceable
Battery Life 5 years with 1-minute or greater logging interval
Memory 64 KB, non-volatile (approx. 21,700 pressure and temperature samples)
Logging Interval 1 second to 18 hours; fixed rate or up to 8 user-defined intervals and durations
Launch / Offload Immediate or delayed start; offload while logging or stop and offload
Required Accessories COUPLER2-C with BASE-U-4 Optic USB Base Station or U-DTW-1 Waterproof Shuttle; HOBOware Pro
Physical
Dimensions 3.18 cm diameter x 15.24 cm length; mounting hole 6.3 mm
Weight Approx. 154 g in air; approx. 53.9 g in fresh water

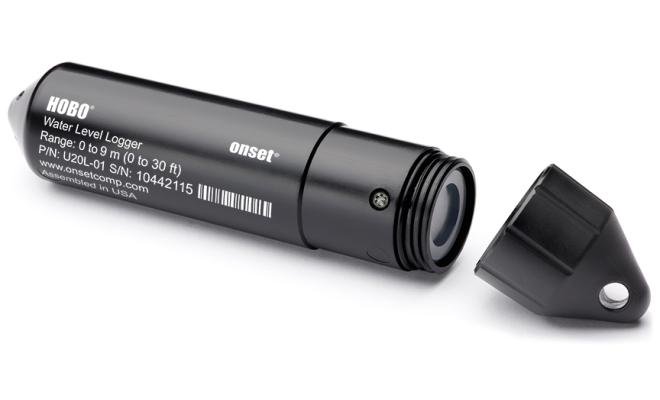

Wetted Materials Polypropylene housing and lanyard; Viton and Buna-N O-rings; ceramic sensor in acetal end cap; stainless steel screws
Environmental Rating IP68
