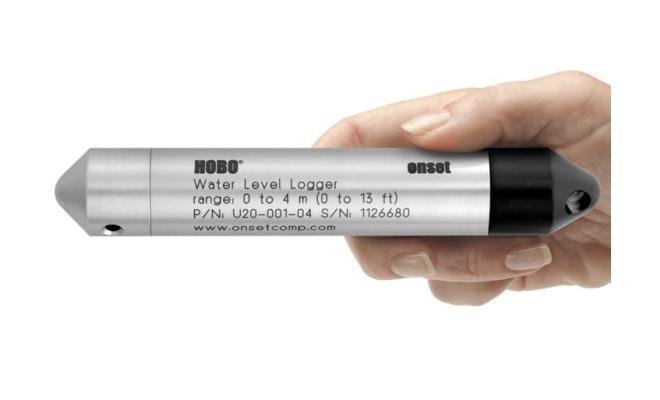

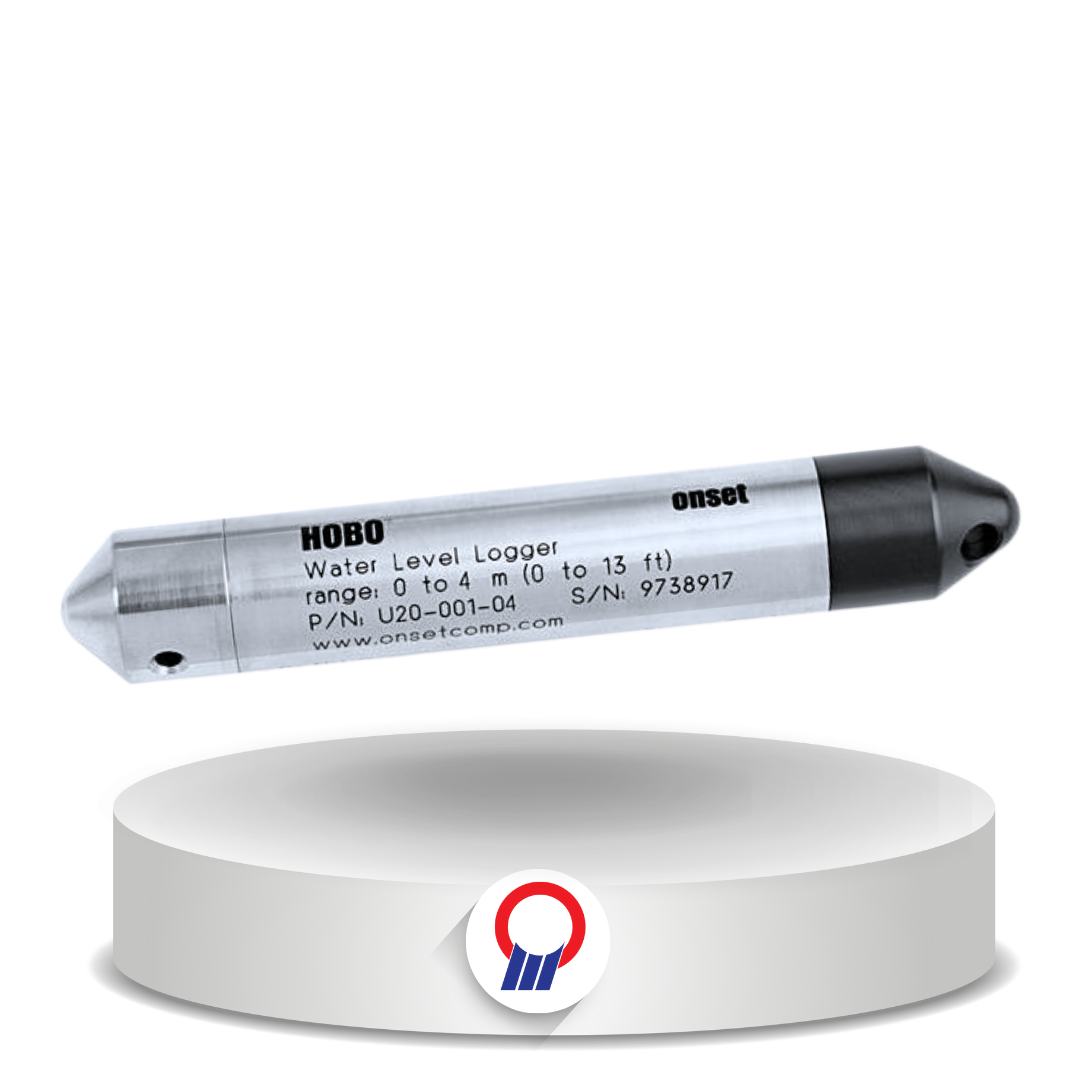

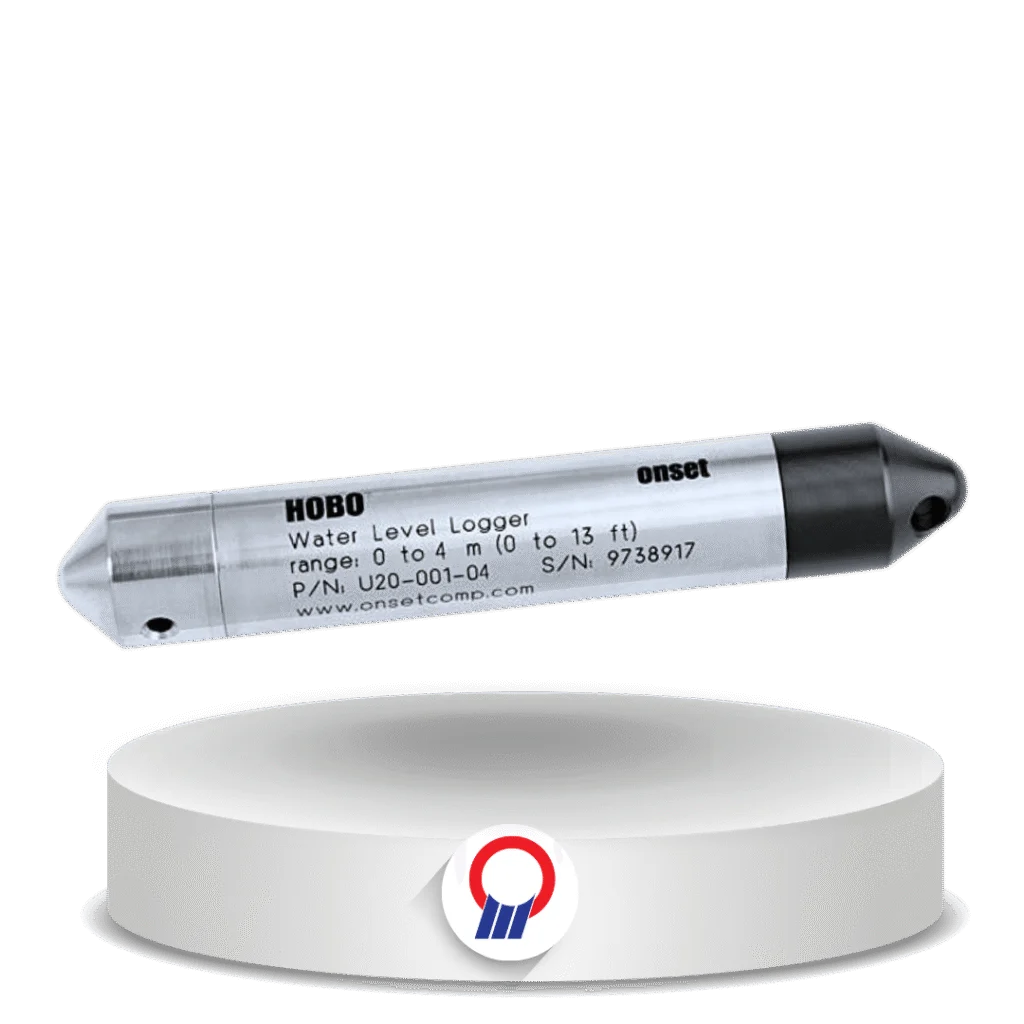

HOBO U20-001-04 13-Foot Water Level Data Logger
HOBO

HOBO U20-001-04 13-Foot Water Level Data Logger

Overview

Data logger level air dan suhu air untuk kedalaman hingga 4 m (13 ft). Versi stainless steel untuk sumur dangkal, sungai, danau, dan lahan basah air tawar; versi titanium (U20-001-04-Ti) untuk lahan basah payau atau area pasang surut.

Fitur Utama

  • Rentang 0–4 m (0–145 kPa), paling teliti untuk perairan dangkal
  • Sensor tekanan keramik yang awet
  • Tanpa pipa ventilasi atau desiccant yang perlu dirawat
  • Tersedia versi stainless steel dan titanium (titanium disarankan untuk air asin)
  • Sertifikat kalibrasi disertakan
  • Pengambilan data lewat Base Station atau Waterproof Shuttle dengan software HOBOware Pro
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Level

Spesifikasi & Penerapan

Aplikasi
Environment Mining

Detail Produk

Specification Value
Pressure (Absolute) & Water Level — U20-001-04 / -04-Ti
Range 0-4 m (0-13 ft); 0-145 kPa (0-21 psia)
Factory Calibrated Range 69 to 145 kPa (10-21 psia), 0° to 40°C
Water Level Accuracy (typical error) ±0.3 cm (0.01 ft); ±0.075% FS
Resolution 0.14 cm (0.005 ft)
Burst Pressure 310 kPa (45 psia); 18 m (60 ft) depth
Temperature (all models)
Range -20° to 50°C
Accuracy ±0.37° at 20°C; ±0.44° from 0° to 50°C
Resolution (10 bit) 0.1° at 20°C
Response Time 3.5 minutes (to 90% in water)
Physical
Dimensions 2.46 cm diameter x 15 cm; hole in mounting bail 6.3 mm
Compliance CE
