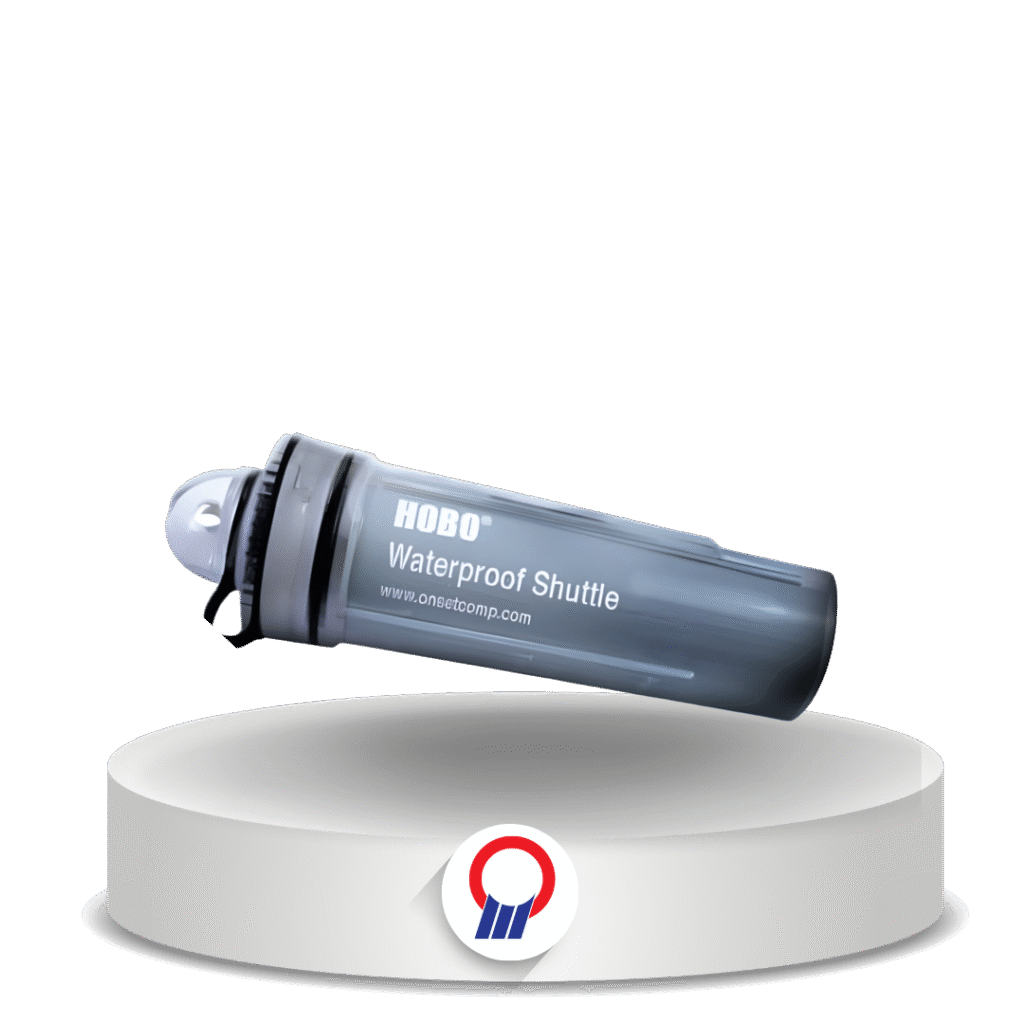

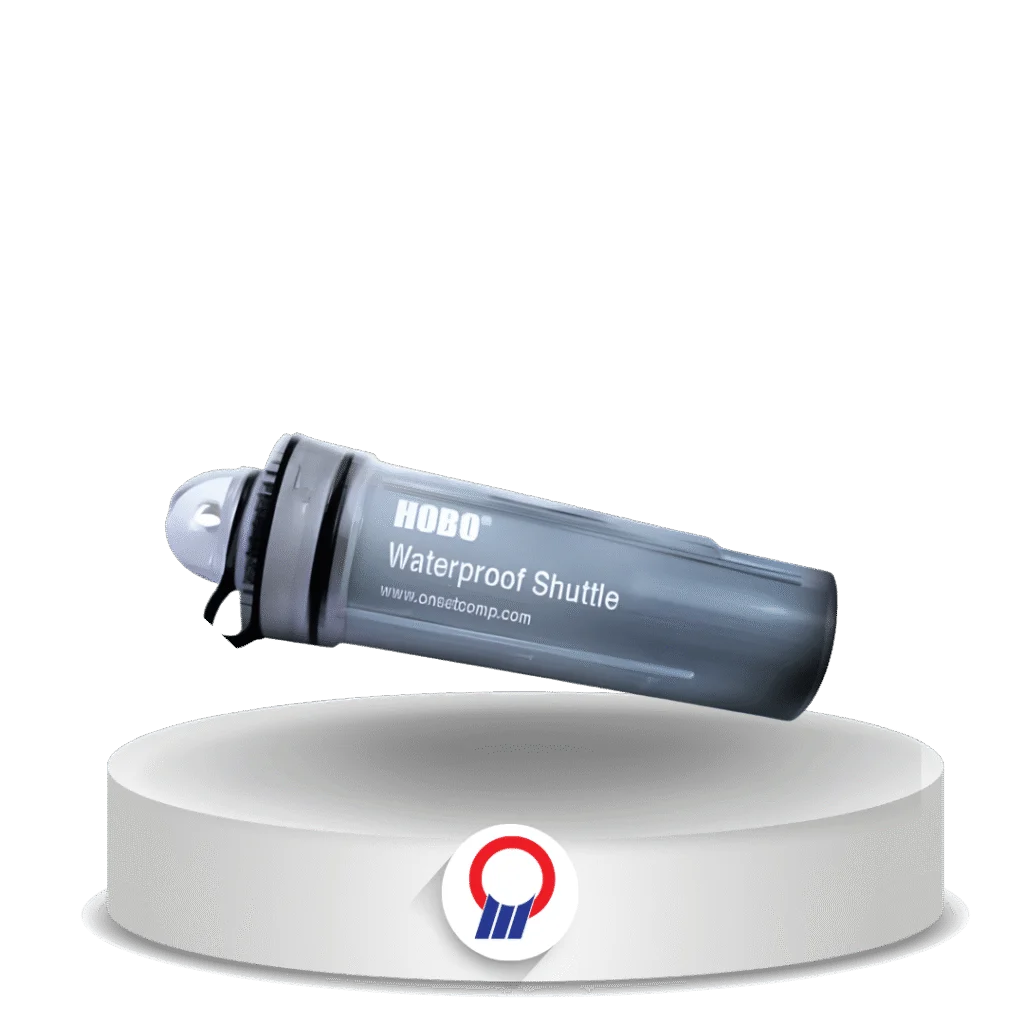

HOBO U-DTW-1 Waterproof Shuttle
HOBO

HOBO U-DTW-1 Waterproof Shuttle

Overview

Alat penarik data (shuttle) tahan air untuk logger HOBO U-Series dengan antarmuka optik. Membaca data dari logger di lapangan, lalu memindahkannya ke komputer, bahkan dapat dipakai di bawah air.

Fitur Utama

  • Membaca seluruh informasi logger (serial, deployment, data) di lapangan
  • Memori nonvolatil menjaga data walau baterai habis
  • Dapat meluncurkan ulang logger dan menyamakan waktunya
  • Dapat berfungsi sebagai base station optik-ke-USB
  • Dapat dipakai untuk membaca dan meluncurkan ulang logger di bawah air
  • Satu shuttle menyimpan hingga 63 pembacaan logger
Tanya via WhatsApp
Merk
HOBO
Kategori
Accessories

Detail Produk

Specification Value
Specification
Compatibility All HOBO U-Series loggers with optic USB (not compatible with U-DT-1)
Data Capacity 63 logger readouts of up to 64K each
Logger-to-Shuttle Transfer Speed Approx. 30 seconds per full 64K logger
Shuttle-to-Host Transfer Speed Full 4 MB shuttle offload in 10 to 20 minutes
Operating Temperature 0° to 50°C
Storage Temperature -20° to 50°C
Waterproof To 20 m (66 ft)
Time Accuracy ±1 minute per month at 25°C
Batteries 2 AA alkaline for remote operation
Battery Life One year or at least 50 complete memory fills, typical use
Wetted Materials Polycarbonate case, EPDM O-rings and retaining loop
Dimensions / Weight 15.2 x 4.8 cm; 150 g
Required Items HOBOware Pro 2.2 or later; compatible logger and matching coupler
Included
Items USB cable; couplers: COUPLER2-A (UA Pendant), -B (U20), -C (U20L, U22, U24, U26), -D (UTBI), -E (U23 Pro v2)
