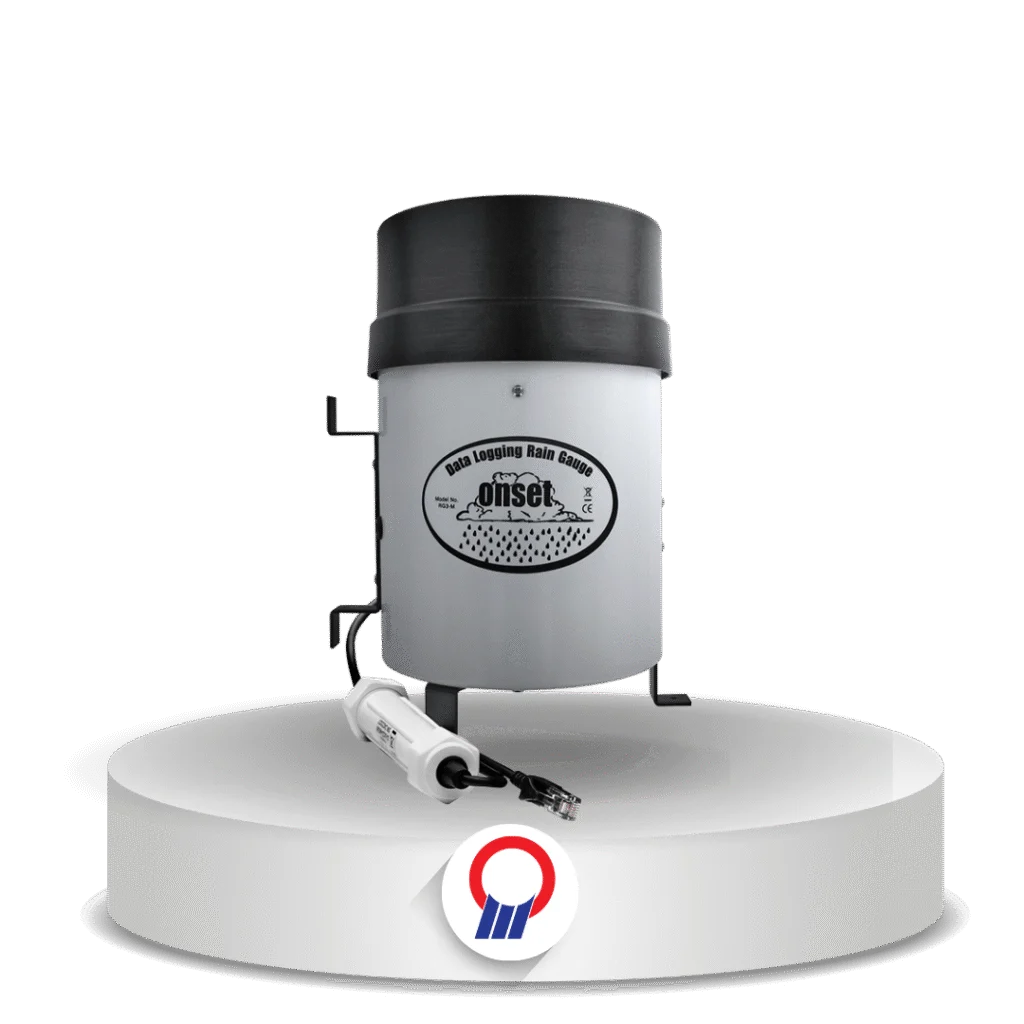

HOBO S-RGB-M002 0.2 mm Rainfall Smart Sensor
HOBO

HOBO S-RGB-M002 0.2 mm Rainfall Smart Sensor

Overview

Penakar hujan tipping-bucket Smart Sensor dengan resolusi 0,2 mm per tip, untuk stasiun HOBO. Parameter sensor tersimpan di dalam sensor sehingga langsung dikenali logger.

Fitur Utama

  • Resolusi 0,2 mm per tip (S-RGB-M002); versi S-RGA-M002 0,01 inci
  • Konektor modular plug-in, parameter sensor otomatis terkirim ke logger
  • Collector aluminium 15,24 cm (6 inci) dengan mekanisme tipping bucket
  • Akurasi kalibrasi ±1,0% sampai 20 mm/jam
  • Dapat dikalibrasi di lapangan atau dikirim kembali ke pabrik
  • Aksesori tiang dan level tersedia untuk pemasangan akurat
Tanya via WhatsApp
Merk
HOBO
Kategori
Rainfall

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Measurement
Measurement Range 0 to 12.7 cm (0 to 5 in.) per hour; maximum 4000 tips per logging interval
Calibration Accuracy ±1.0% at up to 20 mm/hour (1 in./hour)
Resolution 0.2 mm per tip (S-RGB-M002)
Calibration Annual calibration required (field or factory)
Bits per Sample 12
Number of Data Channels 1
Environment & Physical
Operating Temperature Range 0° to 50°C; survival -40° to 75°C
Environmental Rating Weatherproof
Housing 15.24 cm (6 in.) aluminum collector and base
Mechanism Tipping bucket; stainless steel shaft with brass bearings
Dimensions 22.8 cm height x 15.4 cm diameter; 15.4 cm receiving orifice
Weight 1 kg
Cable Length Available 2 m (6.6 ft)
Smart Sensor Network Cable Length 0.5 m
