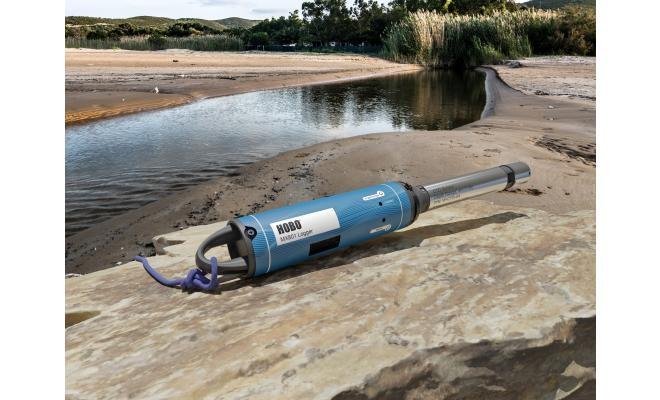

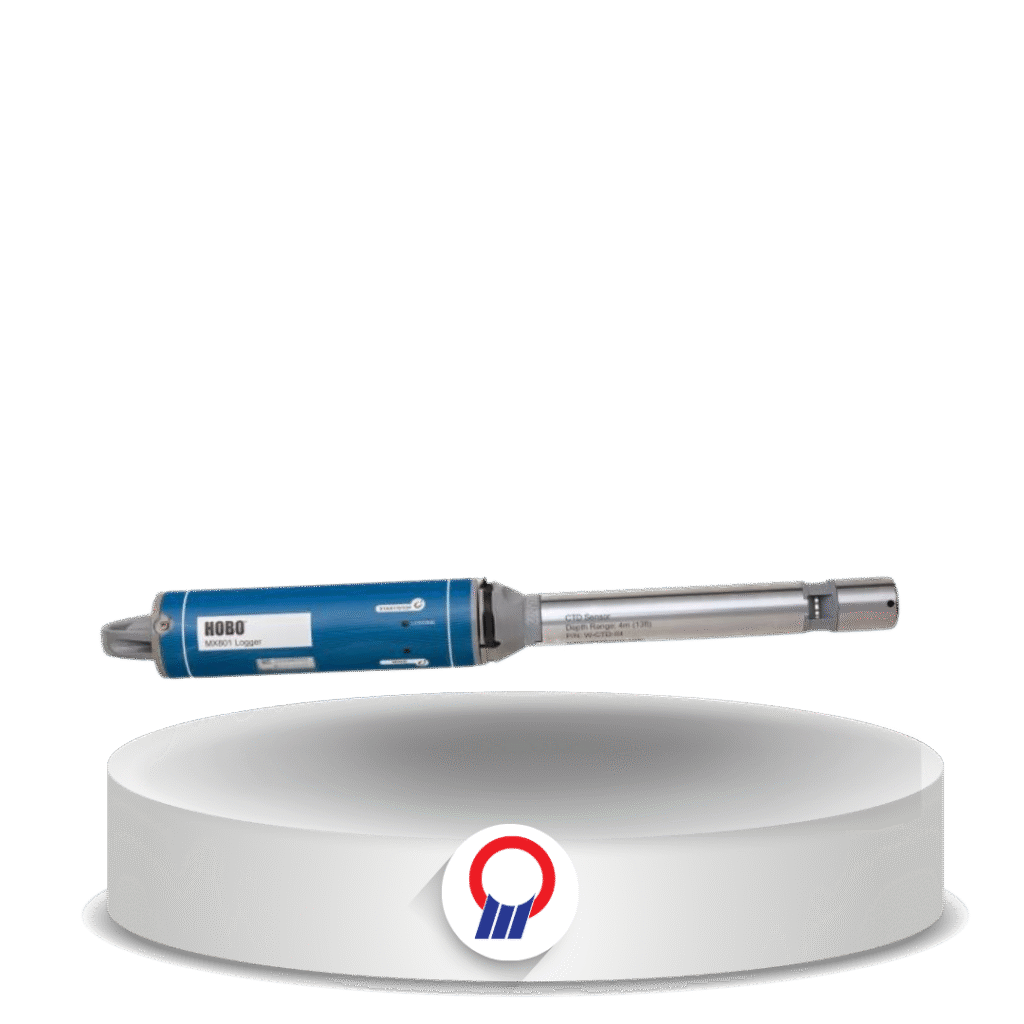

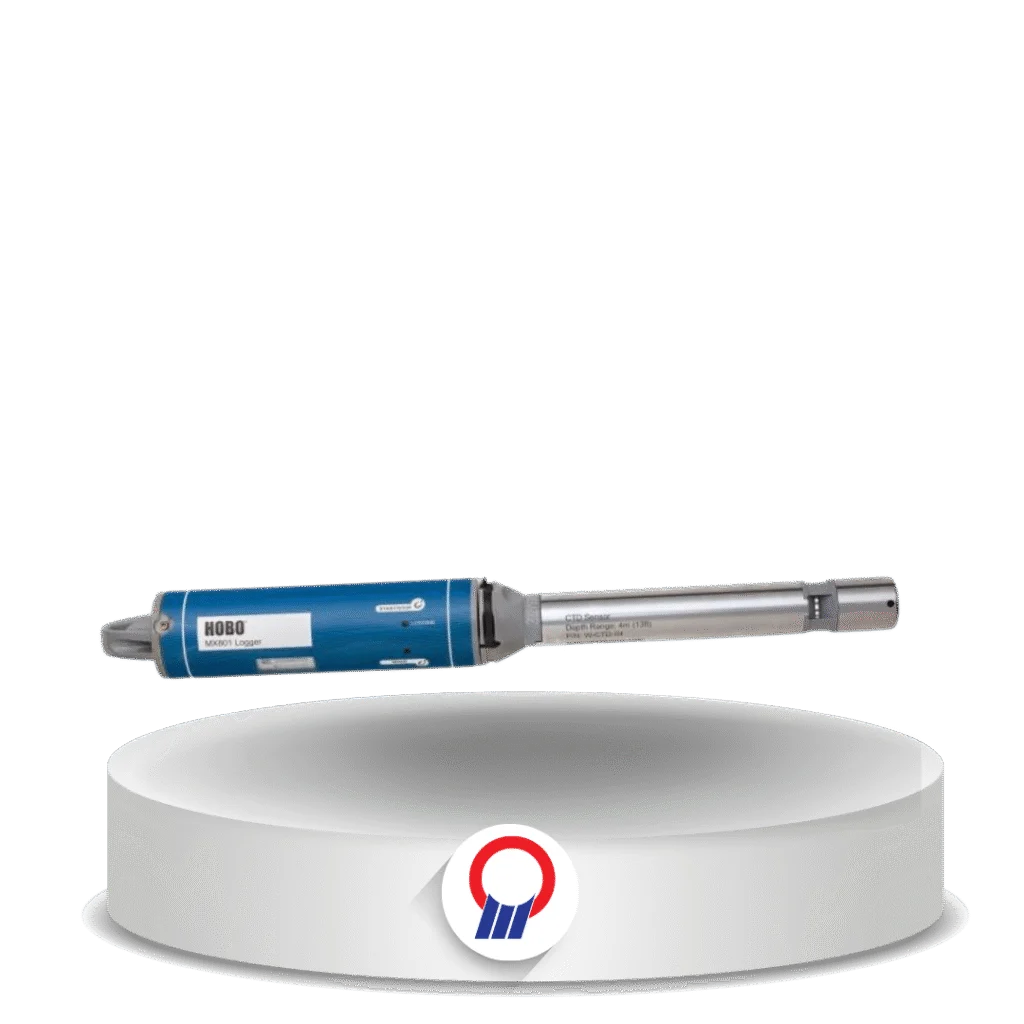

HOBO MX801 Conductivity, Temperature & Depth Data Logger
HOBO

HOBO MX801 Conductivity, Temperature & Depth Data Logger

Overview

Logger air yang sepenuhnya tahan air untuk mengukur konduktivitas, suhu, dan kedalaman (CTD) dengan sensor W-CTD, di air tawar maupun air laut. Sensor kedalaman tersedia untuk 4 m, 9 m, 30 m, dan 76 m.

Fitur Utama

  • Logger MX801 submersible dengan sensor W-CTD yang dapat diganti
  • Water detect: kejadian tercatat saat logger tenggelam atau diangkat dari air
  • Unduh data nirkabel lewat Bluetooth 5 ke aplikasi HOBOconnect
  • Konduktivitas hingga 100.000 µS/cm, salinitas dihitung dalam PSU
  • Tahan air sampai 100 m dengan sensor terpasang (IP68)
  • Memori 730.000 pengukuran
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Quality Logger

Spesifikasi & Penerapan

Aplikasi
Environment Oceanography

Detail Produk

Specification Value
Logger MX801
Operating Range -40° to 50°C, cannot be frozen in ice
Wireless Data Standard Bluetooth 5; approx. 30.5 m line-of-sight
Logging Rate 5 seconds to 18 hours
Water Detect Events logged when submerged or removed from water
Battery Four AA 1.5 V lithium; approx. 2 years with W-CTD sensor (1-minute logging)
Memory 730,000 measurements (4 MB)
Environmental Rating IP68; waterproof to 100 m with sensor attached
Dimensions / Weight 4.14 cm diameter, 20 cm length without sensor; 213 g
Conductivity and Temperature (W-CTD)
Conductivity Range 0 to 100,000 µS/cm
Accuracy ±2% or 15 µS/cm, whichever is greater; salinity ±2% of reading or 0.1 PSU
Resolution 0.1 µS/cm (0-1,000); 1 µS/cm (1,000-10,000); 10 µS/cm (10,000-100,000)
Temperature -20° to 50°C; ±0.15°C from 0° to 50°C; 0.01°C at 25°C
Depth (W-CTD sensors)
4 m (13 ft) 0-145 kPa; typical ±0.075% FS (0.3 cm); resolution 0.14 cm
9 m (30 ft) — W-CTD-01 0-207 kPa; typical ±0.05% FS (0.5 cm); resolution 0.21 cm
30.6 m (100 ft) — W-CTD-02 0-400 kPa; typical ±0.05% FS (1.5 cm); resolution 0.41 cm
76.5 m (251 ft) — W-CTD-03 0-850 kPa; typical ±0.05% FS (3.8 cm); resolution 0.87 cm
Raw Pressure Accuracy ±0.3% FS maximum error
