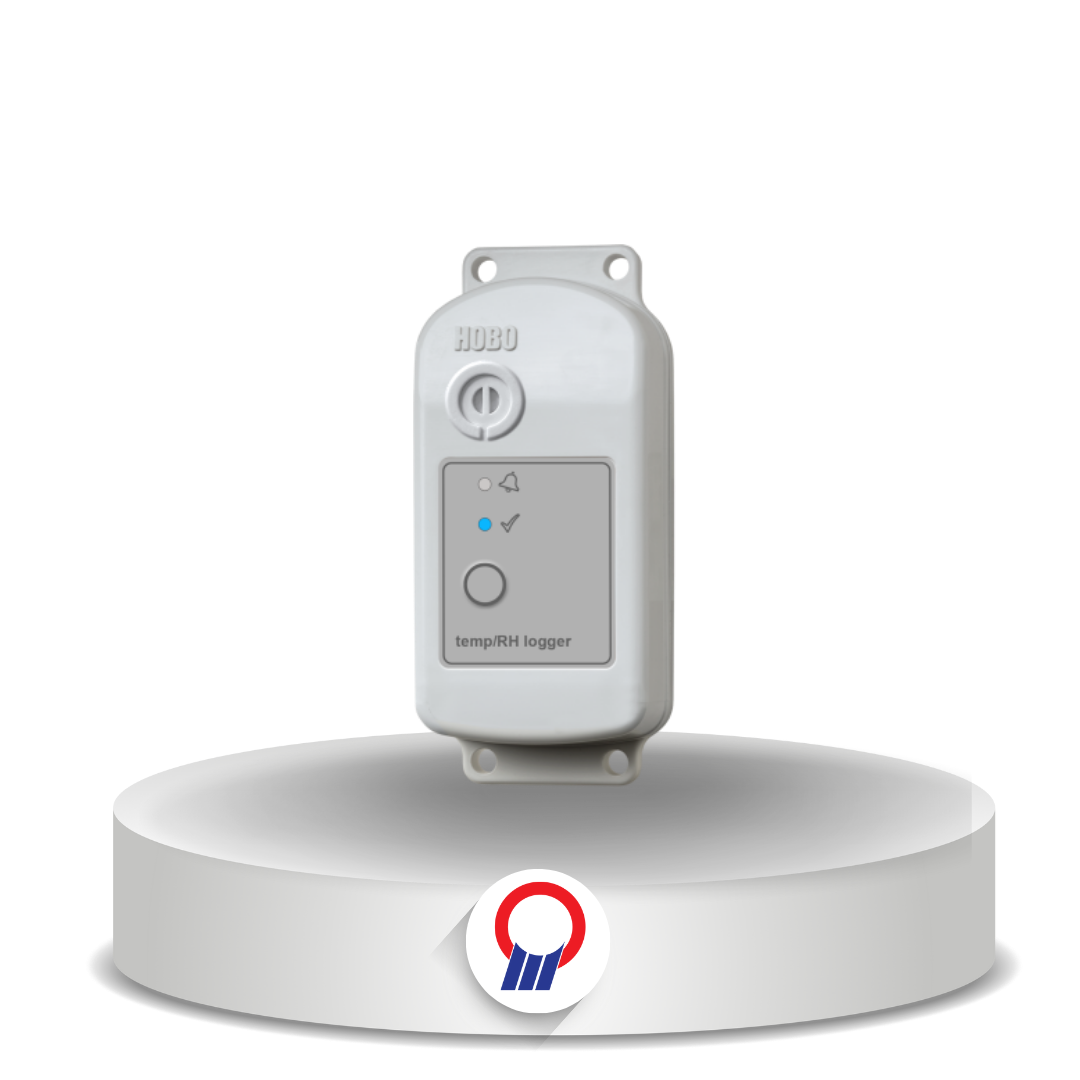

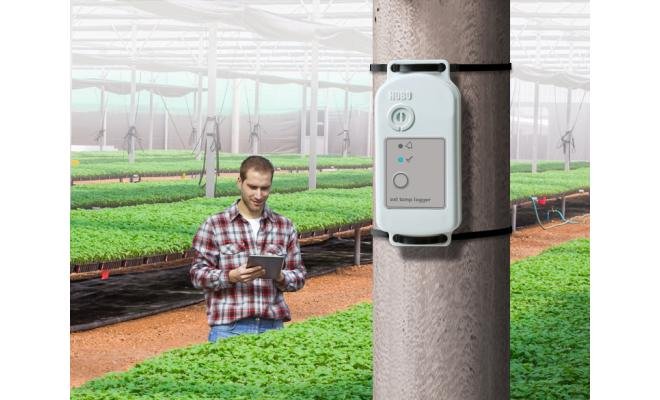

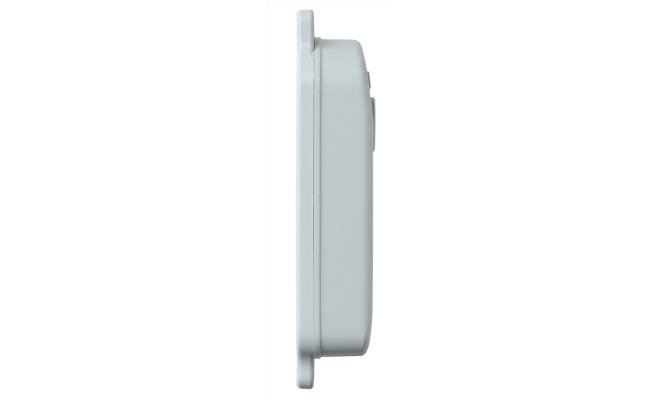

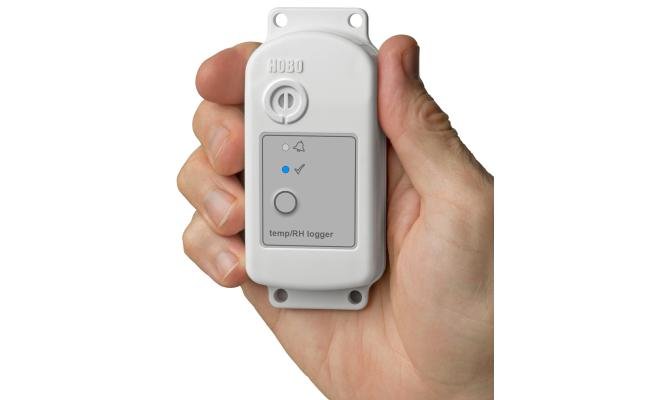

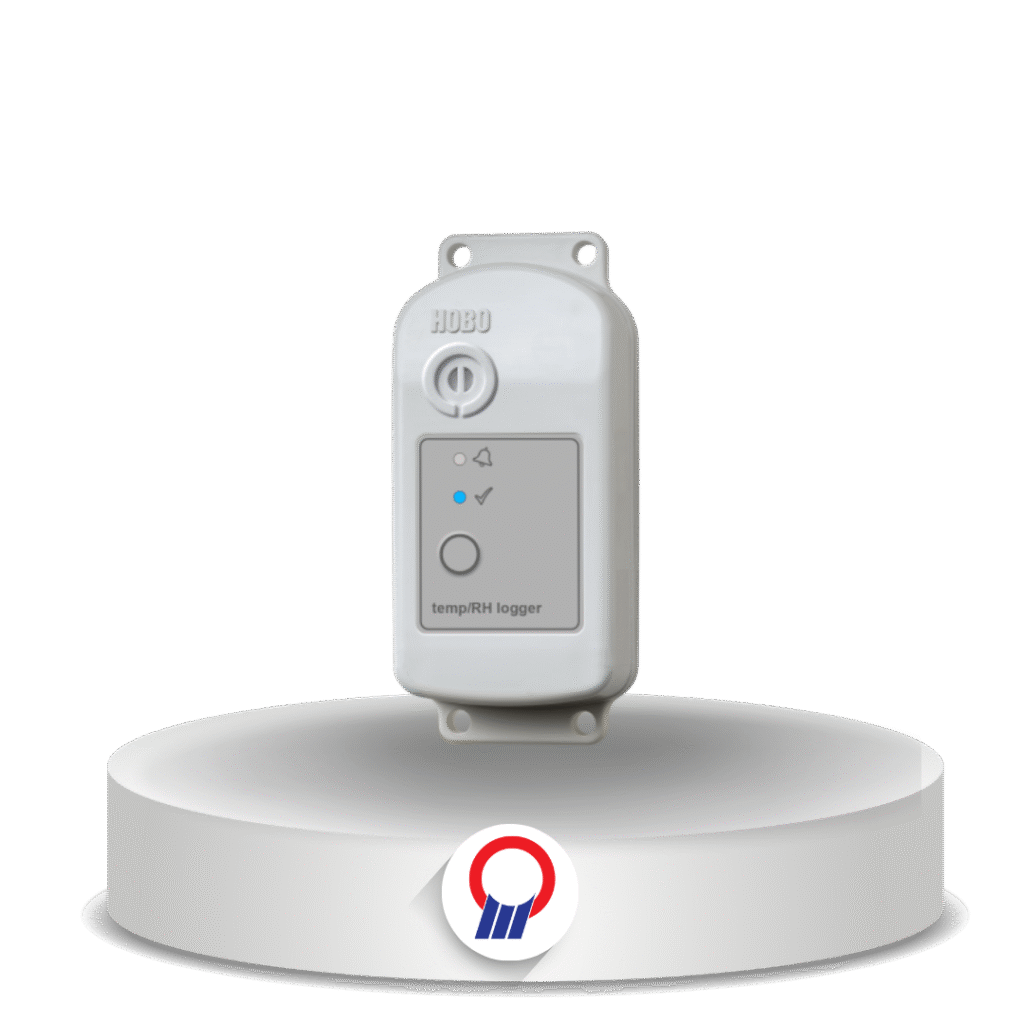

Data logger tahan cuaca dengan sensor suhu dan kelembapan relatif bawaan, untuk pengukuran di luar ruangan atau lingkungan yang keras. Setup dan unduh data dilakukan nirkabel lewat Bluetooth.
| Specification | Value |
|---|---|
| Temperature Sensor | |
| Range | -40° to 70°C (internal sensor) |
| Accuracy | ±0.25°C from -40° to 0°C; ±0.2°C from 0° to 70°C |
| Resolution | 0.04°C |
| Drift | <0.01°C per year |
| Response Time (90%) | 17 minutes in air moving 1 m/s (24 minutes with RS1/M-RSA solar radiation shield) |
| RH Sensor | |
| Range | 0 to 100% RH, -40° to 70°C |
| Accuracy | ±2.5% from 10% to 90% typical, max ±3.5% including hysteresis at 25°C; below 10% and above 90% ±5% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time (90%) | 30 seconds in air moving 1 m/s (40 seconds with solar radiation shield) |
| Logger | |
| Wireless Data Standard | Bluetooth Low Energy; approx. 30.5 m line-of-sight |
| Radio Power | 1 mW (0 dBm) |
| Logger Operating Range | -40° to 70°C |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | When memory full, push button, date & time, or after a set logging period |
| Time Accuracy | ±1 minute per month, 0° to 50°C |
| Battery | 2/3 AA 3.6 V lithium, user replaceable |
| Battery Life | 2 years (Power Saving Mode disabled); 5 years (Power Saving Mode enabled), 1-minute logging |
| Memory | 128 KB (63,488 measurements, maximum) |
| Full Memory Download Time | Approx. 60 seconds |
| Physical | |
| Logger Housing | 10.8 x 5.08 x 2.24 cm |
| Weight | Logger 75.5 g |
| Materials | Acetal, silicone gasket, stainless steel screws |
| Environmental Rating | NEMA 6 and IP67 |
