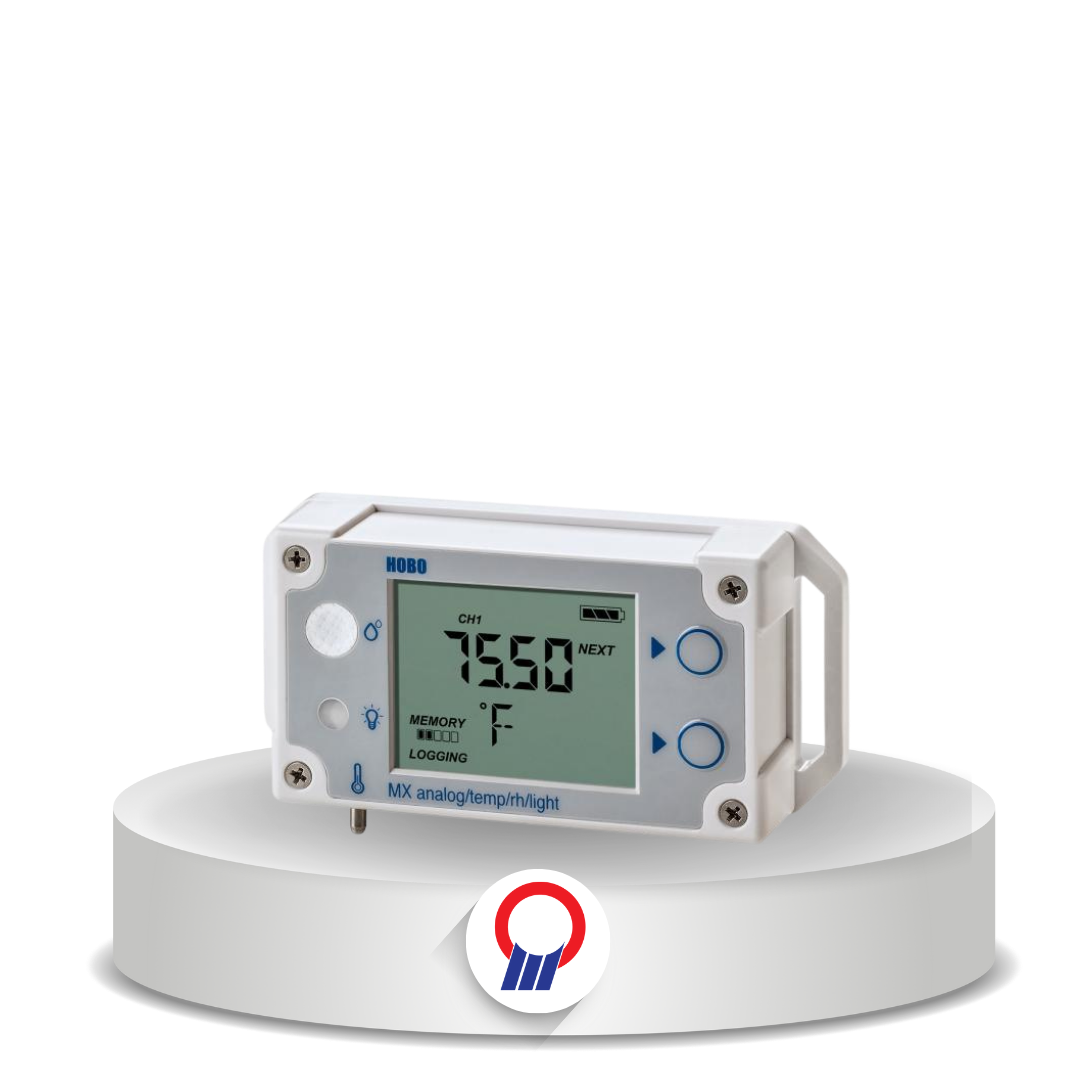

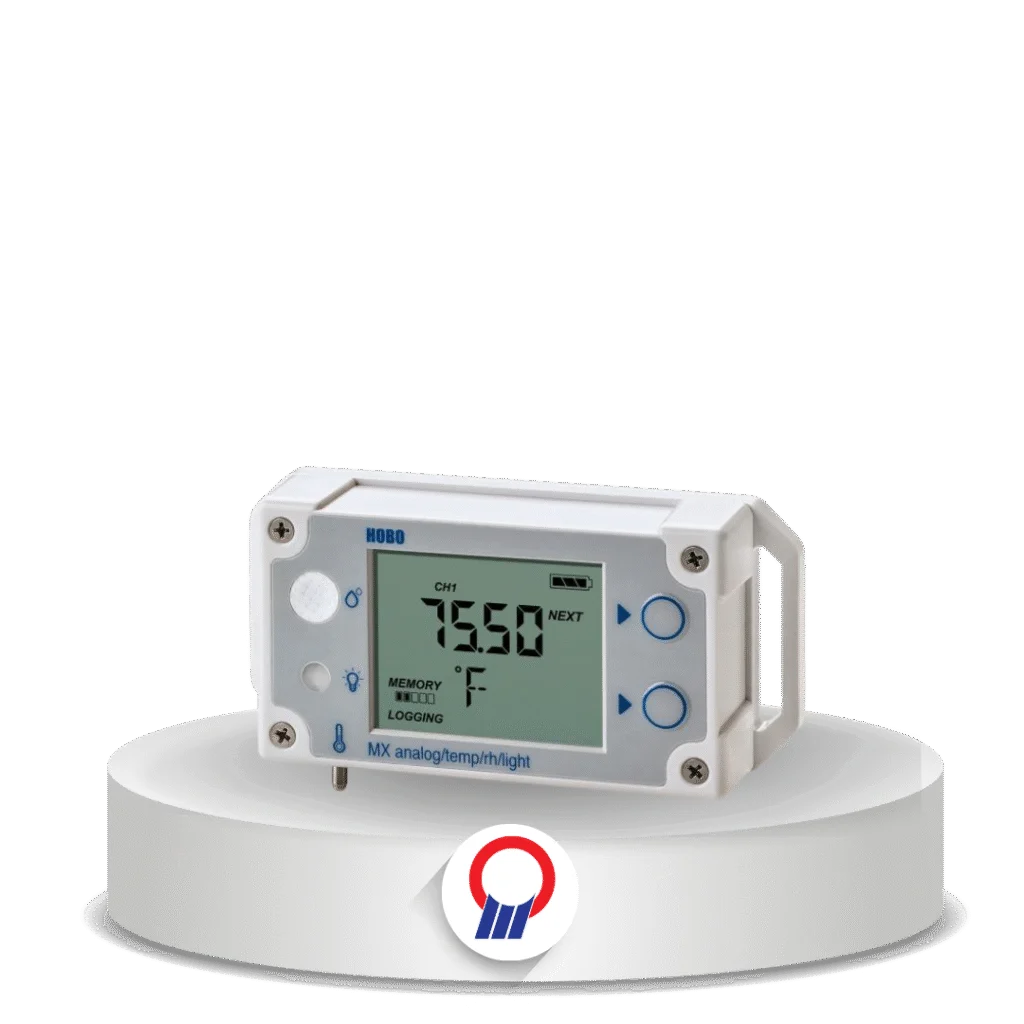

Data logger multi-kanal yang mengukur suhu, kelembapan relatif (RH), dan intensitas cahaya, dengan satu input analog eksternal untuk sensor tambahan. Layar LCD menampilkan pembacaan terkini dan data dibaca lewat Bluetooth.
| Specification | Value |
|---|---|
| Temperature Sensor | |
| Range | -20° to 70°C |
| Accuracy | ±0.20°C from 0° to 50°C |
| Resolution | 0.002°C at 25°C |
| Drift | <0.1°C per year |
| Response Time | Approx. 11 minutes in air moving 1 m/s |
| RH Sensor | |
| Range | 0% to 100% at -20° to 70°C |
| Accuracy | ±2.5% from 10% to 90% typical, max ±3.5% including hysteresis at 25°C; below 10% and above 90% ±5% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time | 30 seconds to 90% in airflow of 1 m/s |
| Light Sensor | |
| Range | 0 to 167,731 lux (15,582 lum/ft²) |
| Accuracy | ±10% typical for direct sunlight |
| External Analog Input (with suitable cable/sensor) | |
| 4-20 mA | Range 0 to 20.1 mA Accuracy ±0.001 mA ±0.2% of reading Resolution 0.3 µA |
| 0-2.5 V | Range 0 to 2.5 V Accuracy ±0.1 mV ±0.1% of reading Resolution 40 µV |
| 0-5 V | Range 0 to 5.0 V Accuracy ±0.2 mV ±0.3% of reading Resolution 80 µV |
| 0-10 V | Range 0 to 10 V Accuracy ±0.4 mV ±0.3% of reading Resolution 160 µV |
| 0-24 V | Range 0 to 24 V Accuracy ±1.0 mV ±0.3% of reading Resolution 384 µV |
| Logger | |
| Operating Range | -20° to 70°C |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approx. 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | When memory full, push button, date & time, or after a set logging period |
| Time Accuracy | ±1 minute per month at 25°C |
| Battery | Two AAA 1.5 V alkaline, user replaceable |
| Battery Life | 1 year (Bluetooth Always On) / 2 years (Bluetooth Always On disabled), at 1-minute logging, 0° to 50°C |
| Memory | 4 MB (1.9 million measurements, maximum) |
| Full Memory Download Time | Approx. 4 to 15 minutes, depending on mobile device |
| Size | 11.28 x 5.41 x 2.92 cm |
| Weight | 123 g |
| Environmental Rating | IP54 |
