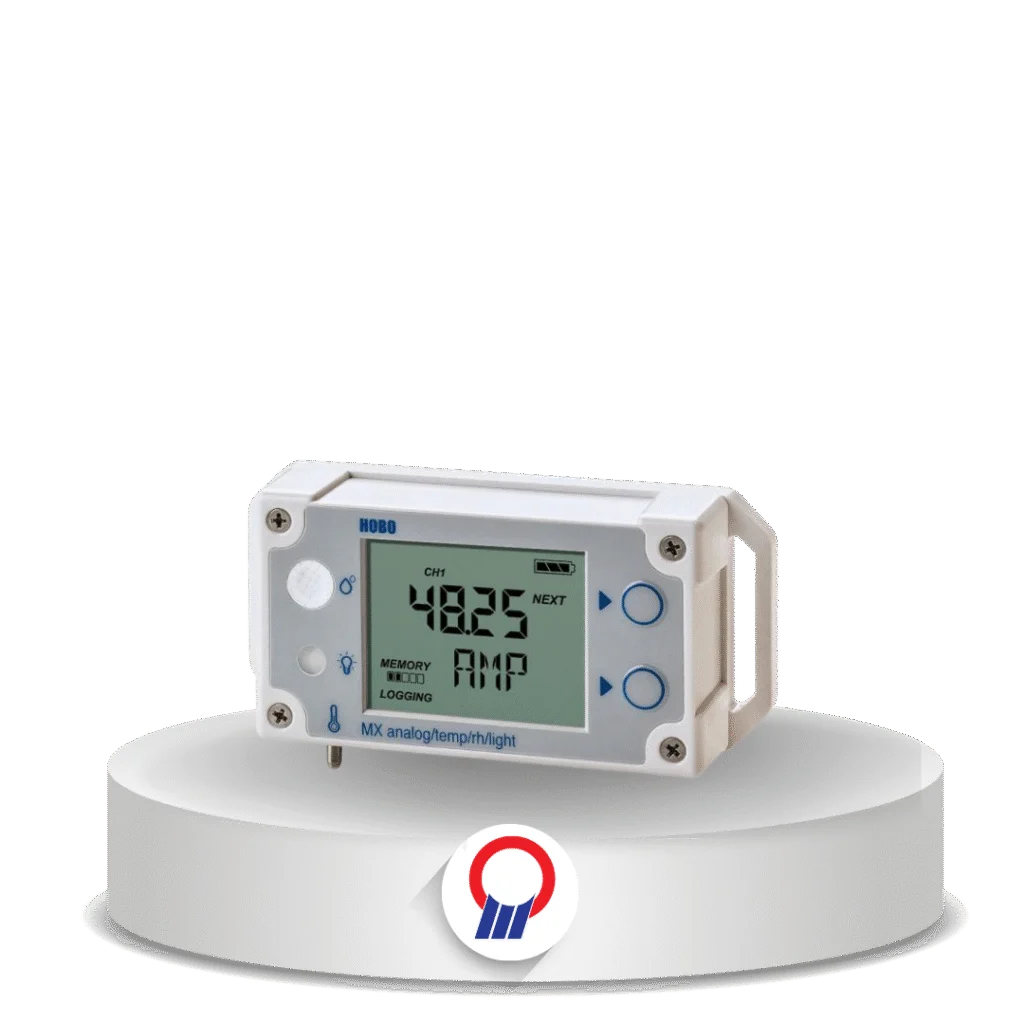

HOBO MX1104-TEMP-06 Logger Kit Temp/RH/Light/Ext-Temp
HOBO

HOBO MX1104-TEMP-06 Logger Kit Temp/RH/Light/Ext-Temp

Overview

Paket logger MX1104 (suhu, kelembapan relatif, cahaya) dengan sensor suhu eksternal, yang mengirim data nirkabel lewat Bluetooth.

Fitur Utama

  • Logger MX1104: suhu, RH, intensitas cahaya, dan satu input analog eksternal

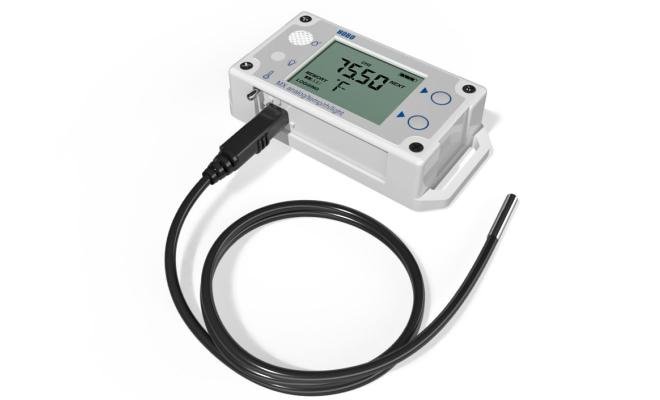

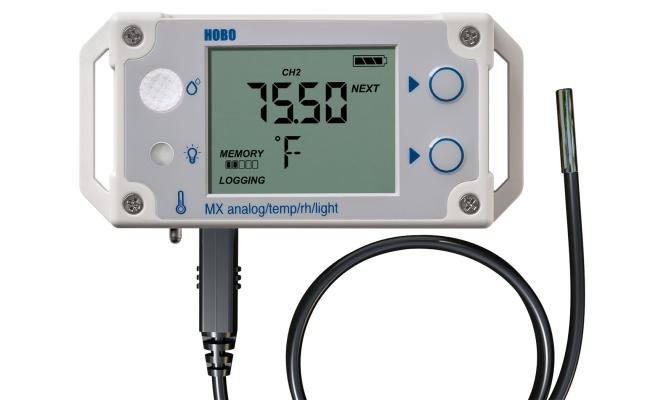

  • Paket menyertakan sensor suhu eksternal
  • Data nirkabel lewat Bluetooth Low Energy dengan aplikasi HOBOconnect
  • Layar LCD menampilkan pembacaan terkini
  • Resolusi 16-bit dan memori hingga 1,9 juta pengukuran
  • Alarm suara dan visual saat pembacaan melewati batas
Tanya via WhatsApp
Merk
HOBO
Kategori
Multi-Channel & Event Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Environment

Detail Produk

Specification Value
Temperature Sensor (internal)
Range -20° to 70°C
Accuracy ±0.20°C from 0° to 50°C
Resolution 0.002°C at 25°C
RH Sensor
Range 0% to 100% at -20° to 70°C
Accuracy ±2.5% from 10% to 90% typical, max ±3.5% including hysteresis at 25°C
Resolution 0.01%
Light Sensor
Range 0 to 167,731 lux (15,582 lum/ft²)
Accuracy ±10% typical for direct sunlight
Logger
Wireless Bluetooth Low Energy; approx. 30.5 m line-of-sight
Logging Rate 1 second to 18 hours
Memory 4 MB (1.9 million measurements, maximum)
Battery Two AAA 1.5 V alkaline, user replaceable
Size / Weight 11.28 x 5.41 x 2.92 cm; 123 g
Environmental Rating IP54
