HOBO MX1101 Temperature/Relative Humidity Data Logger
HOBO

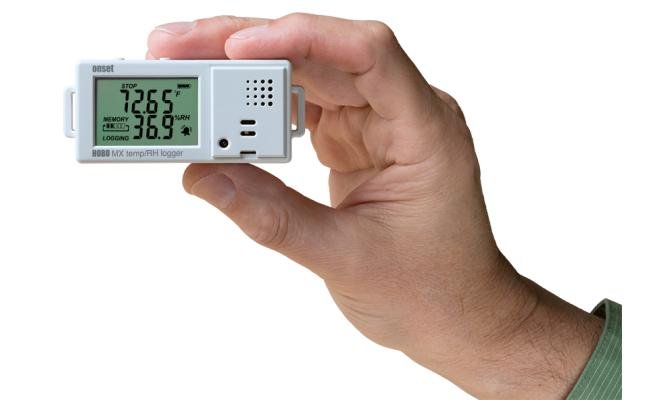

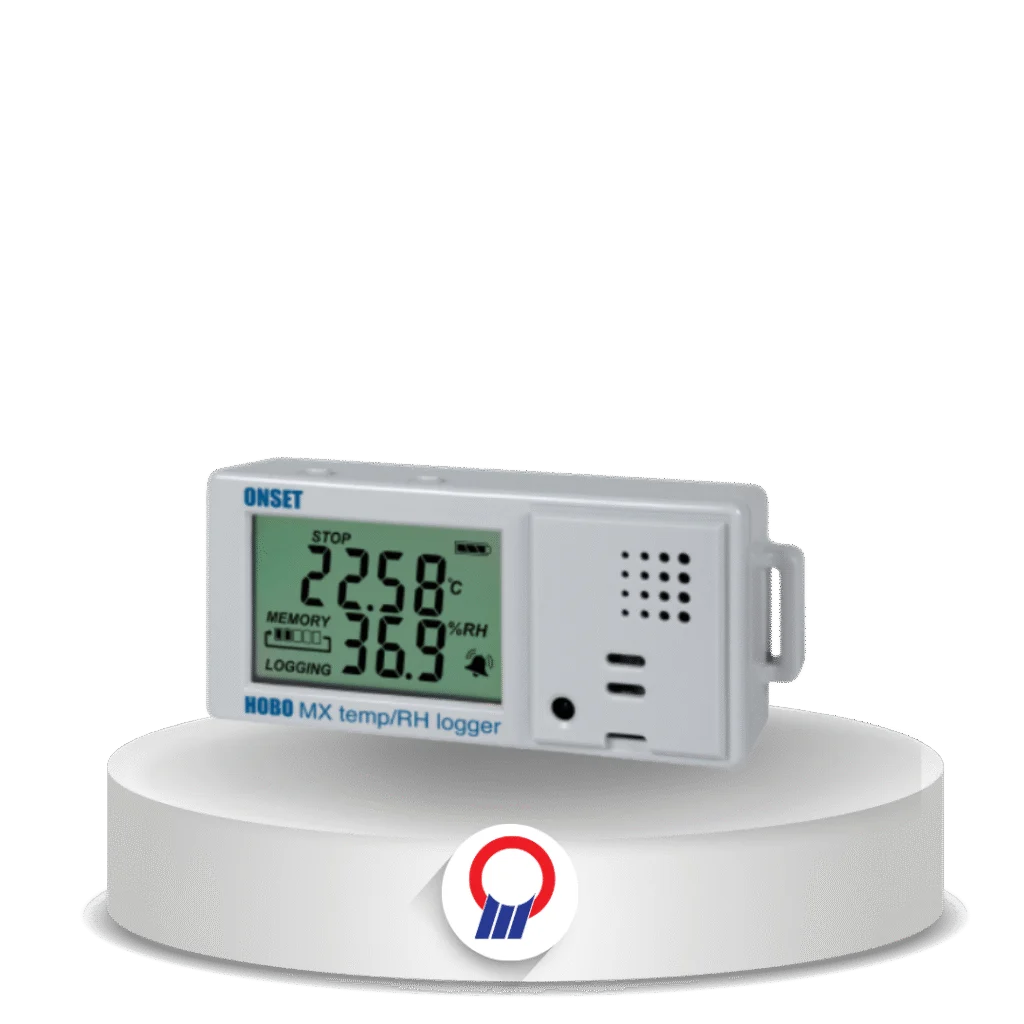

HOBO MX1101 Temperature/Relative Humidity Data Logger

Overview

Data logger suhu dan kelembapan relatif (RH) berlayar LCD untuk ruangan dalam, yang mengirim data nirkabel lewat Bluetooth ke ponsel atau komputer Windows.

Fitur Utama

  • Sensor suhu dan RH bawaan dengan layar LCD
  • Pengaturan dan pengambilan data lewat aplikasi HOBOconnect di ponsel, tablet, atau komputer Windows
  • Alarm visual dan suara pada ambang yang ditentukan
  • Mode pencatatan tetap (normal, statistik) atau burst
  • Memori 128 KB (maksimal 84.650 pengukuran)
  • Dua baterai AAA alkaline yang dapat diganti pengguna, umur tipikal 1 tahun
Tanya via WhatsApp
Merk
HOBO
Kategori
Temperature & RH Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Logistic & Storage

Detail Produk

Specification Value
Temperature Sensor
Range -20° to 70°C
Accuracy ±0.21°C from 0° to 50°C
Resolution 0.024°C at 25°C
Drift <0.1°C per year
Response Time 7.5 minutes in airflow of 1 m/s
RH Sensor
Range 1% to 90%
Accuracy ±2% from 20% to 80% typical, max ±4.5% including hysteresis at 25°C; below 20% and above 80% ±6% typical
Resolution 0.01%
Drift <1% per year typical
Response Time 20 seconds to 90% in airflow of 1 m/s
Logger
Operating Range -20° to 70°C; 0 to 95% RH (non-condensing)
Wireless Data Standard Bluetooth Low Energy; approx. 30.5 m line-of-sight
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval (normal, statistics) or burst
Time Accuracy ±1 minute per month at 25°C
Battery Two AAA 1.5 V alkaline, user replaceable; 1 year typical (1-minute logging)
Memory 128 KB (84,650 measurements, maximum)
Full Memory Download Time Approx. 60 seconds
Dimensions 3.66 x 8.48 x 2.29 cm
Weight 56 g
Environmental Rating IP50
