HOBO H21
HOBO

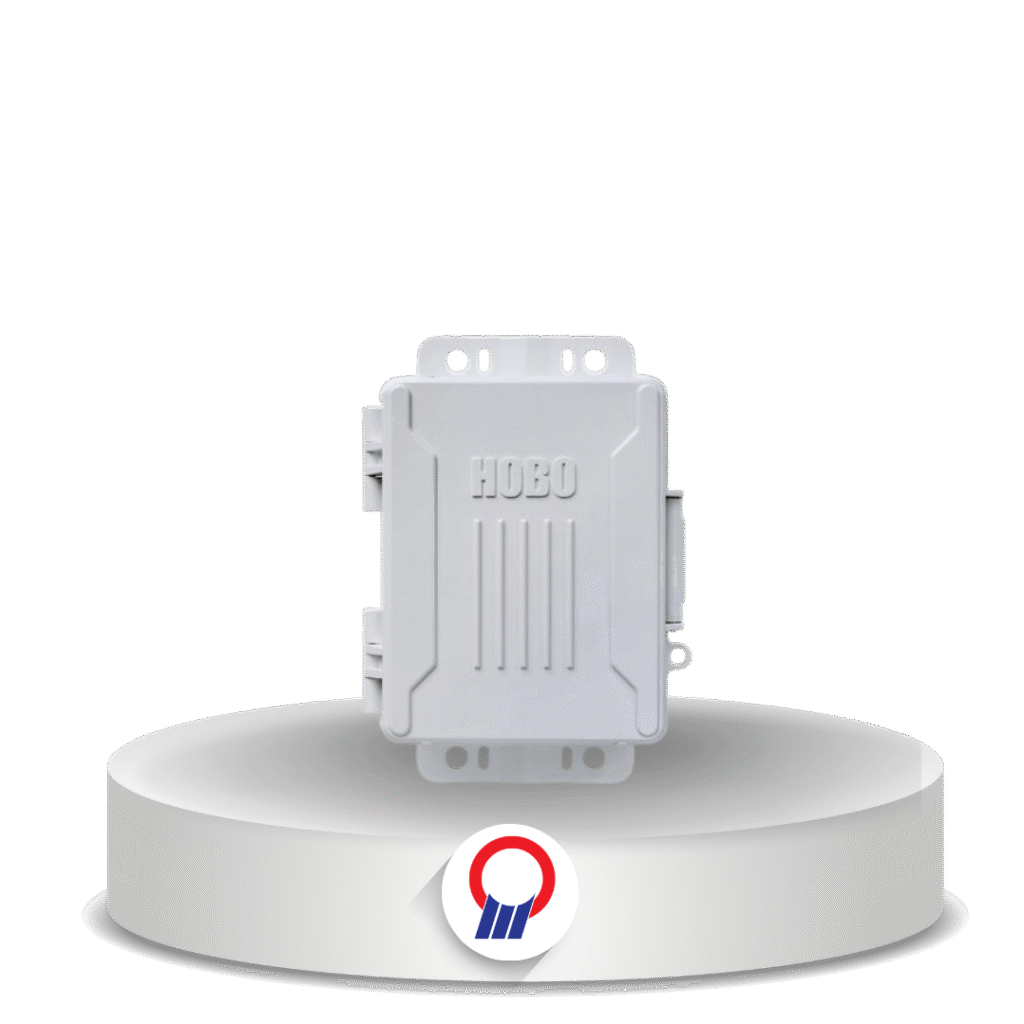

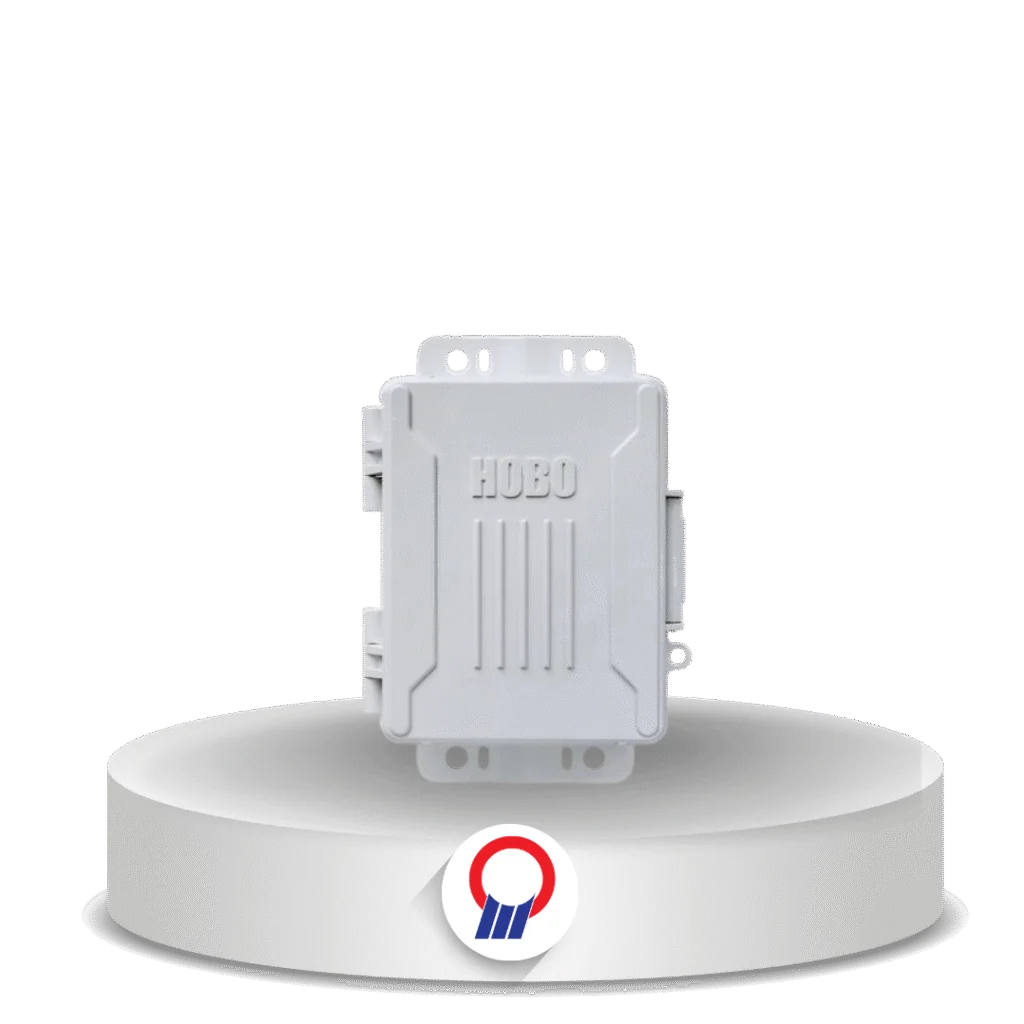

HOBO H21

Overview

Stasiun mikro bertenaga baterai yang tahan cuaca (IP66) untuk pemantauan multi-kanal kondisi mikroklimat di luar ruangan. Menerima hingga lima Smart Sensor plug-and-play dan memiliki port USB bawaan untuk pengunduhan data.

Fitur Utama

  • Ukuran ringkas untuk pemasangan yang mudah
  • Enclosure tahan cuaca IP66 untuk lingkungan keras
  • Unduh data langsung via USB tanpa kabel adaptor
  • Lima input Smart Sensor

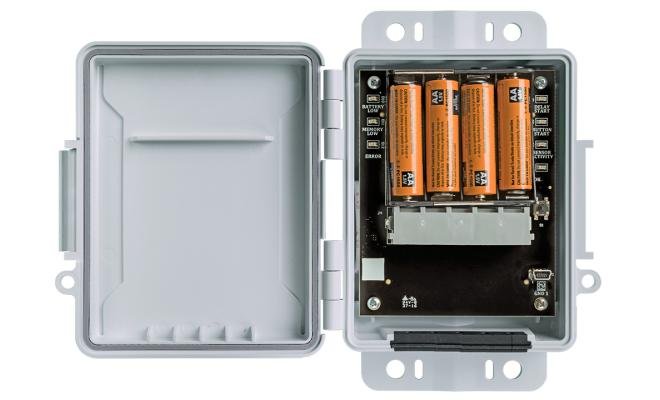

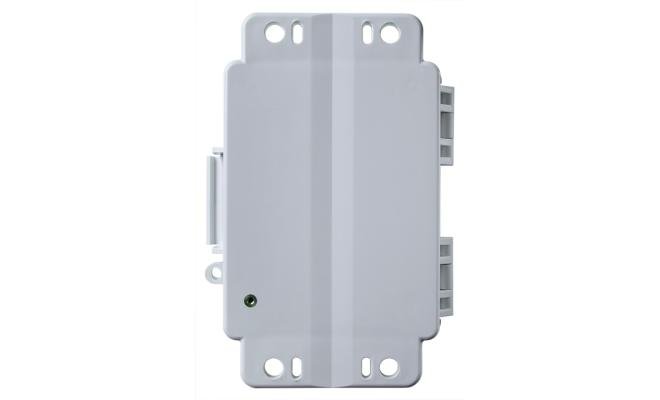

  • Pintu berengsel dan tab pemasangan terintegrasi
  • Berjalan hingga satu tahun dengan empat baterai AA
Tanya via WhatsApp
Merk
HOBO
Kategori
Weather Station & Remote Monitoring

Spesifikasi & Penerapan

Aplikasi

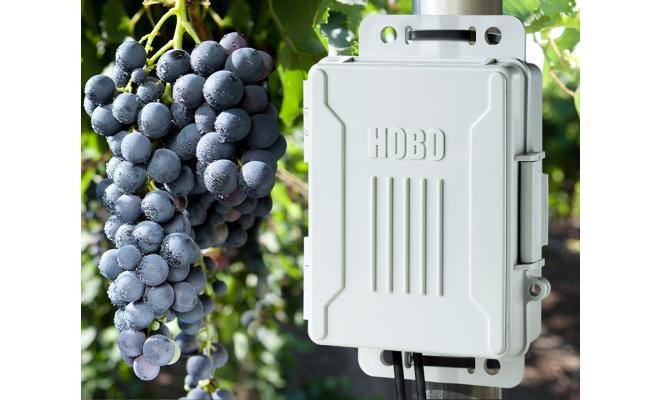

Agriculture & Plantation Environment Mining

Detail Produk

Specification Value
Sensor Inputs
Smart Sensor Connectors 5
Smart Sensor Network Cable Length 100 m (328 ft) maximum
Logger
Operating Range -20° to 50°C (alkaline batteries); -40° to 70°C (lithium batteries)
Logging Interval 1 second to 18 hours
Start Modes Immediate, at interval, push button, or delayed start
Memory 512 KB non-volatile flash
Memory Modes Stop when full or wrap when full
Time Accuracy 0 to 2 seconds first data point; ±5 seconds per week at 25°C
Battery Four AA 1.5 V alkaline or lithium
Battery Life 1 year typical (up to five sensors, 1-minute logging)
Communication USB 2.0; full memory download 4 minutes
Physical
Dimensions 17.04 x 11.94 x 4.47 cm
Weight 414 g
Environmental Rating NEMA 4X and IP66
Materials Polycarbonate/PBT blend with stainless steel hinge pins; silicone foam gasket; EPDM cable channel
