HOBO Carbon Dioxide/Temp/RH Data Logger – MX1102A
HOBO

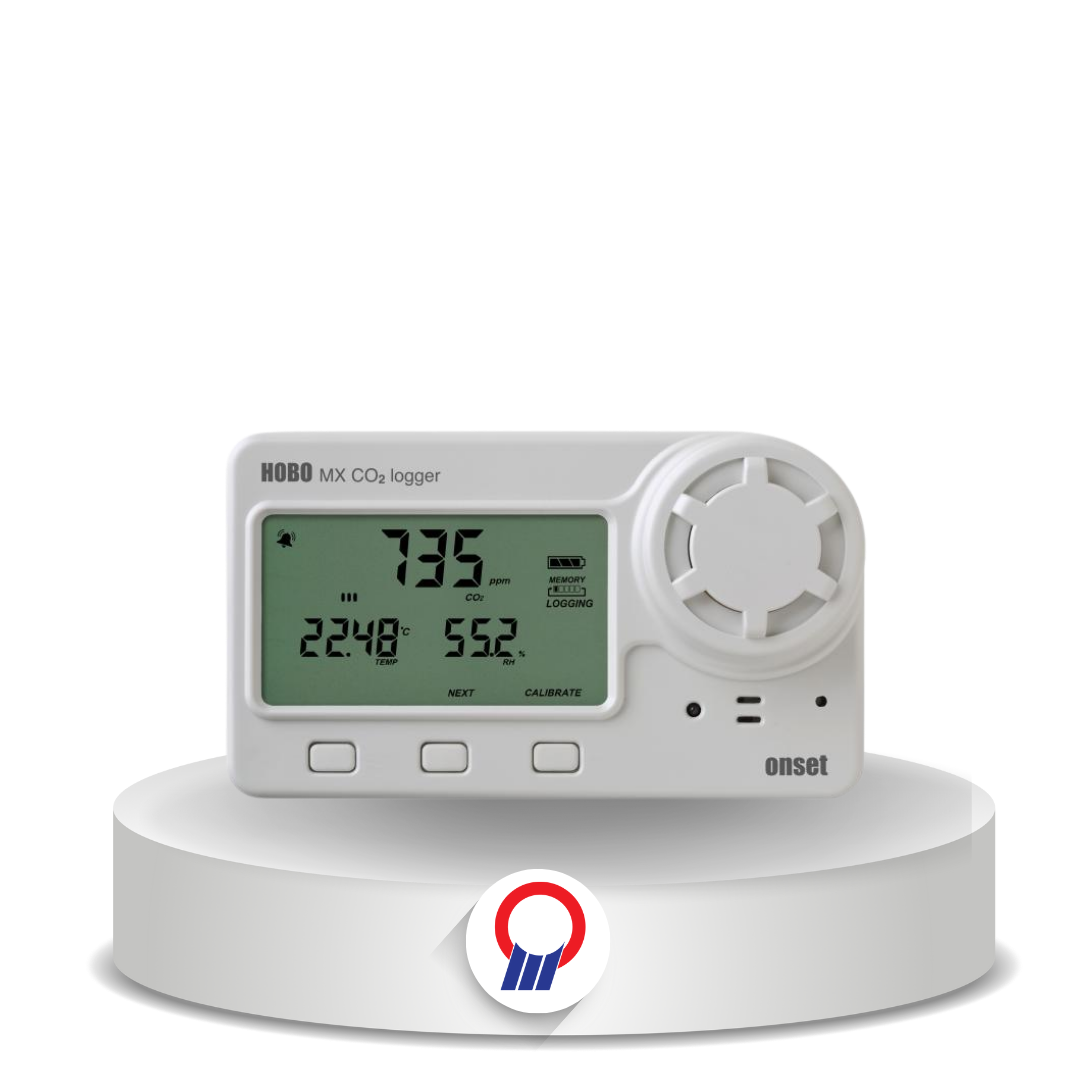

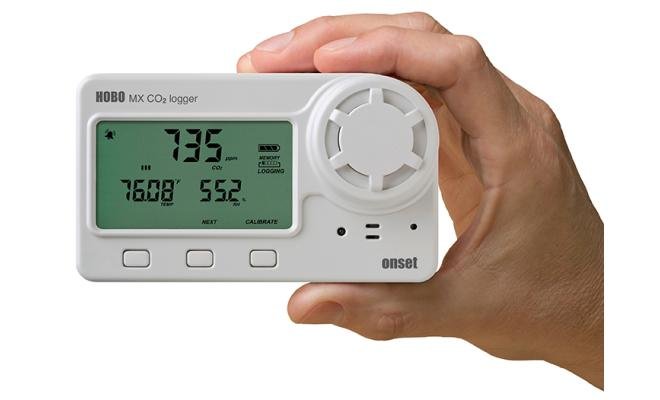

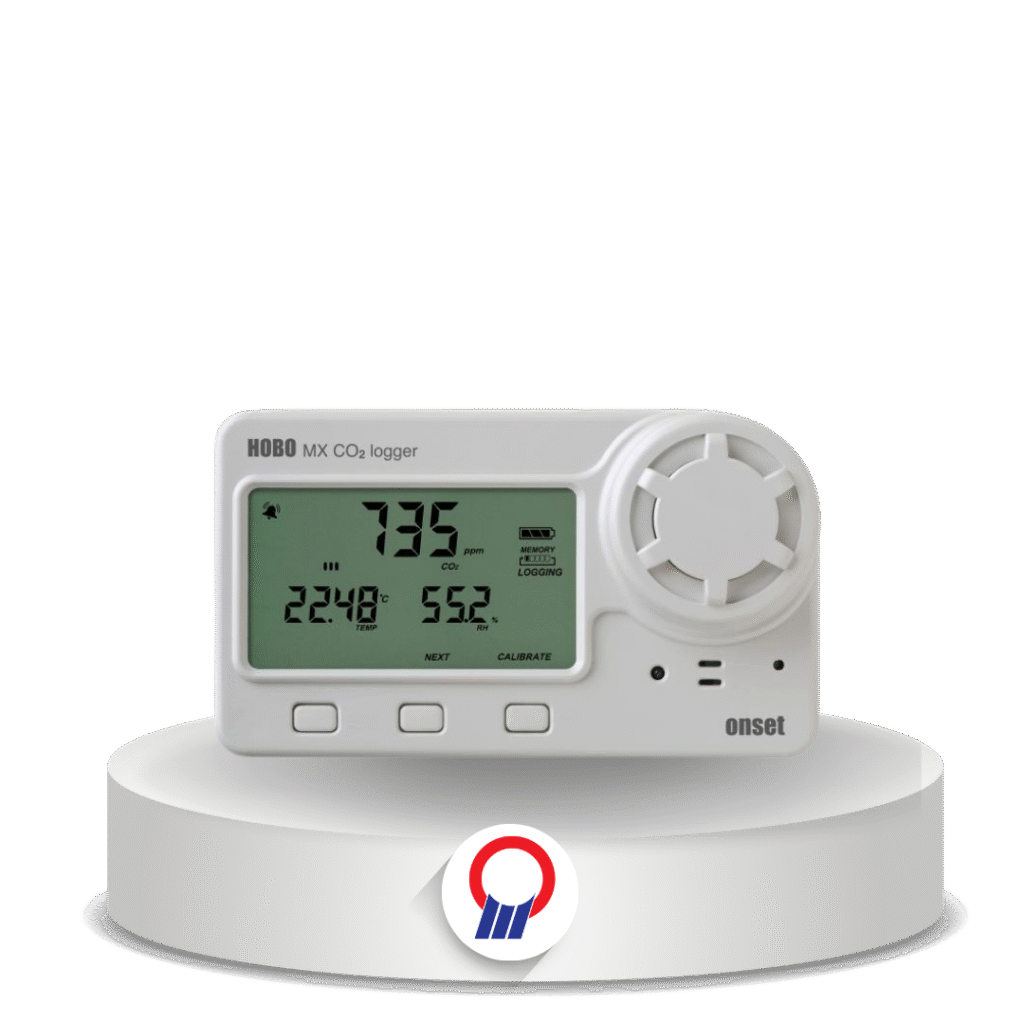

HOBO Carbon Dioxide/Temp/RH Data Logger – MX1102A

Overview

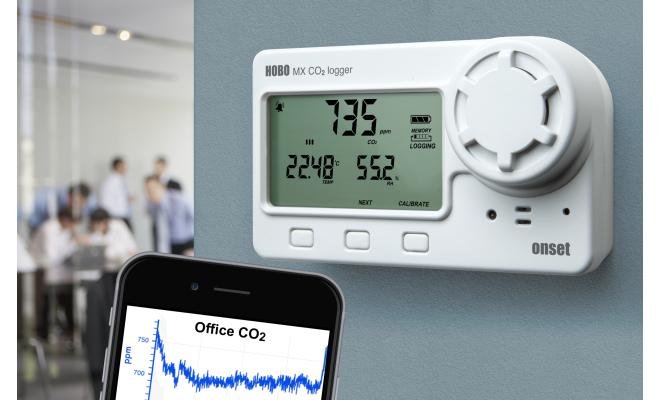

Data logger nirkabel untuk mengukur dan merekam kadar CO₂, suhu, dan kelembapan (RH) di dalam ruangan. Data dibaca lewat Bluetooth dengan aplikasi HOBOconnect dalam jangkauan sekitar 30 m.

Fitur Utama

  • Sensor CO₂ NDIR dengan kalibrasi otomatis untuk akurasi yang terjaga
  • Komunikasi nirkabel Bluetooth untuk konfigurasi dan pengambilan data
  • Baterai tahan sekitar 6 bulan pada interval pencatatan CO₂ 5 menit
  • Alarm batas atas dan bawah dengan indikator visual dan suara
  • Sekaligus memantau suhu dan kelembapan

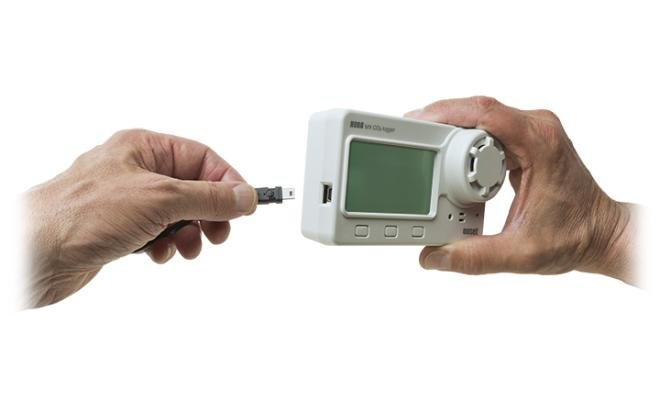

  • Port USB untuk dipakai dengan software HOBOware di komputer
Tanya via WhatsApp
Merk
HOBO
Kategori
CO2 Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building

Detail Produk

Specification Value
CO2 Sensor
Range 0 to 5,000 ppm
Accuracy ±50 ppm ±5% of reading at 25°C and 1,013 mbar
Warm-up Time 15 seconds
Calibration Auto or manual to 400 ppm
Operating Pressure Range 950 to 1,050 mbar (use Altitude Compensation outside this range)
Sensing Method Non-dispersive infrared (NDIR) absorption
Response Time 1 minute to 90% in airflow of 1 m/s
Temperature Sensor
Range 0° to 50°C
Accuracy ±0.21°C from 0° to 50°C
Resolution 0.024°C at 25°C
Drift <0.1°C per year
RH Sensor
Range 1% to 90% RH (non-condensing); 1% to 70% RH when CO2 sensor is enabled
Accuracy ±2% from 20% to 80% typical at 25°C
Resolution 0.01%
Drift <1% per year typical
Logger
Wireless Data Standard Bluetooth Smart; approx. 30.5 m line-of-sight
Operating Range 0° to 50°C; 0 to 95% RH (non-condensing)
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval (normal, statistics) or burst
Memory Modes Wrap when full or stop when full
Start Modes Immediate, push button, date & time, or next interval
Stop Modes When memory full, push button, date & time, or after a set logging period
Power Source 4 AA 1.5 V batteries (user replaceable) or USB power (5 V DC, 2 W)
Battery Life 6 months typical, logging/sampling intervals of 5 minutes or slower
Memory 128 KB (84,650 measurements, maximum)
Download USB 2.0 approx. 20 seconds; Bluetooth approx. 60 seconds
Size 7.62 x 12.95 x 4.78 cm
Weight 267.4 g
Environmental Rating IP50
