HOBO 4-Channel Analog Data Logger-HOBO MX1105
HOBO

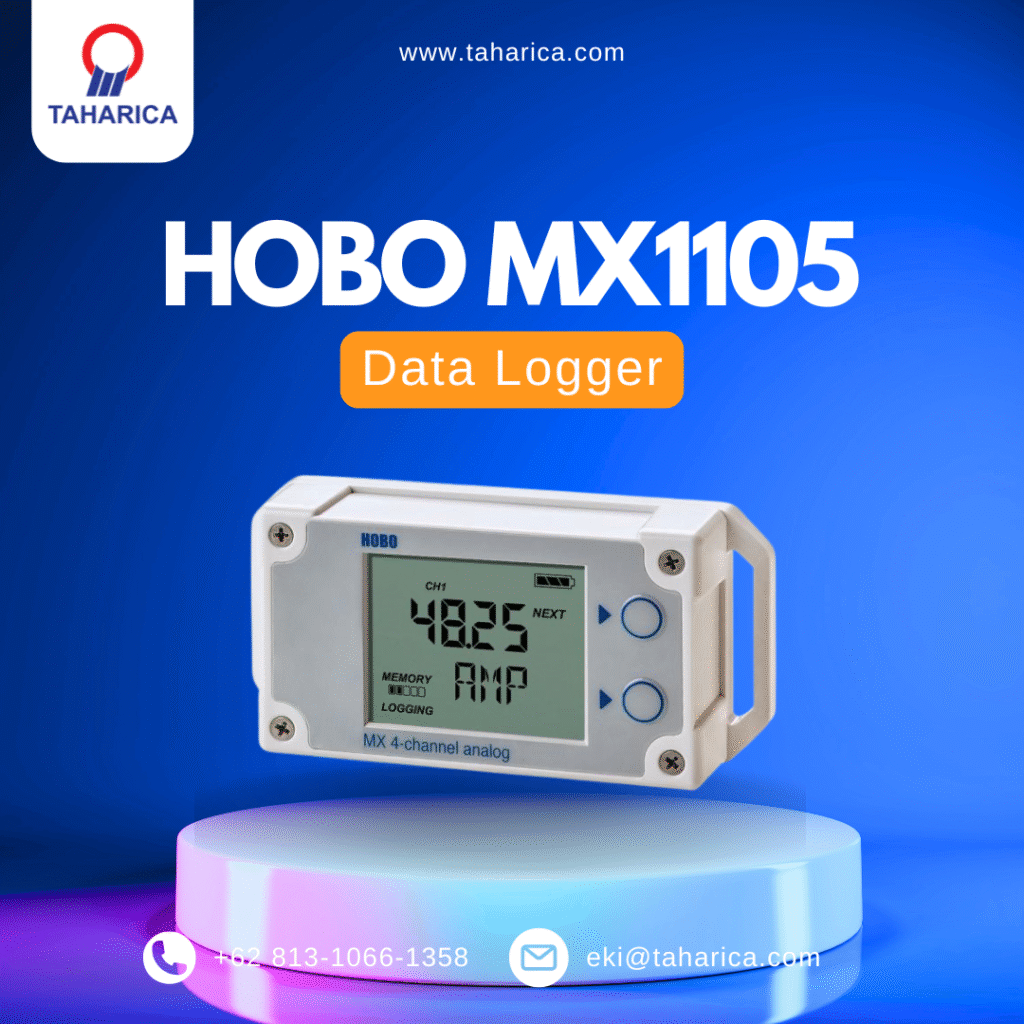

HOBO 4-Channel Analog Data Logger-HOBO MX1105

Overview

Data logger dengan empat input analog untuk merekam data dari sensor eksternal seperti arus, tegangan, suhu, tekanan, dan aliran udara. Layar LCD menampilkan pembacaan terkini, dan data dibaca lewat Bluetooth dengan aplikasi HOBOconnect.

Fitur Utama

  • Empat kanal input analog untuk sensor arus maupun tegangan
  • Komunikasi nirkabel Bluetooth Low Energy dengan jangkauan sekitar 30,5 m (garis pandang)
  • Resolusi 16-bit
  • Memori hingga 1,9 juta pengukuran
  • Sensor Self-Describing yang terkonfigurasi otomatis saat dipasang
  • Alarm suara dan visual di layar LCD saat sensor terlepas atau pembacaan melewati batas
Tanya via WhatsApp
Merk
HOBO
Kategori
Multi-Channel & Event Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Environment

Detail Produk

Specification Value
External Analog Input (with suitable cable/sensor)
4-20 mA Range 0 to 20.1 mA
Accuracy ±0.001 mA ±0.2% of reading
Resolution 0.3 µA
0-2.5 V Range 0 to 2.5 V
Accuracy ±0.1 mV ±0.1% of reading
Resolution 40 µV
0-5 V Range 0 to 5.0 V
Accuracy ±0.2 mV ±0.3% of reading
Resolution 80 µV
0-10 V Range 0 to 10 V
Accuracy ±0.4 mV ±0.3% of reading
Resolution 160 µV
0-24 V Range 0 to 24 V
Accuracy ±1.0 mV ±0.3% of reading
Resolution 384 µV
Logger
Operating Range -20° to 70°C
Radio Power 1 mW (0 dBm)
Transmission Range Approx. 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval (normal, statistics) or burst
Memory Modes Wrap when full or stop when full
Start Modes Immediate, push button, date & time, or next interval
Stop Modes When memory full, push button, date & time, or after a set logging period
Time Accuracy ±1 minute per month at 25°C
Battery Two AAA 1.5 V alkaline, user replaceable
Battery Life 1 year (Bluetooth Always On) / 2 years (Bluetooth Always On disabled), at 1-minute logging, 0° to 50°C
Memory 4 MB (1.9 million measurements, maximum)
Full Memory Download Time Approx. 4 to 15 minutes, depending on mobile device
Size 11.28 x 5.41 x 2.92 cm
Weight 123 g
Environmental Rating IP54
