Headspace Oxygen Analyzer DK-190
Saicheng

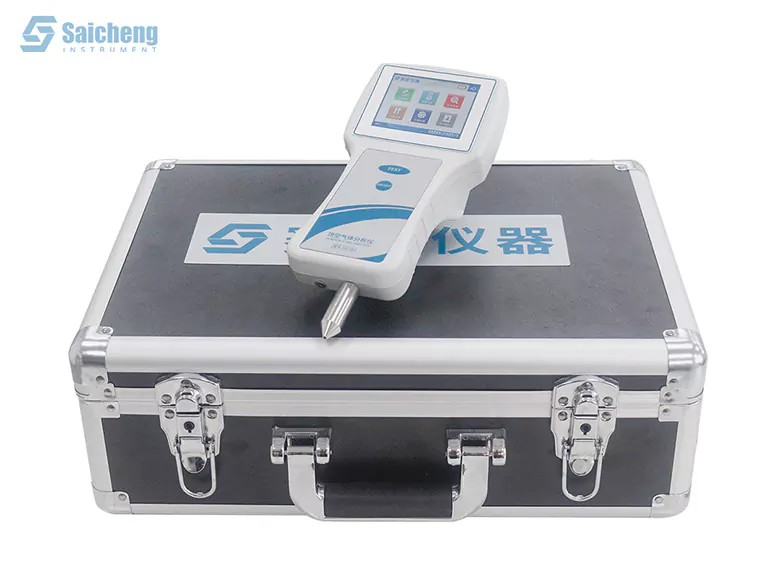

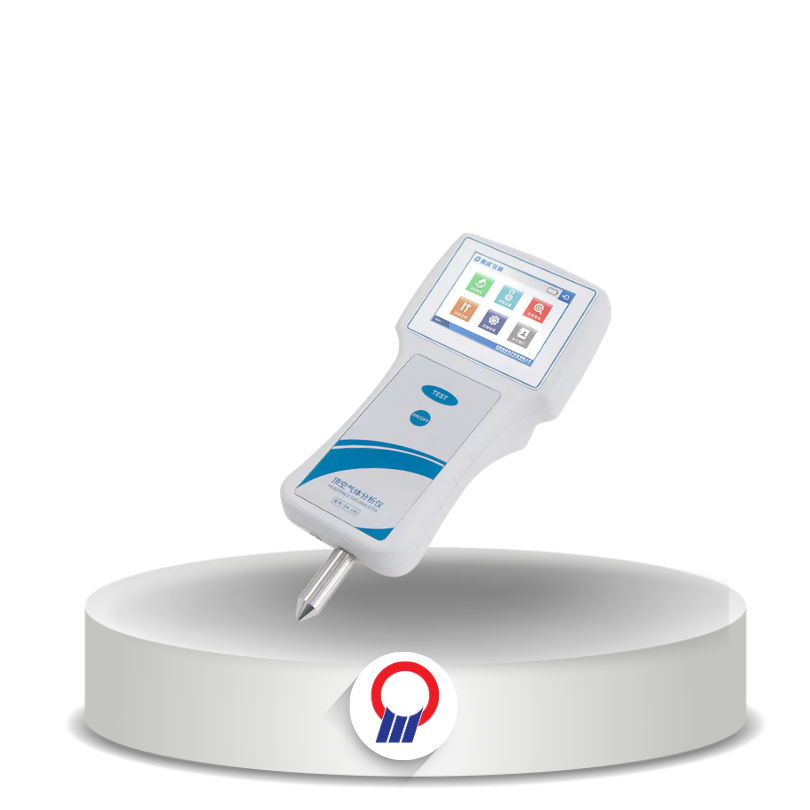

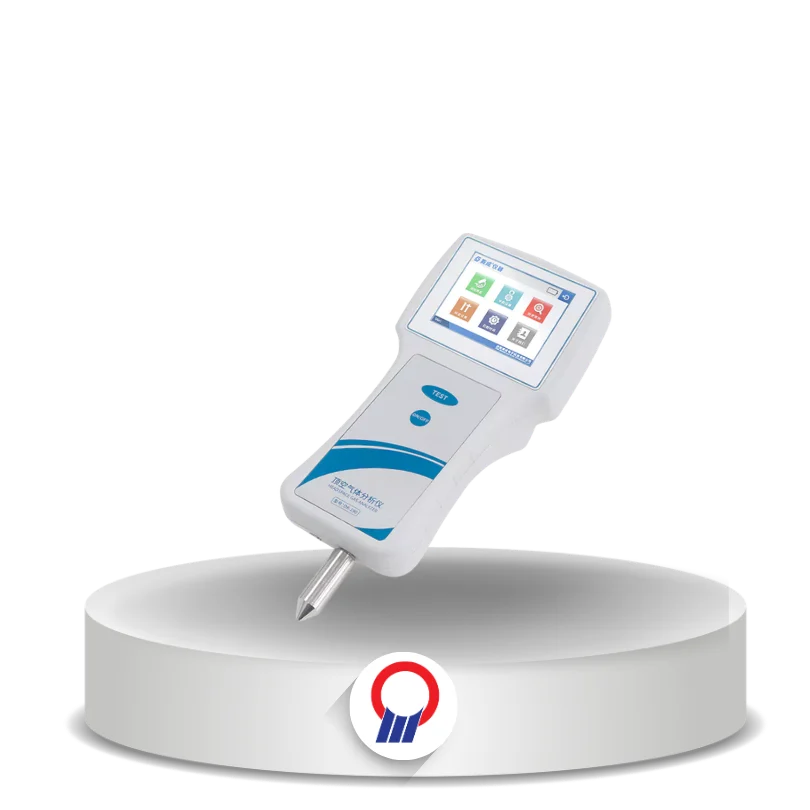

Headspace Oxygen Analyzer DK-190

Overview

Alat ukur kadar gas ruang kosong (headspace) genggam DK-190 untuk wadah tertutup seperti kemasan, botol, dan kaleng. Tersedia sensor CO₂ opsional.

Fitur Utama

  • Sensor O₂ elektrokimia: rentang 0–100%, resolusi 0,01%, akurasi ±0,2%
  • Sensor CO₂ inframerah opsional (0–100%, resolusi 0,01%)
  • Volume sampel minimum 3 ml; sensor O₂ berumur 2 tahun di udara
  • Layar sentuh warna 4,3 inci; penyimpanan data hingga 1.000 entri
  • Sensor tekanan bawaan untuk mengukur tingkat vakum internal sampel
  • Baterai lithium-ion isi ulang; transfer data lewat Ethernet dan USB
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
O₂ Test (Standard)
Testable Gas O₂ (standard)
Test Principle Electrochemistry
Sensor Service Life 2 years (in air)
Test Range 0 ~ 100%
Resolution 0.01%
Test Accuracy ±0.2%
Sampling Volume <3 ml (standard mode)
CO₂ Test (Optional)
Testable Gas CO₂ (optional)
Test Principle Infrared absorption
Sensor Service Life >5 years
Test Range 0 ~ 100%
Resolution 0.01%
Test Accuracy ±(0.03% + displayed value x 5%)
Sampling Volume 15 ml
General
Instrument Dimension 120 mm (W) x 250 mm (D) x 100 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 0.8 kg
Display 4.3-inch color touchscreen
Data Storage 1,000 entries
Data Transfer Ethernet and USB
Minimum Sample Volume 3 ml
Configuration
Standard Instrument, sampling needle, sealing gasket, standard bag
Optional Wireless printer, software for data export, fixture for ampoule
