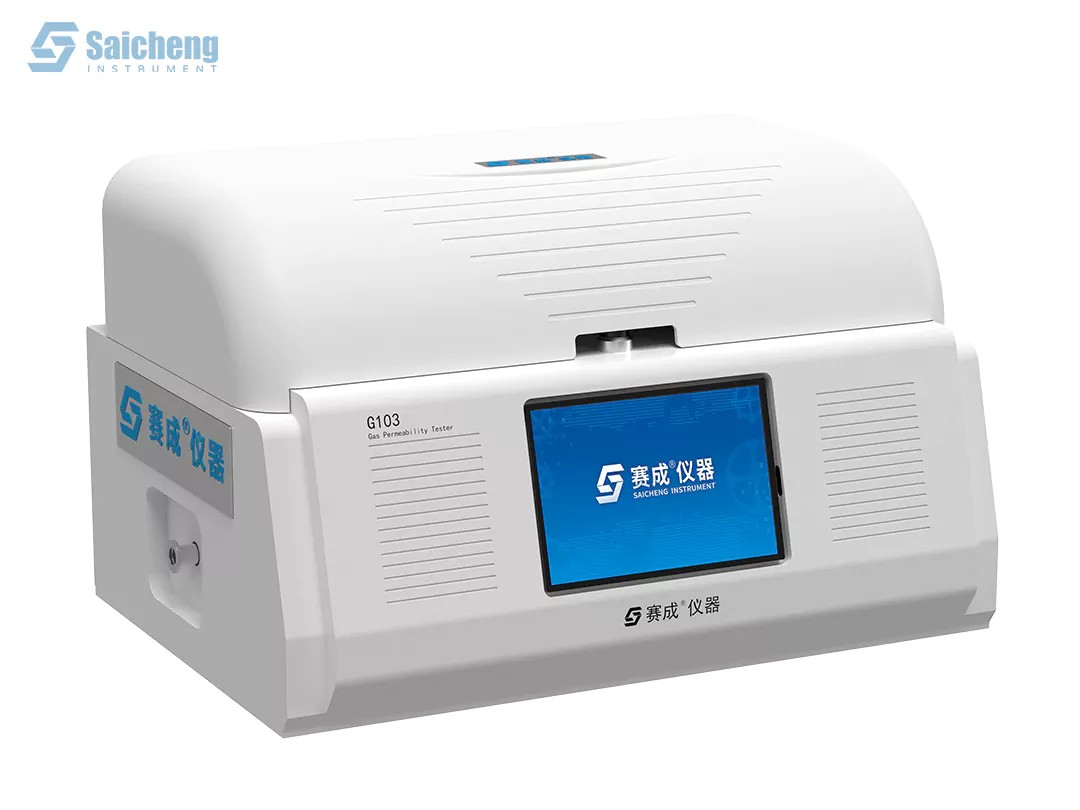

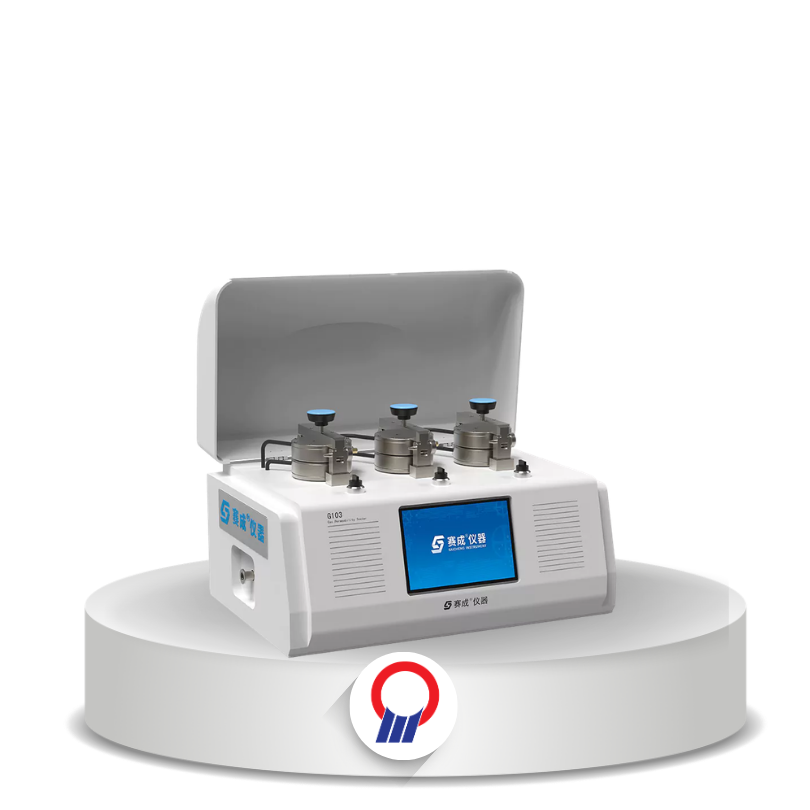

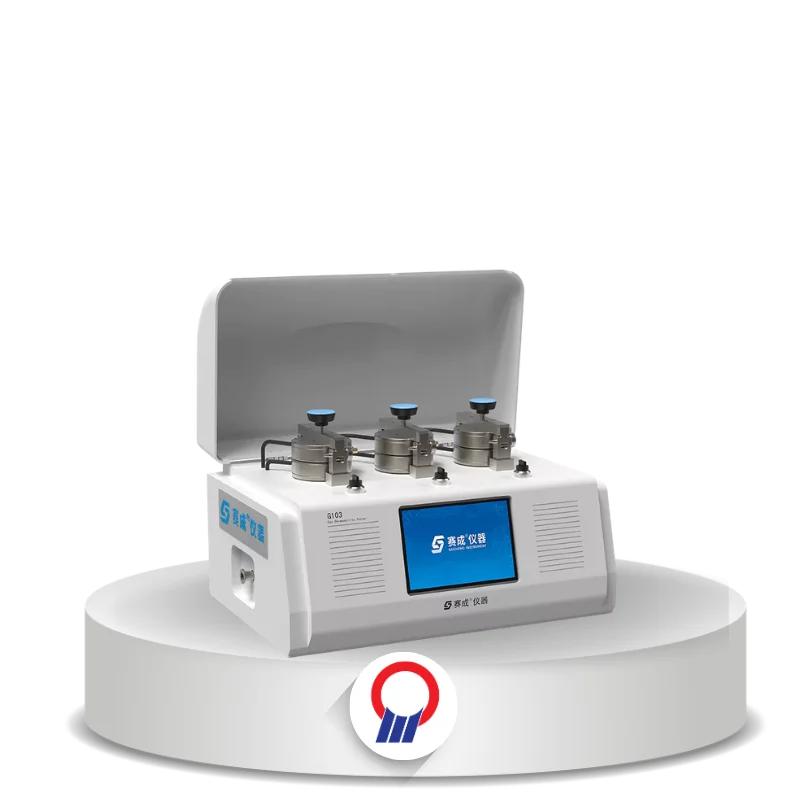

Gas Permeability Tester G103H
Saicheng

Gas Permeability Tester G103H

Overview

Alat uji permeabilitas gas metode tekanan diferensial untuk laju transmisi gas dan permeabilitas film plastik, film komposit, bahan penghalang tinggi, lembaran, dan foil logam. Tiga ruang uji bekerja independen.

Fitur Utama

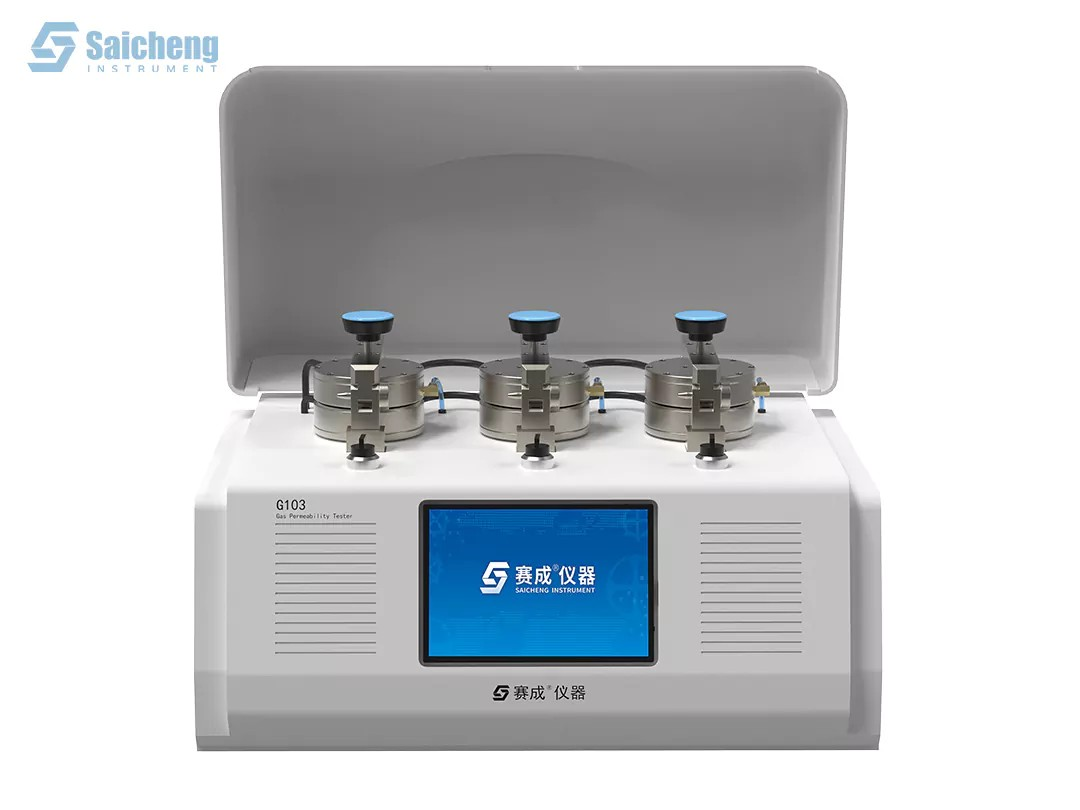

  • Tiga ruang uji independen, 1–3 spesimen dengan hasil terpisah
  • Rentang uji 0,01–50.000 cm³/m²·24h·0,1MPa (volume standar), dapat diperluas
  • Suhu 5–95°C dengan akurasi ±0,1°C
  • Mengukur laju transmisi gas, koefisien kelarutan, difusi, dan permeabilitas dalam satu kali uji
  • Mode uji proporsional, waktu, dan penilaian cerdas; penjepit spesimen pneumatik
  • Dapat menguji O₂, CO₂, N₂, udara, dan helium; gas mudah terbakar (H₂, CH₄) opsional
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Film Test
Test Range 0.01 ~ 50,000 cm³/m²·24h·0.1MPa (standard volume); at least 600,000 cm³/m²·24h·0.1MPa (extended volume)
Number of Specimens 1 ~ 3 (independent testing results)
Vacuum Resolution 0.05 Pa
Vacuum Degree of Test Chamber <10 Pa
Temperature Range 5 ~ 95°C
Temperature Accuracy ±0.1°C
Sample Size Φ95 mm
Test Area 33.18 cm²
Test Gas O₂, N₂, CO₂ etc. (outside of supply scope)
Test Pressure 0.1 MPa ~ 0.26 MPa
Port Size Φ6 mm PU tubing
Instrument Dimension 700 mm (W) x 530 mm (D) x 450 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 70 kg
Test Standards ISO 15105-1, ISO 2556, ASTM D1434, JIS K7126-1, GB/T 1038-2000, YBB 00082003
