Gas Permeability Tester G101
Saicheng

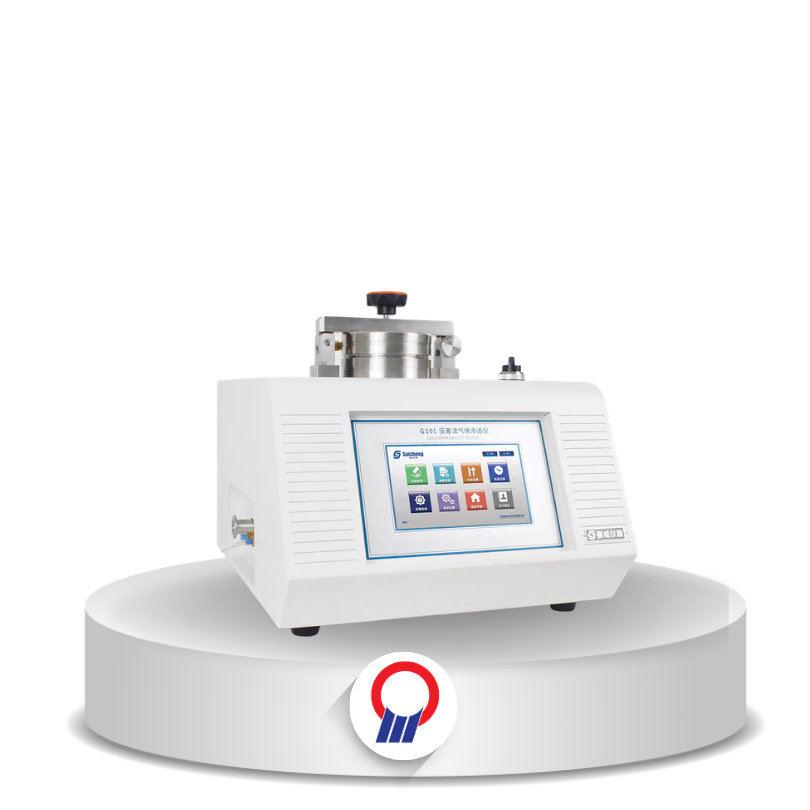

Gas Permeability Tester G101

Overview

Alat uji permeabilitas gas metode tekanan diferensial satu ruang uji untuk menentukan permeansi dan permeabilitas film plastik, film komposit, bahan penghalang tinggi, lembaran, dan foil logam.

Fitur Utama

  • Rentang uji 0,05–50.000 cm³/m²·24h·0,1MPa (volume standar), dapat diperluas
  • Mengukur laju transmisi gas, koefisien kelarutan, difusi, dan permeabilitas dalam satu operasi
  • Sensor tekanan presisi tinggi dan layar sentuh warna 7 inci
  • Mode uji proporsional, waktu, dan penilaian cerdas
  • Pengendali suhu dari suhu ruang sampai 95°C ±0,1°C (opsional)
  • Dapat menguji O₂, CO₂, N₂, udara, dan helium
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Film Test
Test Range 0.05 ~ 50,000 cm³/m²·24h·0.1MPa (standard volume); at least 600,000 cm³/m²·24h·0.1MPa (extended volume)
Number of Specimens 1
Vacuum Resolution 0.05 Pa
Vacuum Degree of Test Chamber <10 Pa
Temperature Range Ambient ~ 95°C (optional)
Temperature Accuracy ±0.1°C
Sample Size Φ95 mm
Test Area 33.18 cm²
Test Gas O₂, N₂, CO₂ etc. (outside of supply scope)
Test Pressure 0.1 MPa ~ 0.15 MPa
Port Size Φ6 mm PU tubing
Instrument Dimension 400 mm (W) x 450 mm (D) x 420 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 30 kg
Test Standards ISO 15105-1, ISO 2556, ASTM D1434, JIS K7126-1, GB/T 1038-2000, YBB 00082003
Configuration
Standard Instrument, professional software, 485 communication cable, micro printer, sample cutter, filter paper sampler, vacuum grease, vacuum pump, fast quantitative filter paper
Optional Computer, reference film, vacuum pump oil, oxygen pressure reducing valve, water bath temperature control device, temperature control device
