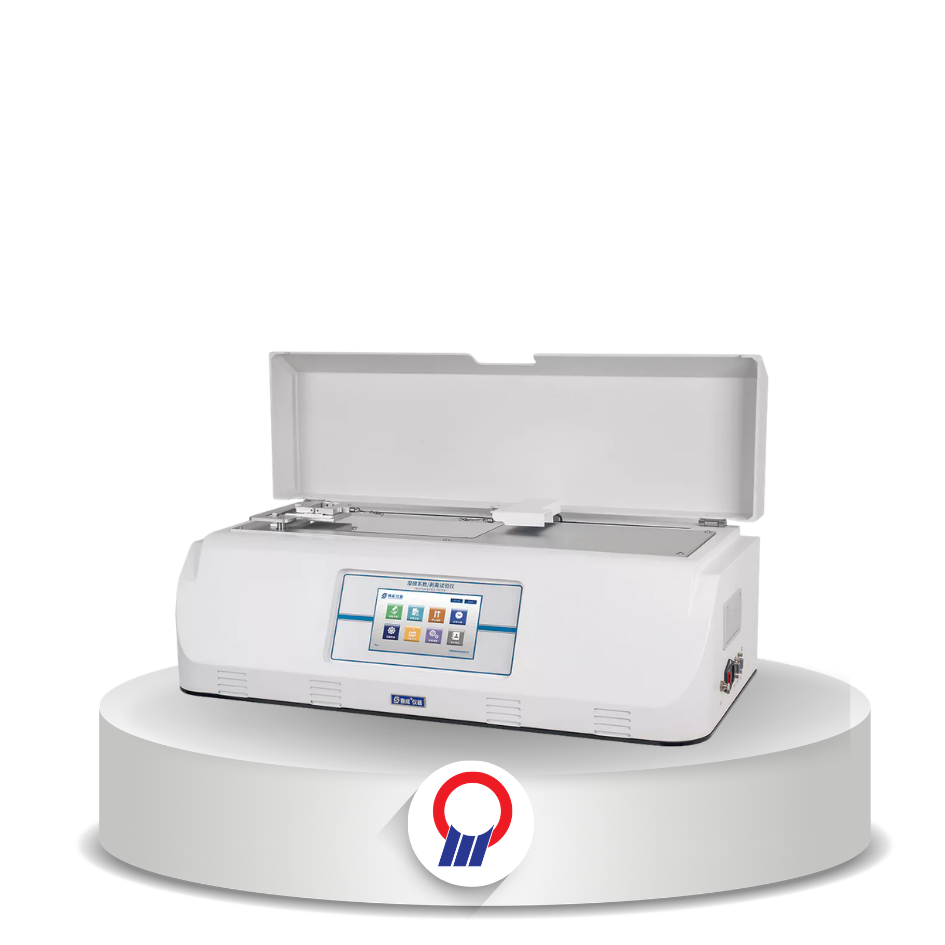

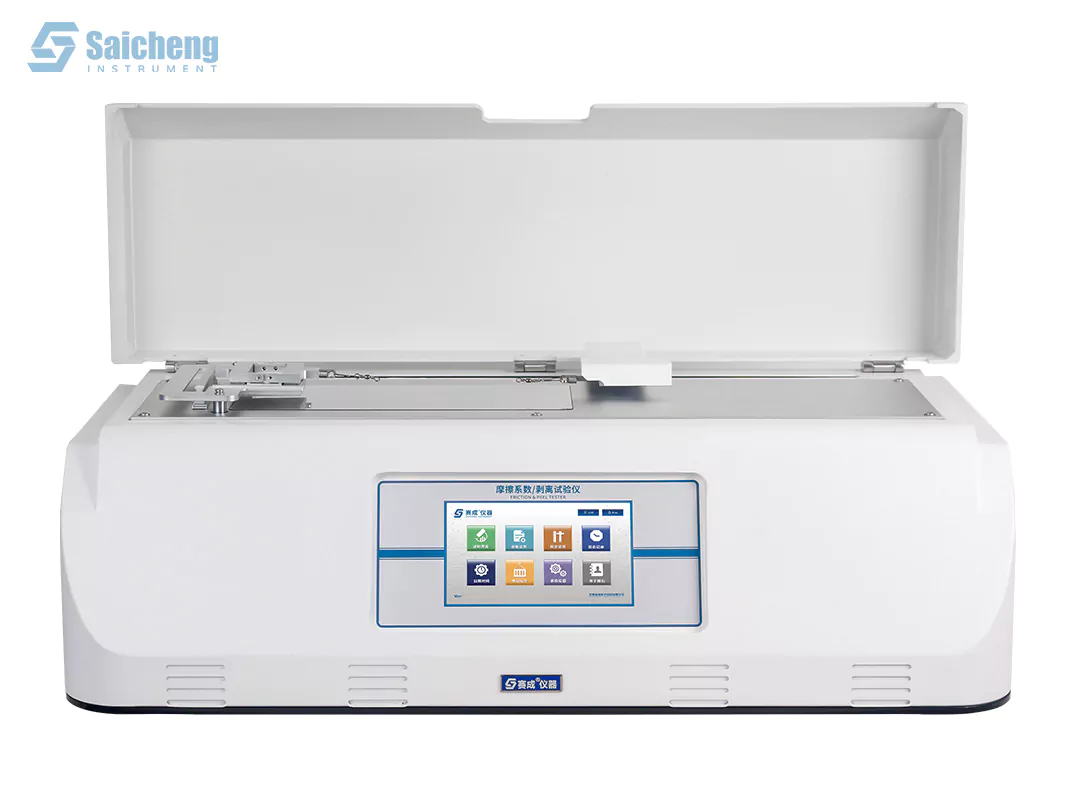

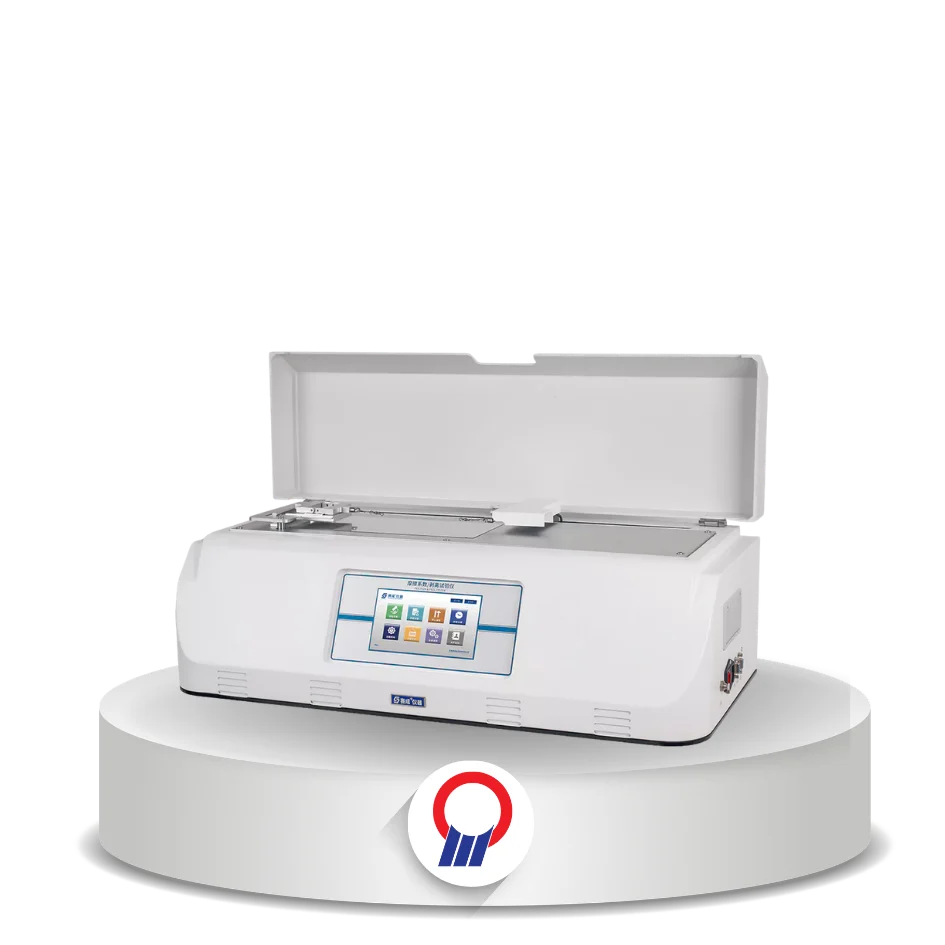

Friction Peel Tester X-810

Description

Alat Uji Geser dan Lepas X-810 mengukur koefisien gesekan statis dan dinamis, serta melakukan uji kekuatan segel, uji lepas 180°, dan uji lepas 90°.

7-inch color touchscreen with graphical user interface (GUI)
Two test modes of coefficient of friction test and peel test.
Wide range, high-precision temperature control device can easily test samples at different temperatures.
Adjustable speed can meet different test conditions.
Versatility to meet ASTM, ISO, TAPPI and GB standards
The test table and slide block of the standard instrument are degaussed and remanence tested, which effectively reduces the system test error.
Micro computer control, convenient for users to carry out test operation quickly.

Item Spesifikasi	Detail Parameter
Capacity Range	0 ~ 5 N (Standard)
	10 N, 30 N (Optional)
Accuracy	0.5% FS
Mass of Sled	200g, 500g (Standard)
	100g, 1000g, 1814g, 2000g (Optional)
Test Speed	0 ~ 600 mm/min (Dapat diatur)
Test Temperature	Suhu Ruangan ~ 99.9 °C
Instrument Dimension	800 mm (W) x 390 mm (D) x 250 mm (H)
Power Supply	AC 100-240V 50/60Hz (Dapat disesuaikan dengan kebutuhan lokal)
Net Weight	32 kg
