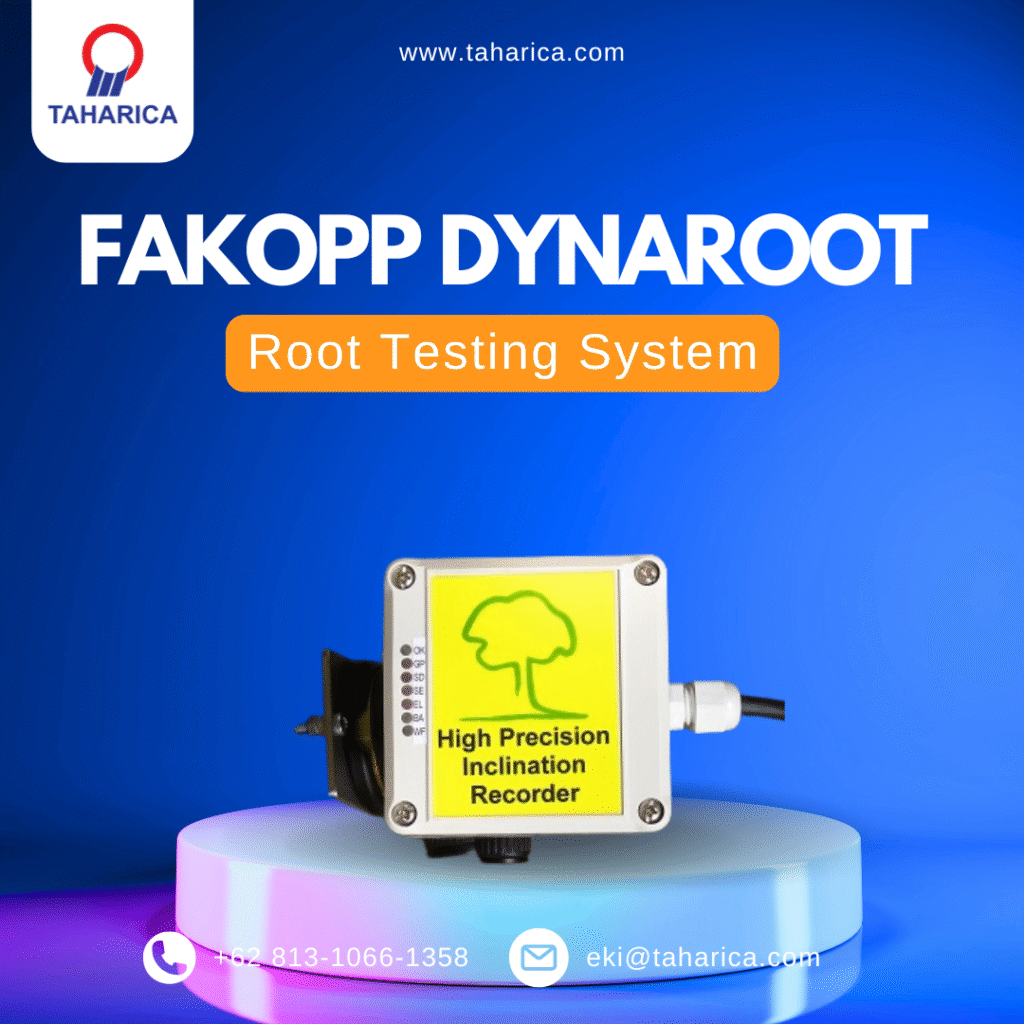

Fakopp Dynaroot Testing System
Fakopp

Fakopp Dynaroot Testing System

Overview

Sistem uji akar pohon dinamis DynaRoot untuk menilai stabilitas akar secara non-destruktif dengan memanfaatkan angin alami, menghitung faktor keamanan dengan perangkat lunak DynaTree.

Fitur Utama

  • Memakai angin nyata, sehingga kondisi lingkungan, tajuk, dan tanah ikut terukur
  • Inklinometer dua sumbu rentang ±2° dengan resolusi 0,001° (10 Hz)
  • Anemometer 0–150 km/jam akurasi 0,2 km/jam (1 Hz), dengan GPS bawaan
  • Data tersimpan di kartu SD atau dikirim lewat Wi-Fi ke PC
  • Perangkat lunak DynaRoot-DynaTree untuk Windows menghitung faktor keamanan
  • Kit lengkap: tiang portabel 10 m, jangkar baja, tali, dan koper
Tanya via WhatsApp
Merk
Fakopp
Kategori
Tree Monitoring

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Anemometer
Sampling Rate 1 Hz
Measurement Range 0 ~ 150 km/h
Accuracy 0.2 km/h
Integrated GPS G-STAR IV BU-353-S4
Maximum SD Card 8 GB
Protection IP65
Mounting At least 10 m high, clear of obstructions
Dual-Axis Inclinometer
Measurement Range ±2°
Resolution 0.001°
Sampling Rate 10 Hz
Integrated GPS G-STAR IV BU-353-S4
Maximum SD Card 8 GB
Protection IP65
Operating Voltage / Current 12 V, 20 mA
Operation
Wind Condition Wind gusts of at least 25 km/h (15 mph)
Recording Time At least 3 hours (longer is better)
Software DynaRoot-DynaTree v1.2.104 (Windows); online account required
Inclinometers Minimum 1, 3 recommended
Kit Contents
Items Inclinometer recorder(s), base plate with ball head, screw and screwdriver, software, user’s manual, lead batteries and charger, aluminum case, anemometer (ball type or ultrasonic) and recorder, 10 m portable pole, aluminum tube (6 sections), steel anchor rods (3), 12 m ropes (3), carrying case
