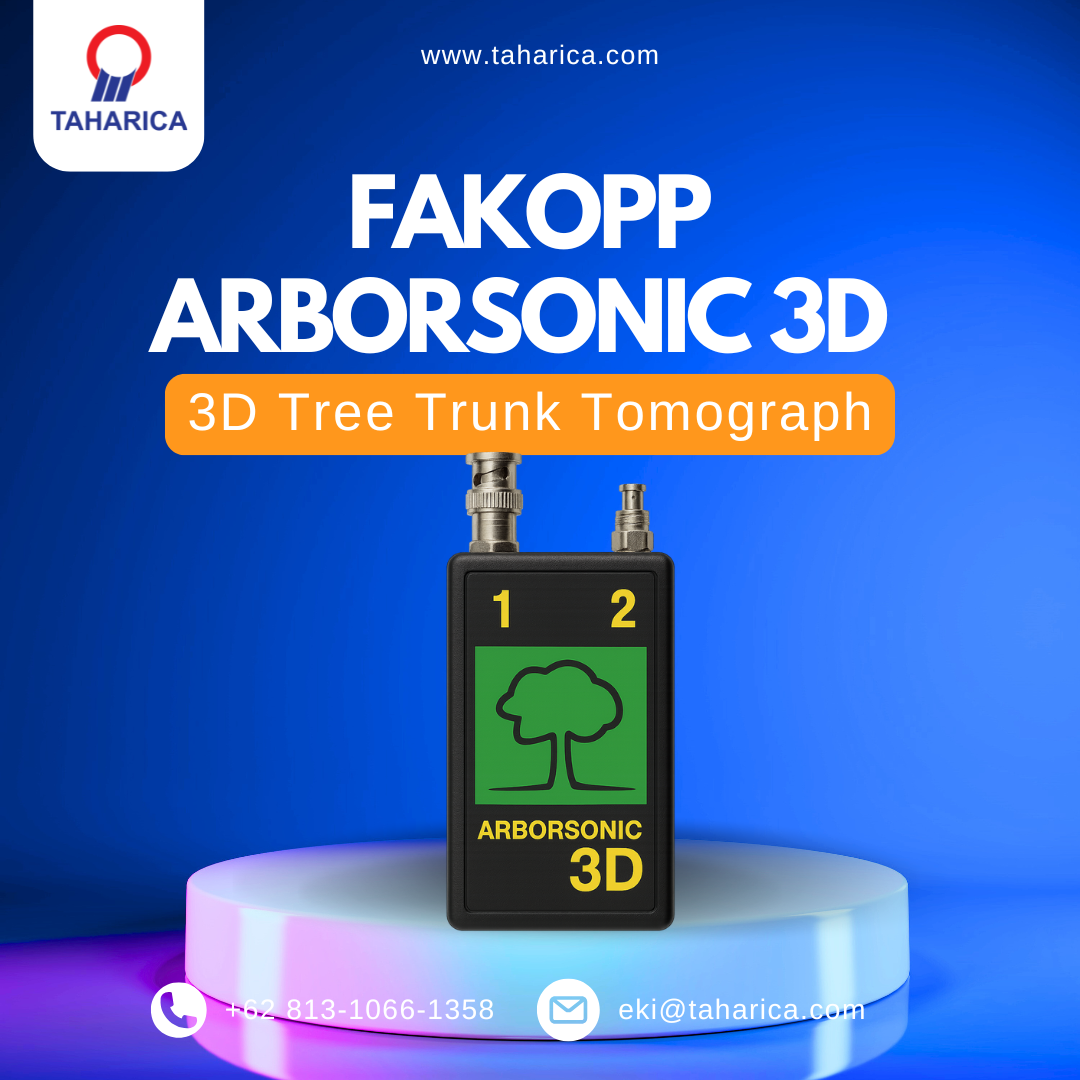

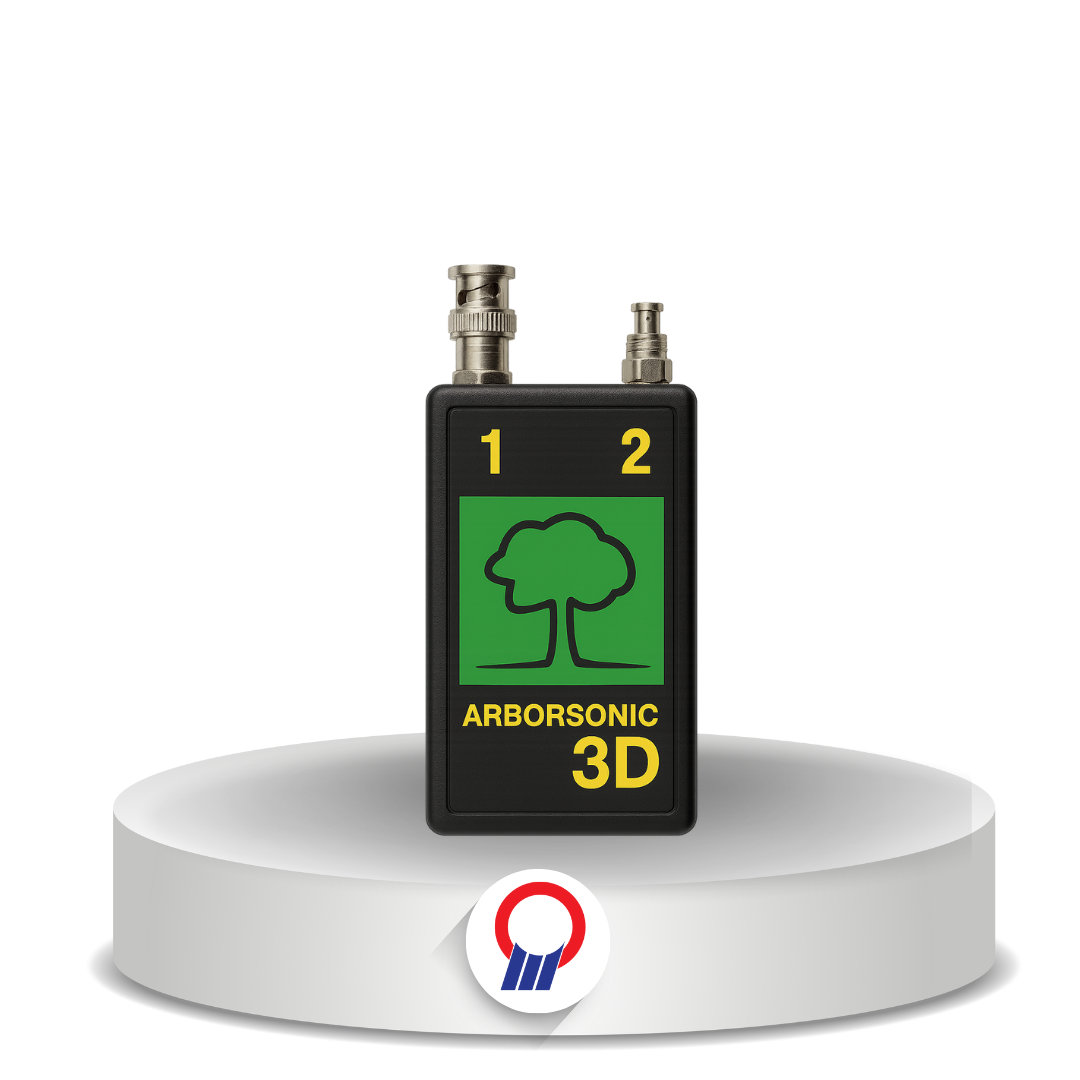

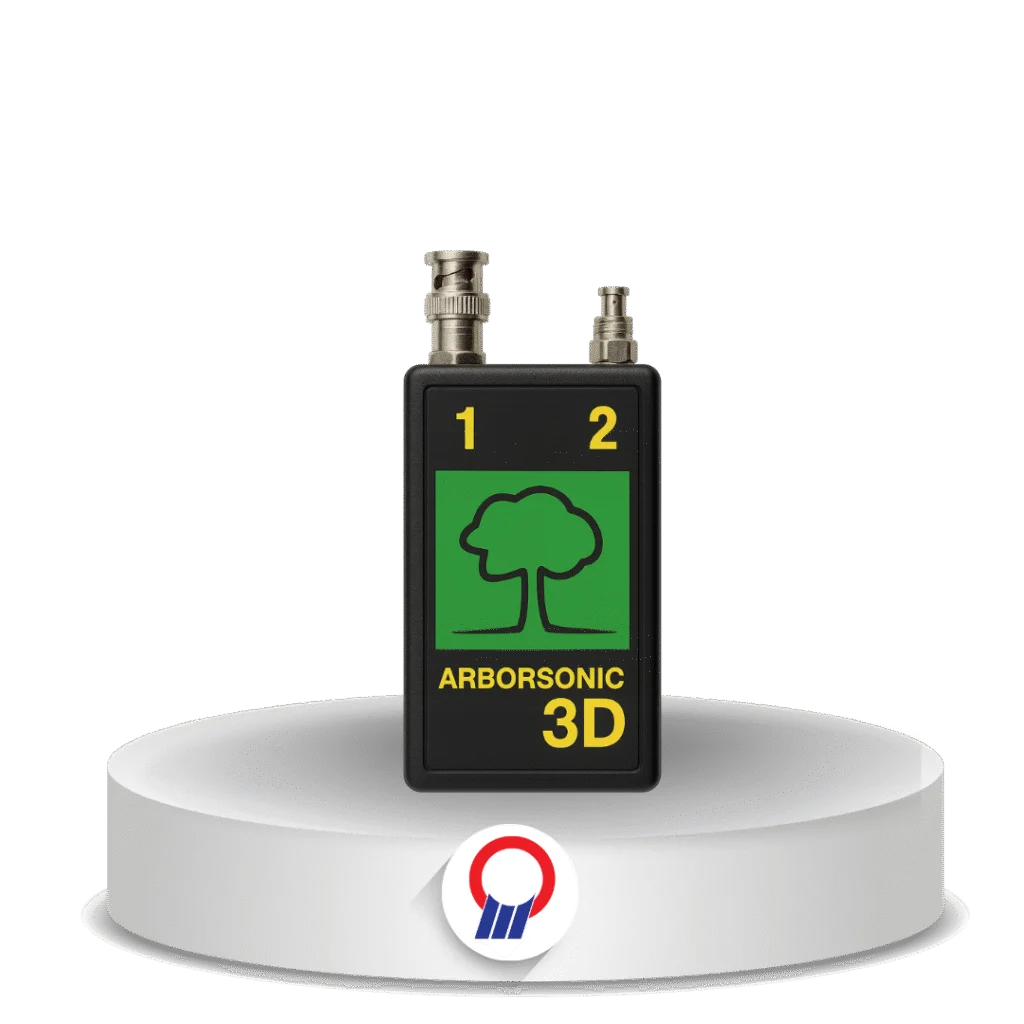

Fakopp Arborsonic 3D Tomograph
Fakopp

Fakopp Arborsonic 3D Tomograph

Overview

Tomograf akustik 3D untuk pengujian pohon non-destruktif: mendeteksi ukuran dan lokasi area busuk atau berlubang di batang dengan mengukur kecepatan suara internal memakai sensor piezo.

Fitur Utama

  • Sensor piezo SD02 berderau rendah, jumlah sensor 10 sampai 32
  • Presisi waktu tempuh ±2 mikrodetik
  • Koneksi ke PC lewat USB atau Bluetooth; pengiriman data kurang dari satu detik per ketukan
  • Perangkat lunak ArborSonic 3D untuk Windows dan Android, termasuk model 3D multi-lapis dan model beban angin (EN1991)
  • Satu penampang dengan 10 sensor selesai sekitar 20 menit, termasuk pemasangan dan pembongkaran
  • Kit lengkap dalam koper Peli dengan palu baja dan karet
Tanya via WhatsApp
Merk
Fakopp
Kategori
Tree Monitoring

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Specification
Sensors SD02 piezo transducers; 10 to 32 sensors (variable)
Travel-time Precision ±2 microseconds
Interface USB or Bluetooth to PC
Data Transmission Under one second per sensor tap
Software ArborSonic 3D 5 (Windows); ArborSonic 3D for Android
Battery Rechargeable 9 V block battery; approx. 2 hours continuous operation
Power Consumption 240 mW
Amplifier Box Size 127 x 58 x 25 mm
Operating Temperature 0 ~ 40°C
Measurement Time Approx. 20 minutes per cross-section with 10 sensors, including assembly, geometry modeling, measurement and disassembly
Weight 6 kg (excluding PC; includes Peli case, hammers, and 10 sensors)
Carrying Case Peli Case 1500EU
Package Contents
Items SD02 piezo transducers, amplifier boxes, battery box and cables, sensor remover tool, tape measure, steel hammer, rubber hammer, Peli case, 2 rechargeable 9 V batteries, battery charger, user’s manual, ArborSonic 3D software, caliper (optional)
