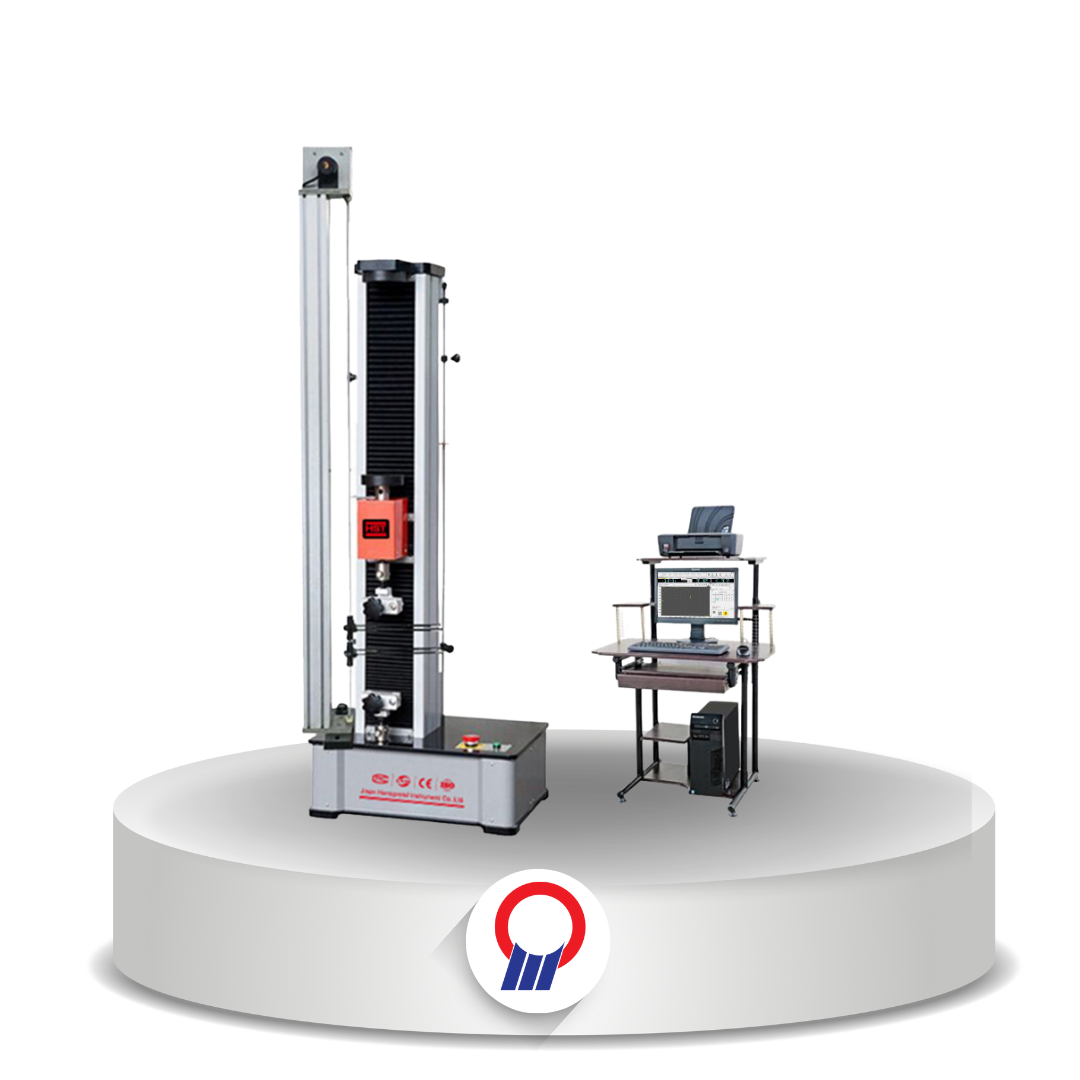

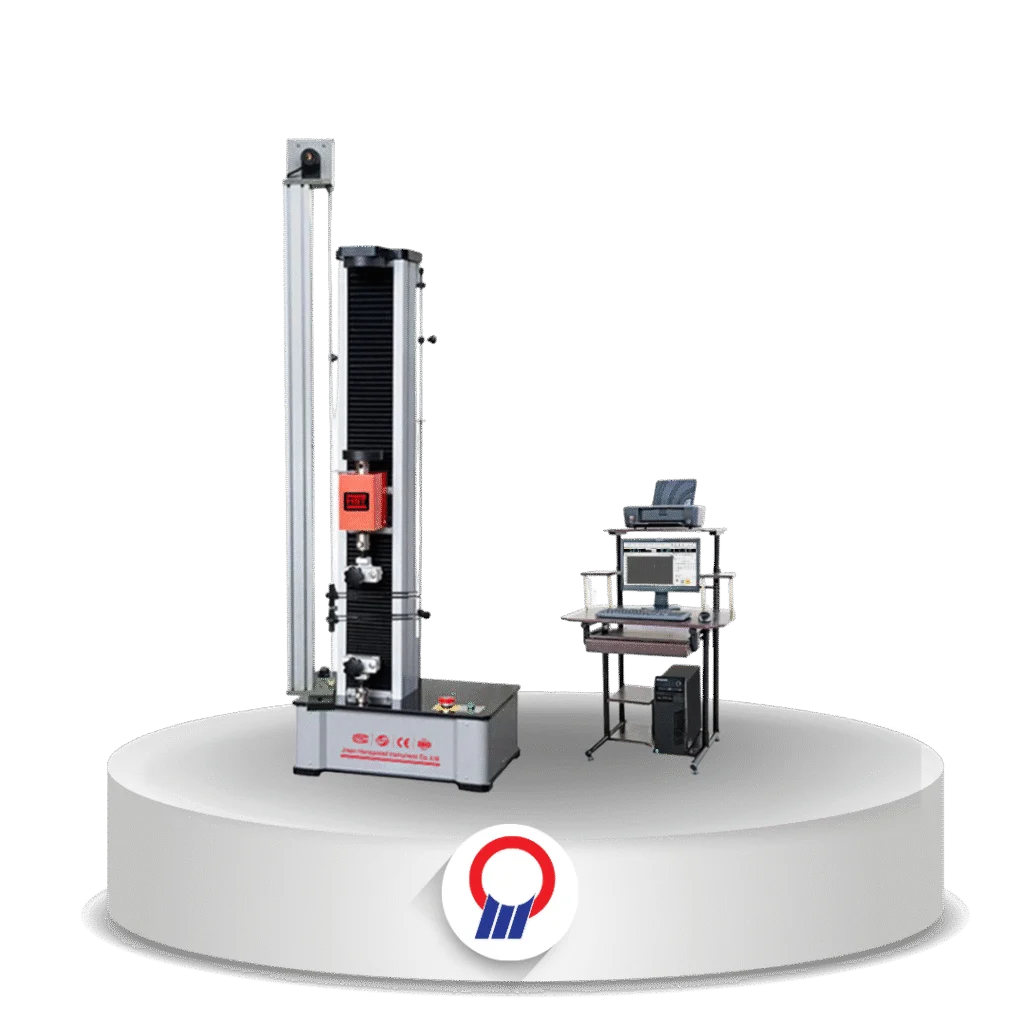

Fabric Tensile strength tester
HST

Fabric Tensile strength tester

Overview

Mesin uji kekuatan tarik kain/tekstil satu kolom (0,1 sampai 5 kN) dengan standar ASTM D751, D1683, D2208, D5034, dan ISO 13934-2.

Fitur Utama

  • Delapan model: 0,1; 0,2; 0,3; 0,5; 1; 2; 3; dan 5 kN
  • Kelas akurasi 0,5; rentang gaya 0,2–100% F·S
  • Kecepatan 0,05–500 mm/menit (stepless)
  • Ruang tarik dan tekan 600 mm, lebar uji 100 mm
  • Standar: ASTM D751 (coated fabric), D1683 (jahitan), D2208 (kulit), D5034 (grab test), ISO 13934-2
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-01, 02, 03, 05, 1, 2, 3, 5
Structure Single column double spaces
Max. Load 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5 kN
Material All aluminum alloy surface spray painting shell
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Displacement 0.01 mm
Test Speed 0.05 ~ 500 mm/min (stepless arbitrary setting)
Speed Accuracy Within ±1% of set speed
Tensile Space 600 mm (can be customized)
Compression Space 600 mm (can be customized)
Test Width 100 mm
Beam Travel Distance 772 mm
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ASTM D751 (coated fabrics), ASTM D1683 (woven apparel fabric seams), ASTM D2208 (leather), ASTM D5034 (grab test), ISO 13934-2
