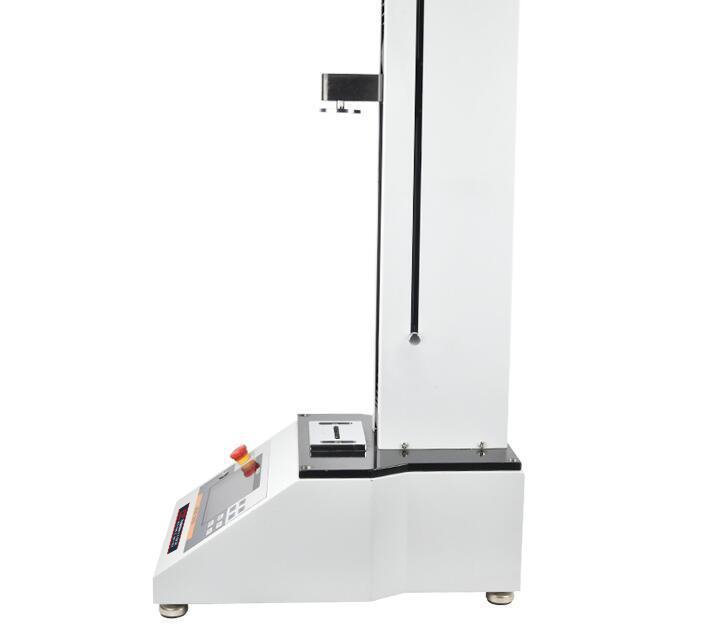

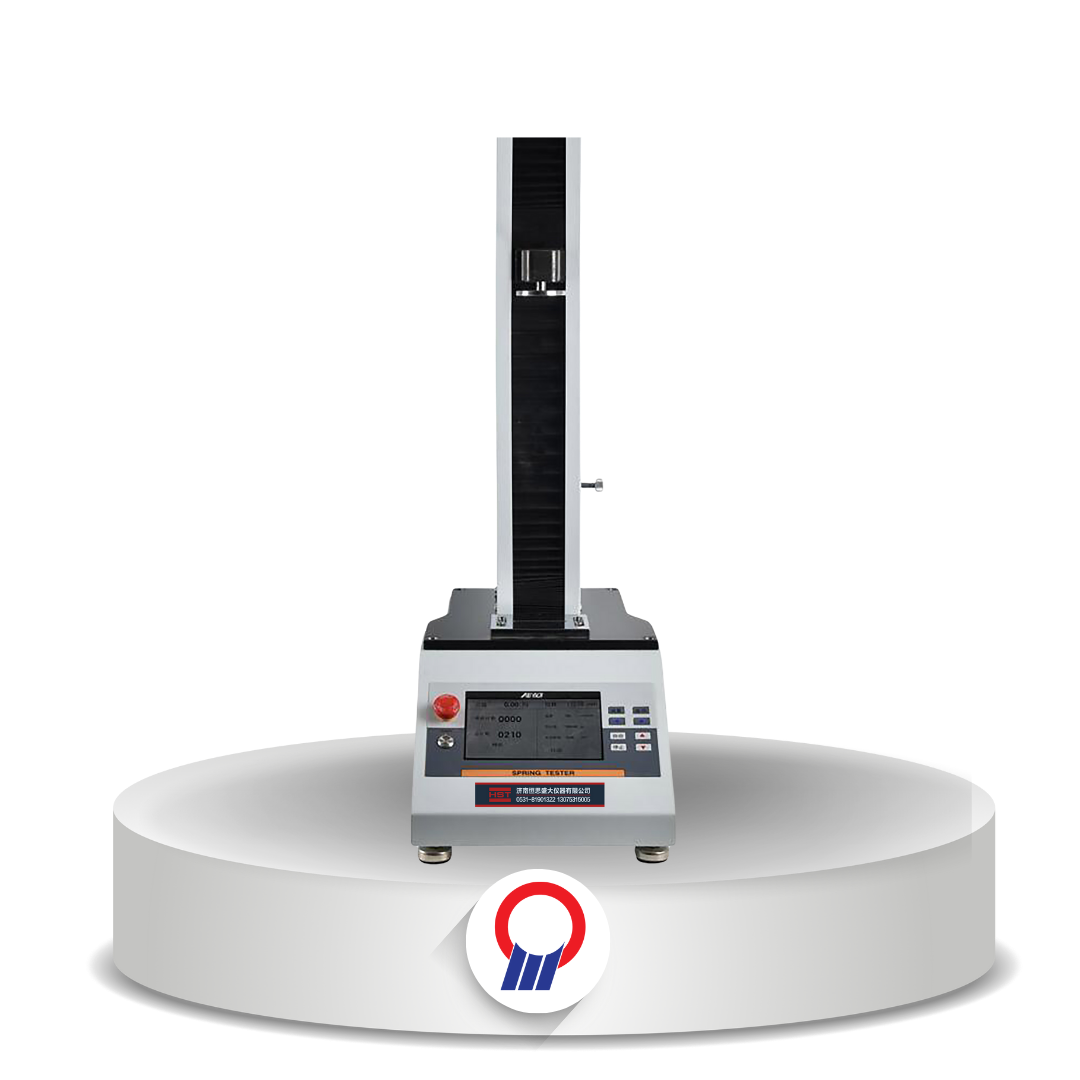

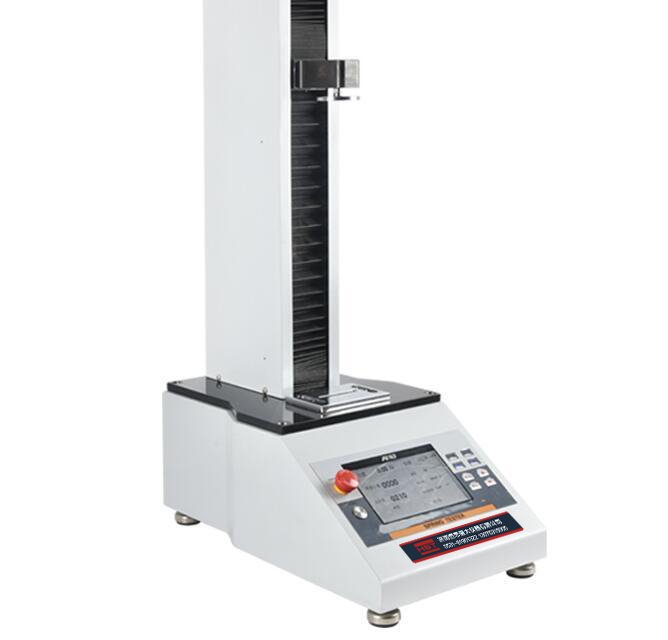

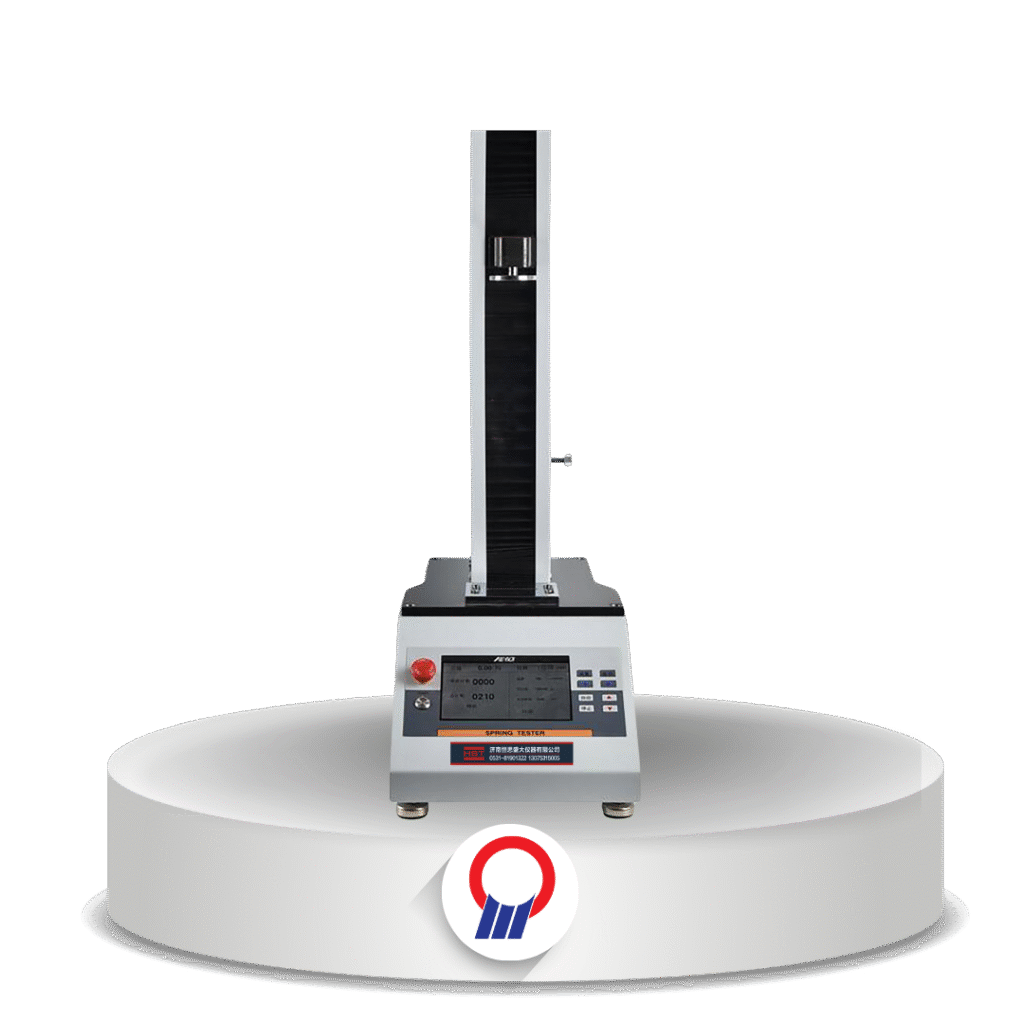

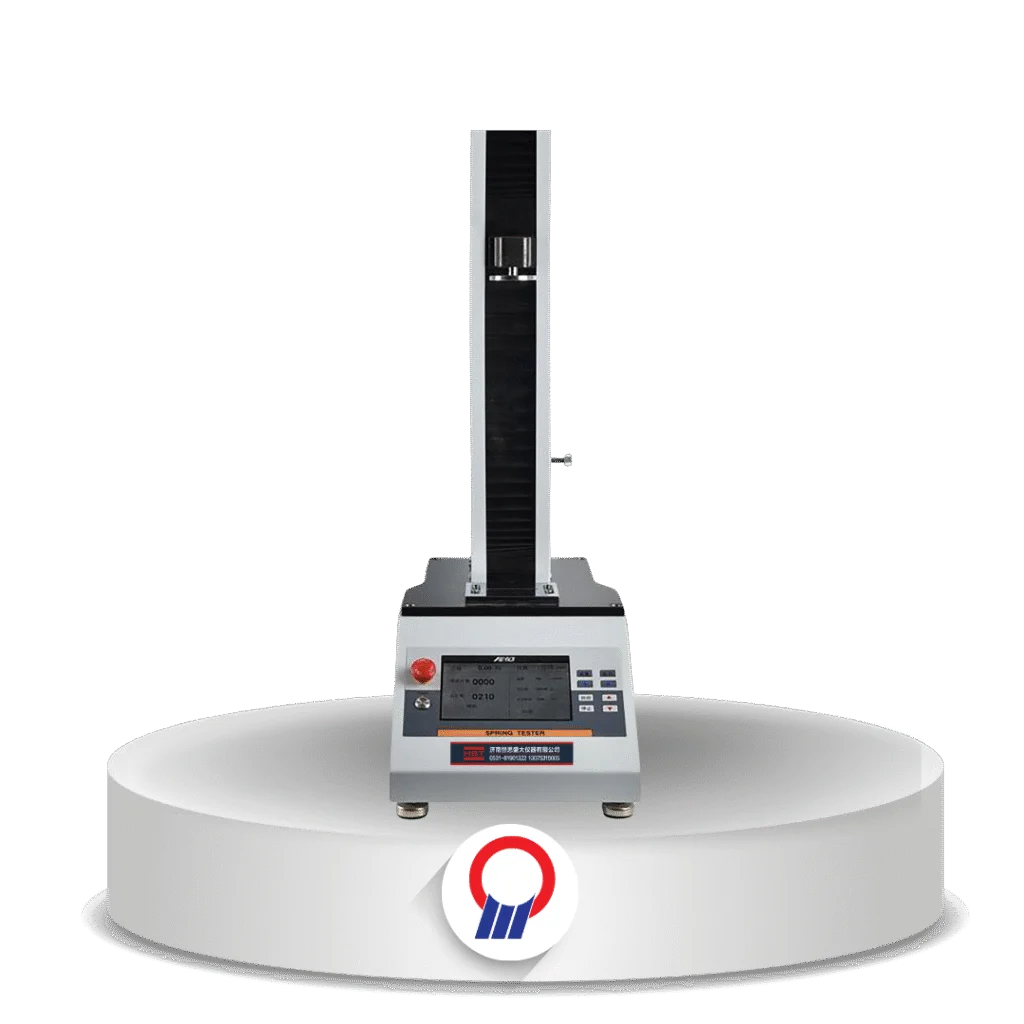

Electric push pull force test vertical machine
HST

Electric push pull force test vertical machine

Overview

Mesin uji gaya tarik-dorong (push-pull) vertikal listrik seri HST-A, kapasitas 2 N sampai 1.000 N, untuk gaya tarik/dorong, gaya masuk, dan uji destruktif.

Fitur Utama

  • Dua belas model: HST-A-2 sampai HST-A-1000 (2 N sampai 1.000 N)
  • Satuan N, kg, dan Lb; akurasi ±0,5% atau ±1%
  • Langkah efektif 400 mm; kecepatan 1–300 mm/menit
  • Tegangan AC 110 V atau AC 220 V
  • Tombol berhenti darurat
  • Dimensi 290 x 500 x 900 mm, bobot bersih 37 kg
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Capacity (Max. Load)
Type Number / Charge HST-A-2: 2 N (0.2 kg / 0.45 Lb); A-3: 3 N; A-5: 5 N (0.5 kg / 1.1 Lb); A-10: 10 N (1 kg / 2.2 Lb); A-20: 20 N; A-30: 30 N; A-50: 50 N (5 kg / 11 Lb); A-100: 100 N (10 kg / 22 Lb); A-200: 200 N; A-300: 300 N; A-500: 500 N (50 kg / 110 Lb); A-1000: 1000 N (100 kg / 220 Lb)
Specification
Load Points (Degree) 0.001N, 0.01N, 0.1N, 0.0001kg, 0.001kg, 0.01kg, 0.0001Lb, 0.001Lb, 0.01Lb
Accuracy ±0.5%, ±1%
Effective Itinerary 400 mm
Test Speed 1 ~ 300 mm/min
Operating Voltage AC 110V or AC 220V
Dimensions 290 x 500 x 900 mm
Net Weight 37 kg
Safety Emergency stop
