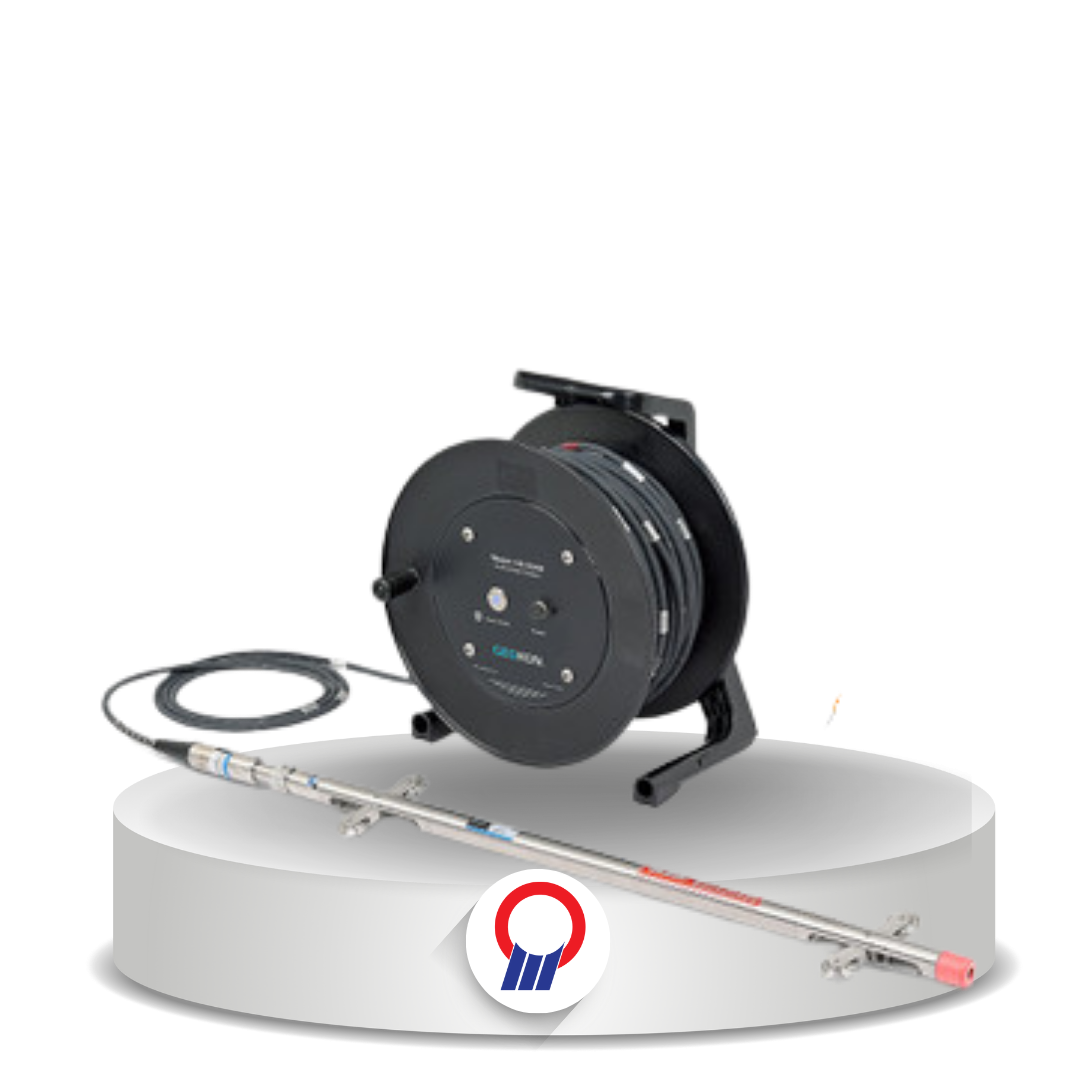

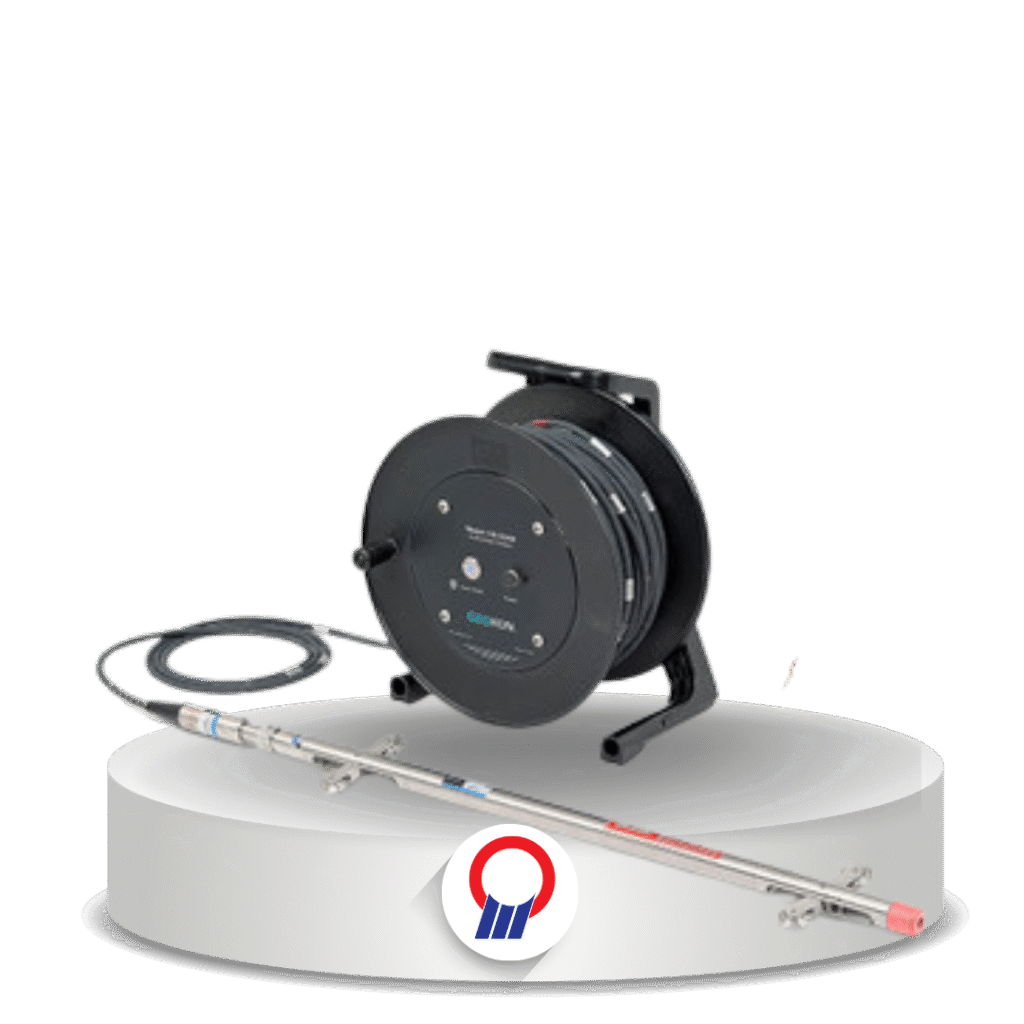

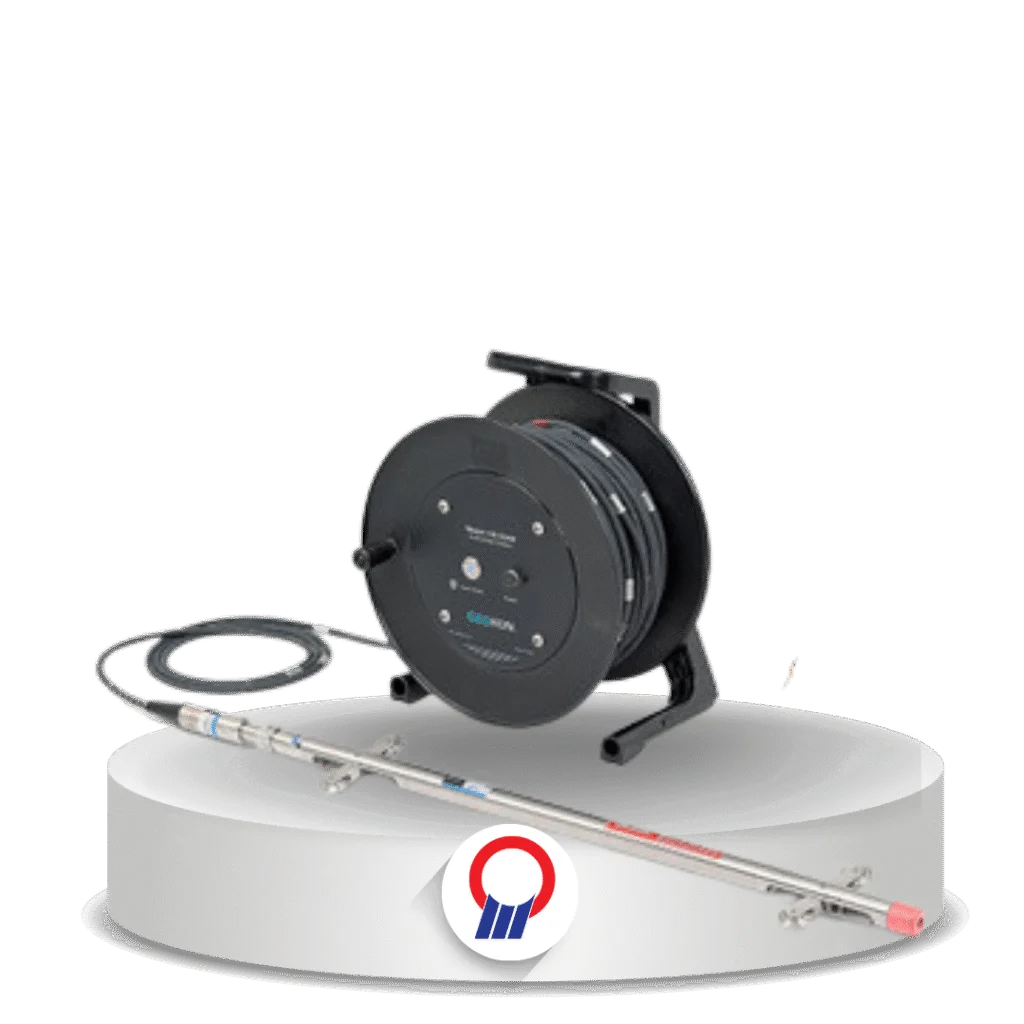

Sistem inklinometer digital lengkap Geokon untuk mengukur gerakan lateral pada longsor, lereng tidak stabil, tanggul bendungan, tempat pembuangan sampah, dinding diafragma, tiang pancang, turap, dan terowongan. Probe digital Model 6105 mengirim data lewat kabel ke Field PC via Bluetooth.
| Specification | Value |
|---|---|
| Inclinometer Probe (Model 6105) | |
| Range | ±90° (calibrated range ±30°) |
| Resolution (99% confidence) | 0.00025° (0.004 mm/m) |
| Precision (99% confidence) | ±0.0075° (±0.13 mm/m) |
| Nonlinearity | ±0.005° across ±30° range (±0.09 mm/m) |
| Temperature Dependent Uncertainty | ±0.001° across ±5°; ±0.0016° across ±15°; ±0.0026° across ±30° |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Wheel Base | 0.5 m or 2 ft |
| Length x Diameter | 700 x 25 mm or 32 x 1 in (cable connector adds 150 mm) |
| Casing Size I.D. | 48 to 89 mm (2 to 3.5 in) |
| Weight (with case) | 7.5 kg (16 lb) |
| Shock Survival | 5000 g |
| Maximum Cable Length | 500 m (1640 ft) |
| Compass Sensor Resolution | ±0.1° |
| Compass Sensor Repeatability | ±1.6° |
| Interface (Cable Reel) | |
| Battery | > 40 hours continuous operation per charge |
| Temperature Range | -30°C to +50°C |
| Communication | Bluetooth to Field PC |
| Field PC (Model FPC-4) | |
| Operating System | Android 14 (GMS certified) |
| Processor | Qualcomm QCM4490 octa-core, up to 2.4 GHz |
| Memory / Storage | 8 GB RAM; 128 GB ROM; microSDXC up to 512 GB |
| Display | 6.26 in (159 mm), 2280 x 1080 FHD+, Gorilla Glass 5 |
| Connectivity | 5G/4G LTE, Wi-Fi, Bluetooth 5.2, GPS/GLONASS/Beidou/Galileo/QZSS, NFC, USB Type-C |
| Ruggedness | IP68; MIL-STD-810H; operating temperature -20°C to 60°C |
| Dimensions / Weight | 174 x 85 x 15 mm; 325 g |
| Battery | 4500 mAh removable Li-ion; 300 mAh internal for hot-swapping |
| Camera | Front 16 MP; rear 48 MP with LED |
| Ordering | |
| Models | GK-604D-20M to -200M (cable 20 to 200 m marked every 0.5 m); GK-604D-100E to -500E (cable 100 to 500 ft marked every 2 ft) |
| System Includes | Digital MEMS biaxial probe, FPC-4 Field PC, software, cable reel, carry cases, pulley assembly, control cable |
