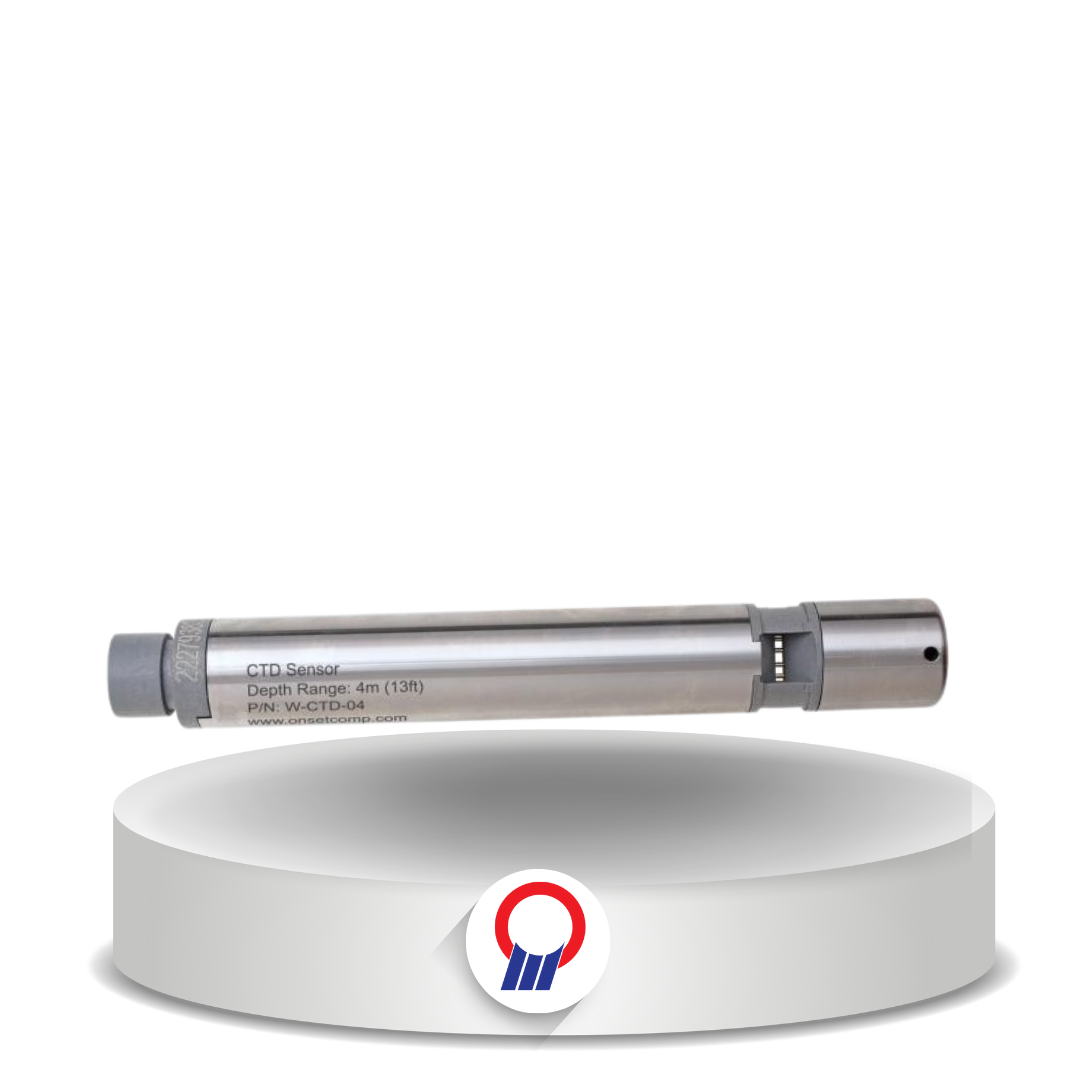

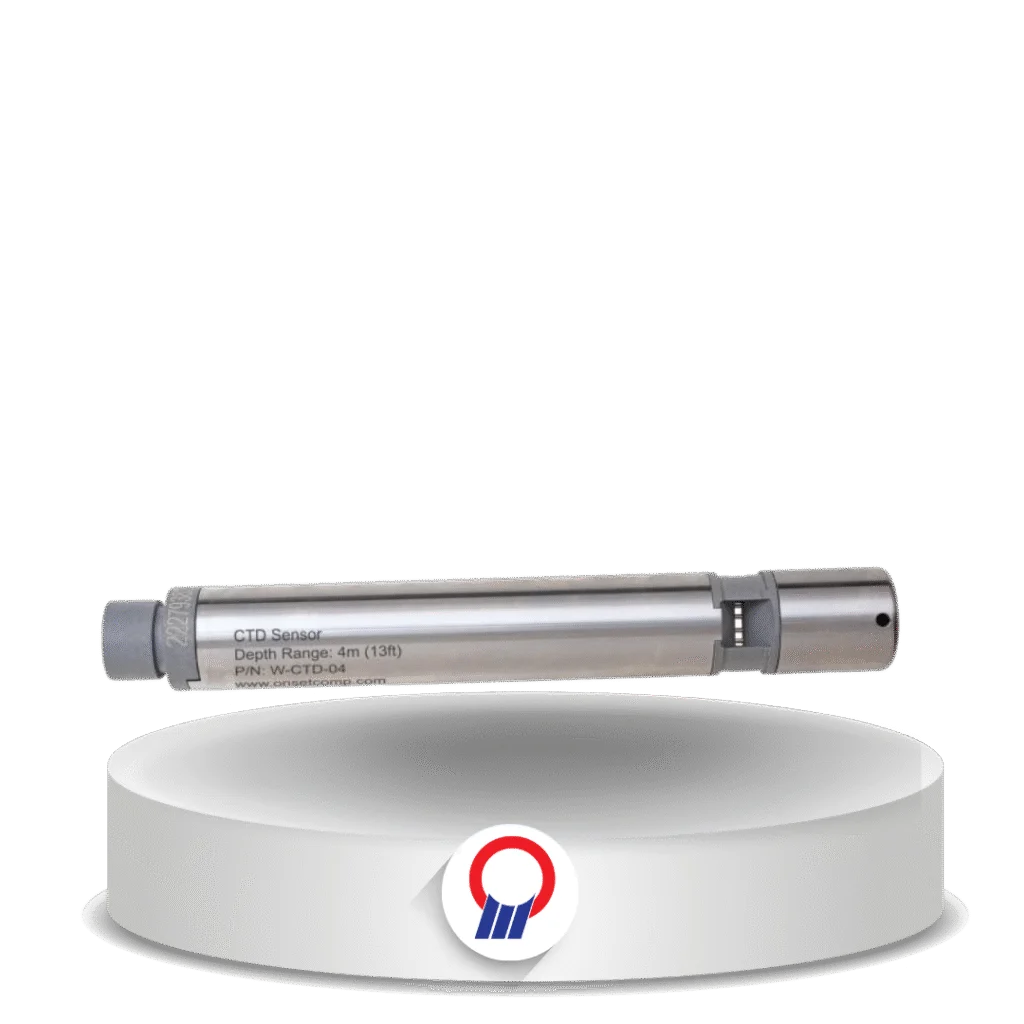

CTD Sensor W-CTD-xx
HOBO

CTD Sensor W-CTD-xx

Overview

Sensor konduktivitas, suhu, dan kedalaman (CTD) untuk logger HOBO MX800 Series, untuk air tawar maupun air laut. Tersedia dalam beberapa rentang kedalaman.

Fitur Utama

  • Mengukur konduktivitas (hingga 100.000 µS/cm), suhu, dan kedalaman

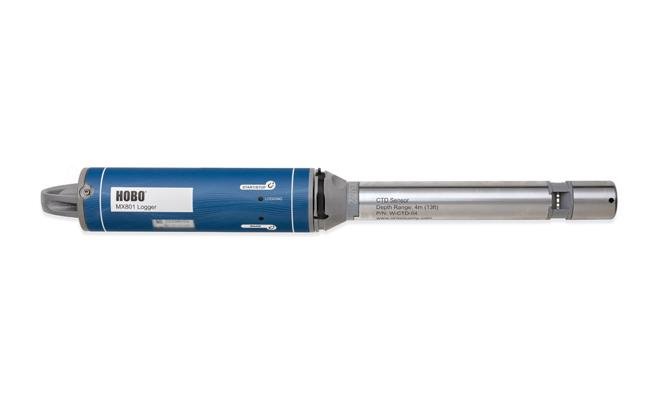

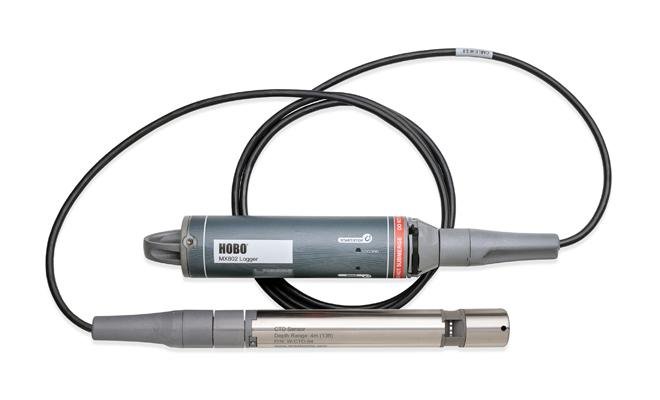

  • Dapat diganti-ganti pada logger MX800 (MX801 atau MX802)
  • Pilihan rentang kedalaman 4 m, 9 m, 30,6 m, dan 76,5 m
  • Salinitas dihitung dalam PSU
  • Panduan kalibrasi di aplikasi HOBOconnect
  • Dapat dipakai bersama sensor oksigen terlarut lewat adaptor dua sensor
Tanya via WhatsApp
Merk
HOBO
Kategori
Water Quality Logger

Spesifikasi & Penerapan

Aplikasi
Environment Oceanography

Detail Produk

Specification Value
Conductivity & Temperature
Conductivity Range 0 to 100,000 µS/cm
Accuracy ±2% or 15 µS/cm, whichever is greater; salinity ±2% of reading or 0.1 PSU
Resolution 0.1 µS/cm (0-1,000); 1 µS/cm (1,000-10,000); 10 µS/cm (10,000-100,000)
Temperature Range -20° to 50°C, non-freezing water
Temperature Accuracy ±0.15°C from 0° to 50°C
Temperature Resolution 0.01°C at 25°C
Pressure & Depth
W-CTD-01 0-207 kPa; 0-9 m (0-30 ft); typical ±0.05% FS (0.5 cm); resolution 0.21 cm
W-CTD-02 0-400 kPa; 0-30.6 m (0-100 ft); typical ±0.05% FS (1.5 cm); resolution 0.41 cm
W-CTD-03 0-850 kPa; 0-76.5 m (0-251 ft); typical ±0.05% FS (3.8 cm); resolution 0.87 cm
4 m (13 ft) version 0-145 kPa; typical ±0.075% FS (0.3 cm); resolution 0.14 cm
Raw Pressure Accuracy ±0.3% FS maximum error
